Description

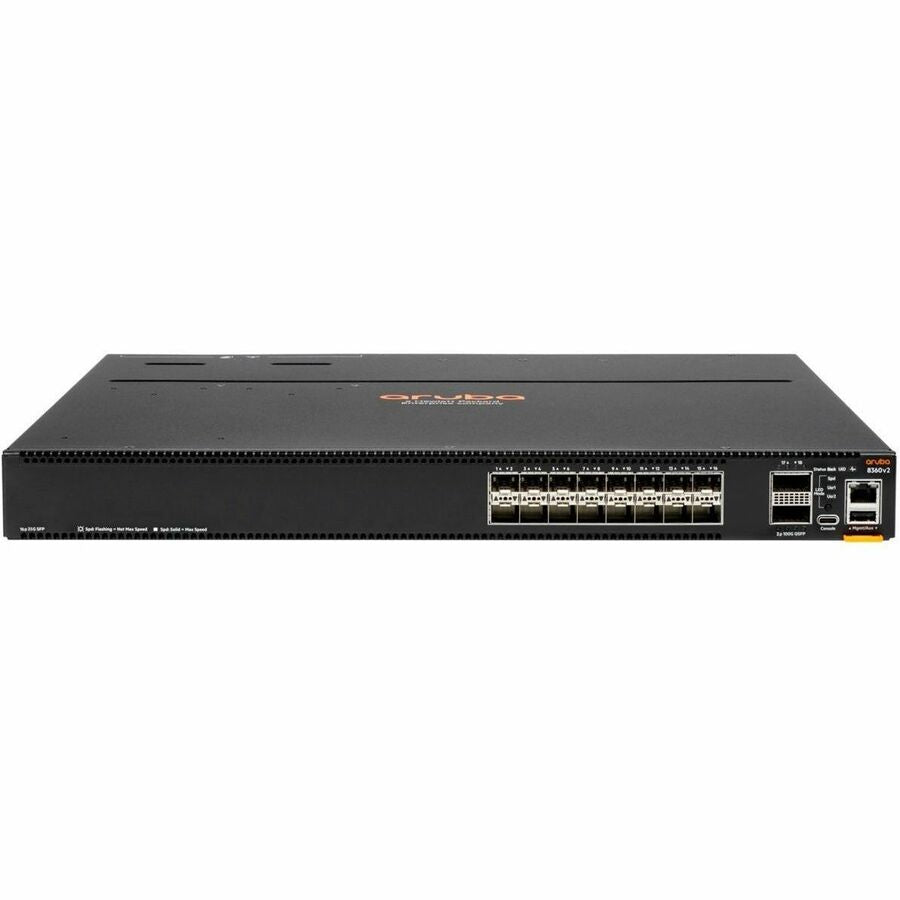

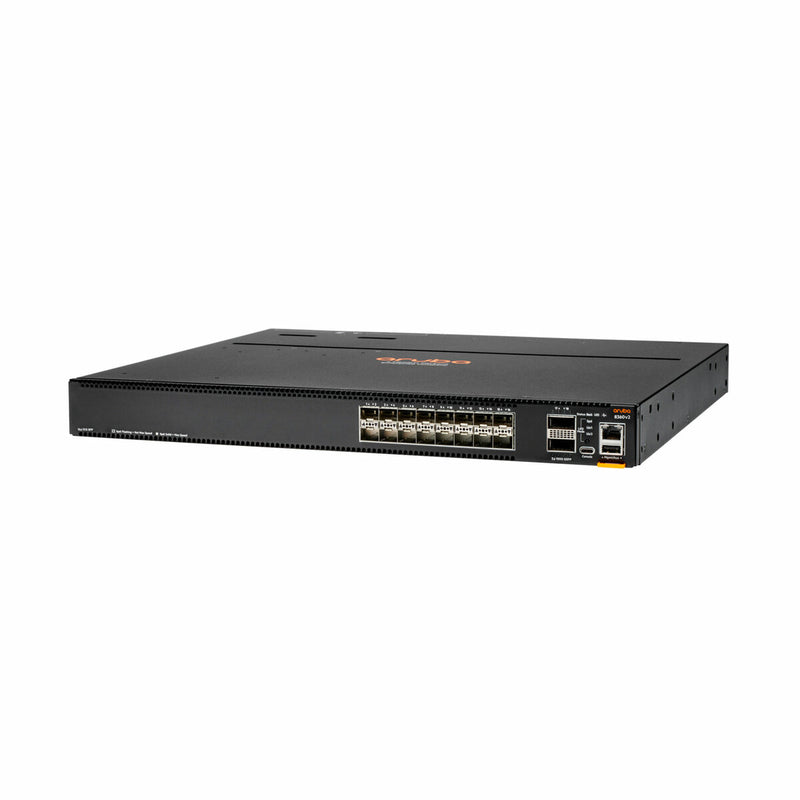

The HPE Aruba Networking CX 8360-16Y2C v2 is a high-performance, compact 1U switch designed to meet the demands of next-generation enterprise core, aggregation, and data center environments. With 16 SFP/SFP+/SFP28 ports supporting 1/10/25G and 2 QSFP+/QSFP28 uplinks for 40/100G, this switch delivers up to 4.8 Tbps switching capacity and 2,678 Mpps throughput.
The CX 8360 v2 Series offers enhanced security with MACsec encryption, supports Smart Rate ports, and features HPE Aruba Networking Network Analytics Engine (NAE) for intelligent monitoring and real-time insights. Built with AOS-CX, a cloud-native OS, it enables continuous state synchronization, automation, and fine-grained programmability with REST APIs and Python scripting.
This bundle includes 3 field-replaceable fans and 2 hot-swappable AC power supplies, ensuring high availability and redundancy. With support for HPE Aruba Networking Fabric Composer and VSX architecture, the CX 8360 v2 is purpose-built for modern hybrid cloud and data-intensive workloads.
| Specification | Details |
|---|---|
| Product Model | CX 8360-16Y2C v2 |
| Part Number | JL702C#B2C |
| Switching Capacity | Up to 4.8 Tbps |
| Throughput | Up to 2,678 Mpps |
| Ports | 16x SFP/SFP+/SFP28 (1/10/25G), 2x QSFP+/QSFP28 (40/100G) |
| MACsec Support | Yes (on select ports) |
| Smart Rate Support | Yes (1/2.5/5/10G – via transceivers) |
| CPU | 1.8 GHz quad-core 64-bit |
| Memory | 16 GB RAM, 32 GB Flash, 32 MB Packet Buffer |
| Routing Protocols | OSPF, OSPFv3, BGP-4, MP-BGP, RIP, RIPng, PBR, ECMP, GRE, MPLS |
| Management Ports | RJ45 Console, USB-C Console, RJ45 Mgmt, USB Type-A |
| Operating System | Aruba AOS-CX |
| Analytics & Automation | HPE Aruba Networking Network Analytics Engine (NAE), REST API, Python |
| Power Supply | 2x Field-replaceable AC PSUs (hot-swappable) |
| Power Consumption | Max: 325W / Idle: 110W |
| Heat Dissipation | 1,109 BTU/hr |
| Form Factor | 1U Rackmount |
| Dimensions (W x D x H) | 17.4 x 16.0 x 1.73 in |
| Weight | 17.00 lb |
