Description

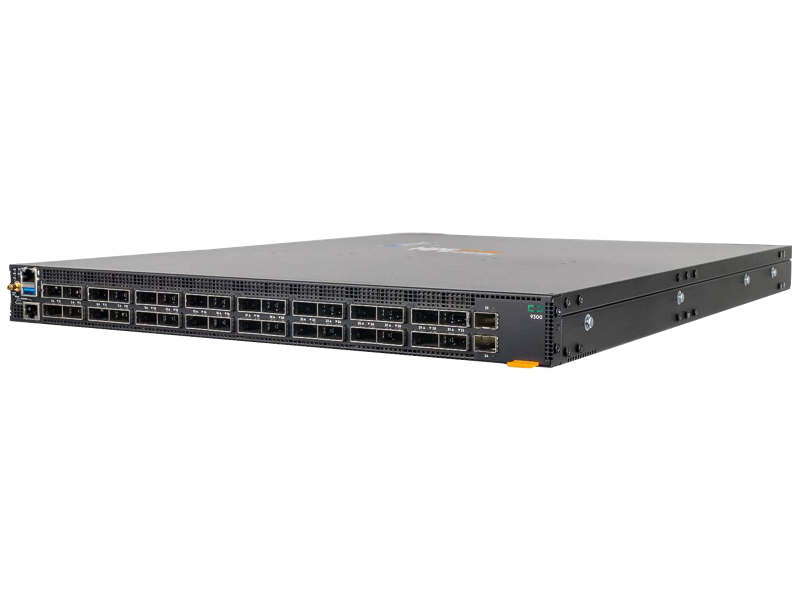

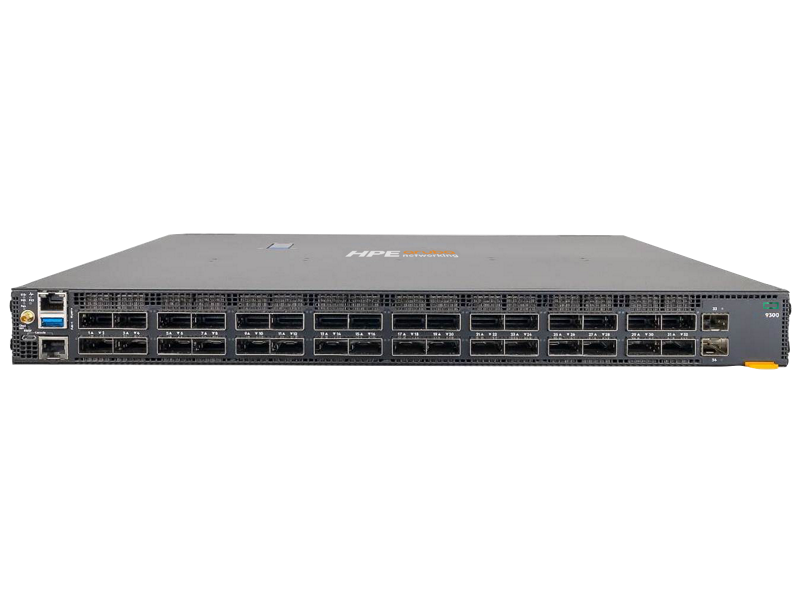

The HPE Aruba Networking CX 9300S (S0F87A) is a high-performance, 1U fixed switch bundle designed for scalable data centers and high-density server connectivity. Equipped with 32 QSFP28 ports for 100G and 8 QSFP-DD ports for 400G, this model enables flexible, cost-efficient server, storage, and intra-fabric connectivity using EVPN-VXLAN architectures.
Ideal for large-scale deployments, the CX 9300S supports up to 6,000 x 25G or 2,000 x 100G servers, and features intelligent analytics, breakout cabling, and low-latency performance for next-gen workloads like HCI and software-defined storage.

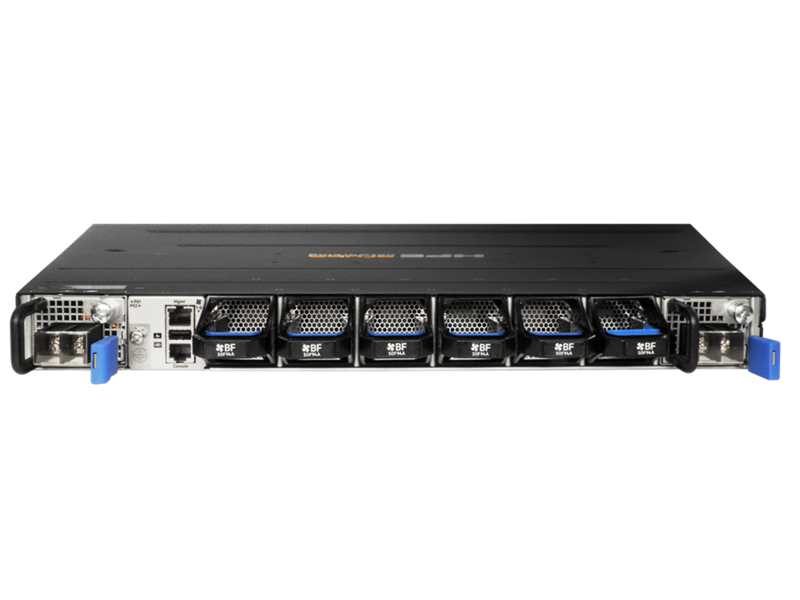

Bundled with 6 back-to-front fan trays and 2 DC power supplies, this TAA-compliant switch ensures optimal airflow, power efficiency, and robust operation for modern, mission-critical infrastructures.
| Specification | Details |
|---|---|
| Product Number | S0F87A |
| Switching Capacity | 25.6 Tbps |
| Forwarding Rate | 5 Bpps |
| Ports | 32x QSFP28 (100G), 8x QSFP-DD (400G) |
| Breakout Options | 1x400G: 4x100G / 2x200G / 1x400G; 100G: 4x25G |
| Transceiver Support | Up to 32x QSFP+/QSFP28, 8x QSFP-DD |
| Form Factor | 1U Fixed, Back-to-Front Airflow |
| Power Supply | 2x 850W DC (200–225VAC only, no open PS slots) |
| Fan Trays | 6x Back-to-Front fans (no open slots) |
| Management Ports | RJ-45 Console, RJ-45 OOBM, Micro USB |
| Memory & Storage | 32GB RAM, 128GB SSD, 4GB mSATA, 128MB SPI Flash |
| Processor | 1.7GHz CPU |
| Routing Protocols | Static (v4/v6), RIP/RIPng, OSPF/OSPFv3, BGP-4, MP-BGP, ECMP, EVPN-VXLAN |
| Power Consumption (Max/Idle) | 600–615W (Max), 210–221W (Idle) |
| Heat Dissipation | 4,435 BTU/hr (Max) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions (H x W x D) | 4.35 x 43.84 x 59 cm |
| Weight | 11.85 kg |
| Mounting Options | Includes 2-Post Rack Kit (4-Post optional) |
| TAA Compliant | Yes |
