Description

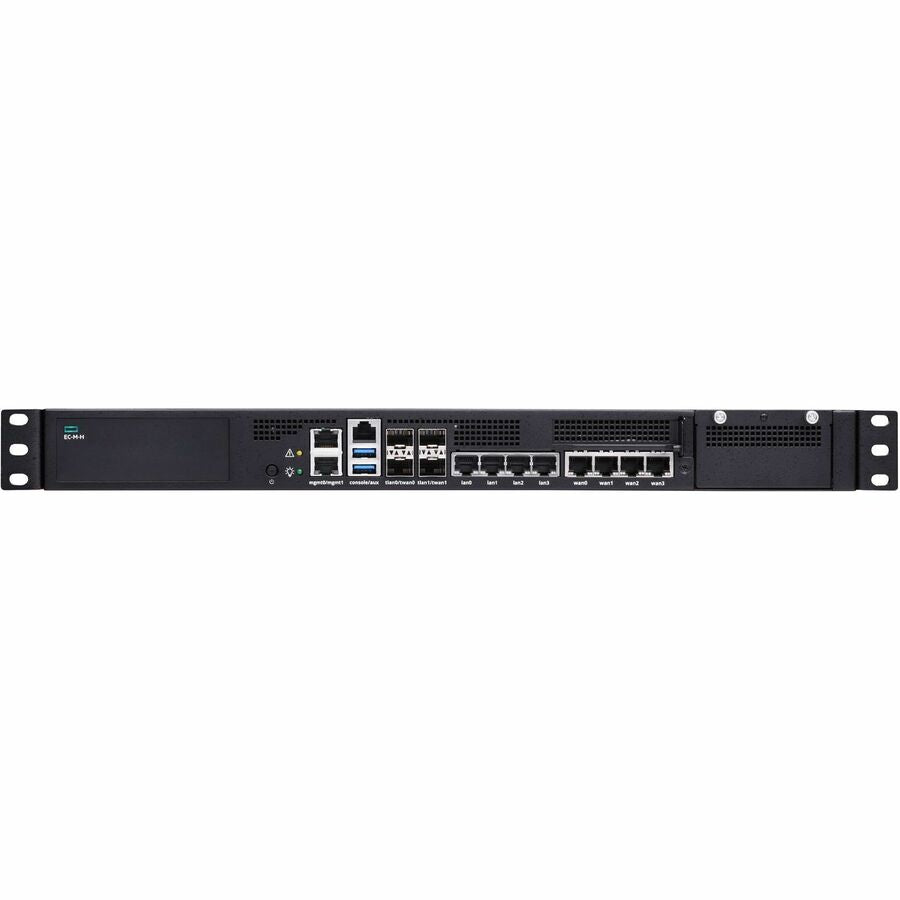

The HPE Aruba Networking EdgeConnect Medium-H (S3N75A) is a high-performance 1U SD-WAN gateway designed for data centers and large hub environments. Supporting up to 5 Gbps of WAN bandwidth, it enables secure, policy-driven routing over hybrid transport networks, including MPLS, broadband, and 5G.
Built to support Zero Trust and SASE frameworks, the EC-M-H integrates a next-gen firewall with IDS/IPS, advanced DDoS protection, and role-based segmentation. This appliance is equipped with 4x SFP+ 1/10Gbps ports, 8x RJ45 GbE ports, dual SSDs for storage redundancy, and dual power supplies to ensure continuous uptime.
The EdgeConnect SD-WAN solution simplifies WAN management through centralized orchestration, allowing seamless multi-cloud access, optimized application performance with AppExpress, and enhanced branch security — all without the complexity of installing agents on every device.
| Specification | Details |
|---|---|
| Product Number | S3N75A |
| Form Factor | 1U rack-mountable (with fixed rack ears, cage nuts, and screws) |
| WAN Bandwidth Capacity | 50 Mbps to 5 Gbps (bidirectional) |
| WAN Optimization (Boost) | Up to 1 Gbps |
| Simultaneous Connections | Up to 2,000,000 |
| Installed Storage | 2x 480 GB SSDs |
| Power Supply | Dual AC PSU (100–240 VAC input) |
| Power Consumption | 153W / 522 BTU/hr |
| Ethernet Ports | 8x 10/100/1000BASE-T (4 LAN / 4 WAN) |
| SFP+ Ports | 4x 1/10Gbps (SFP/SFP+ transceivers supported) |
| Management Ports | 2x 10/100/1000 Mbps, 1x Console port |
| Network Encryption | IPSec 256-bit AES (data plane), TLS 1.2 (management plane) |
| Disk Encryption | 128-bit AES |
| Routing Protocols | BGP, OSPF |
| Redundancy | WAN link bonding, LAN-side VRRP, BGP failover |
| Regulatory Compliance | FCC Part 15 Class A, EN 55022/24, EN 61000-3, UL/IEC 60950/62368 |
| Key Software Features | Adaptive DDoS, SWG, Zero Trust, AppExpress, role-based segmentation |
| Use Case | Data centers, regional hubs, SD-Branch, SASE deployments |
