Description

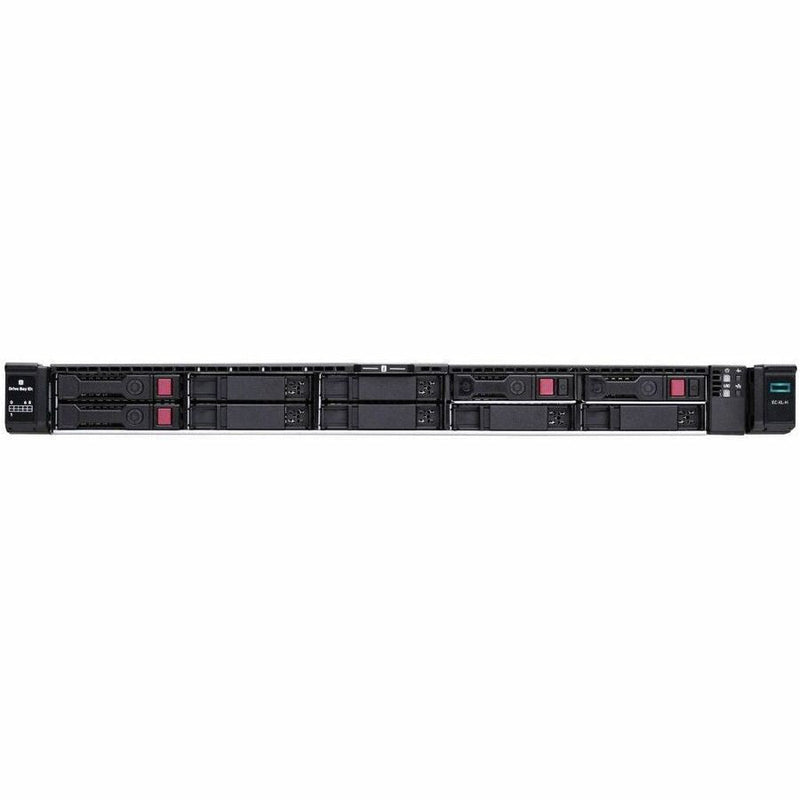

The HPE Aruba Networking EdgeConnect Extra Large-H (S3N77A) is a high-performance 1U SD-WAN gateway designed for large hub and data center environments with bandwidth demands of 2–10 Gbps. Equipped with 6x SFP28 ports, dual SSDs, dual NVMe drives, and dual power supplies, this robust platform delivers resilient WAN connectivity with performance and storage redundancy.
Built for Zero Touch Provisioning and managed via HPE Aruba Networking Central, it offers business-driven SD-WAN capabilities including application-aware routing, path conditioning, and WAN optimization. The integrated next-generation firewall supports IDS/IPS, adaptive DDoS protection, disk encryption, and Zero Trust security.
Ideal for enterprises adopting SASE frameworks, this gateway supports seamless integration with HPE Aruba Networking SSE, multi-cloud routing, and policy-based segmentation, simplifying branch deployments while ensuring security, scalability, and performance.
| Specification | Details |
|---|---|
| Product Number | S3N77A |
| Form Factor | 1U rack-mountable |
| Ports | 6x 1/10/25 Gbps SFP+/SFP28 LAN/WAN |
| Management Interfaces | 2x 10/100/1000Base-T, Console port |
| Power Supplies | 2x Hot-swappable PSUs |
| Storage | 2x SSD (480GB), 2x NVMe (3.2TB) |
| WAN Bandwidth Capacity | 2–10 Gbps (bidirectional) |
| Recommended WAN Optimization | Up to 5 Gbps Boost |
| Simultaneous Connections | Up to 2,000,000 |
| Routing Protocols | BGP, OSPF |
| VLAN Support | Up to 64 802.1Q VLANs |
| Security Features | AES 128-bit Disk Encryption, IPSec 256-bit, TLS 1.2 |
| Firewall | Built-in Next-Gen Firewall with IDS/IPS, Adaptive DDoS |
| Cloud Integration | Multi-cloud support with secure local breakout |
| SASE Compatibility | Integrates with HPE Aruba Networking SSE |
| Power Consumption | 435W / 1484 BTU (JZ881A), 413W / 1409 BTU (S0B67A) |
| Certifications | EMC: FCC Part 15 Class A, EN 55022; Safety: EN 60950/62368, UL/cUL |
