Description

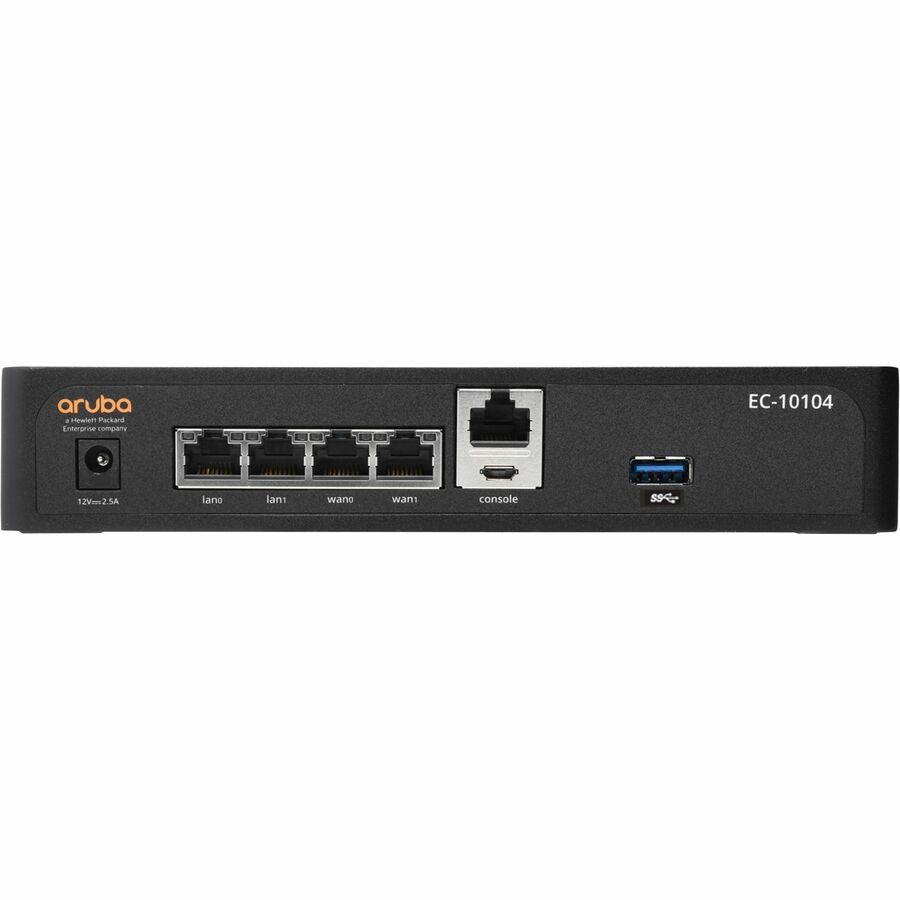

The HPE Aruba Networking EdgeConnect 10104 SD-WAN Gateway (S3N69A) is a compact, silent, and fanless edge device purpose-built for small branches or home offices. Delivering WAN bandwidth from 2 to 500 Mbps and up to 200 Mbps of WAN optimization (Boost), it supports MPLS, 4G/5G/LTE, and broadband internet for hybrid WAN deployments.
Designed for Zero Touch Provisioning, the 10104 enables seamless SD-WAN fabric creation, automated control plane management, and policy-based virtual segmentation through HPE Aruba Networking Orchestrator. It features four flexible RJ45 ports supporting LAN/WAN configurations, strong security (AES-128 disk and AES-256 IPSec encryption), integrated next-gen firewall with IDS/IPS, and adaptive DDoS protection. As part of HPE Aruba’s SASE framework, the 10104 enables secure, high-performance cloud and edge connectivity in a minimal form factor.
| Specification | Details |
|---|---|
| Product Number | S3N69A |
| Form Factor | Table-top, fanless appliance (NAL Compliant – China Deployment Only) |
| Ports | 4 x 10/100/1000 RJ45 (LAN/WAN), 1 x USB 3.0, Console: RJ45 + microUSB |
| WAN Bandwidth Capacity | 2 to 500 Mbps (bidirectional) |
| WAN Optimization (Boost) | Up to 200 Mbps |
| Simultaneous Connections | 256,000 |
| Routing Support | BGP, OSPF |
| VLAN Support | Up to 64 802.1q VLANs |
| Security Features | Disk: AES-128 encryption; Network: IPSec AES-256, IDS/IPS, DDoS Protection |
| SD-WAN Features | Business Intent Overlays, tunnel bonding, AppExpress, Zero Trust-ready |
| Management | Aruba Central and EdgeConnect Orchestrator |
| Power Input | 100–240 VAC, includes external power adapter |
| Power Consumption | 48 W / 163.78 BTU |
| Regulatory Compliance | FCC, CE, VCCI, CISPR, EN55032, EN62368-1, UL62368-1, CSA C22.2 |
| Dimensions (HxWxD) | 1U Height (Exact dimensions not specified) |
| Operating Temperature | Not specified in datasheet |
| Included in Package | 1 x Power Adapter, 1 x Power Cord, Wall Mount, Rubber Feet |
| Warranty | Refer to HPE warranty duration guide |
