Description

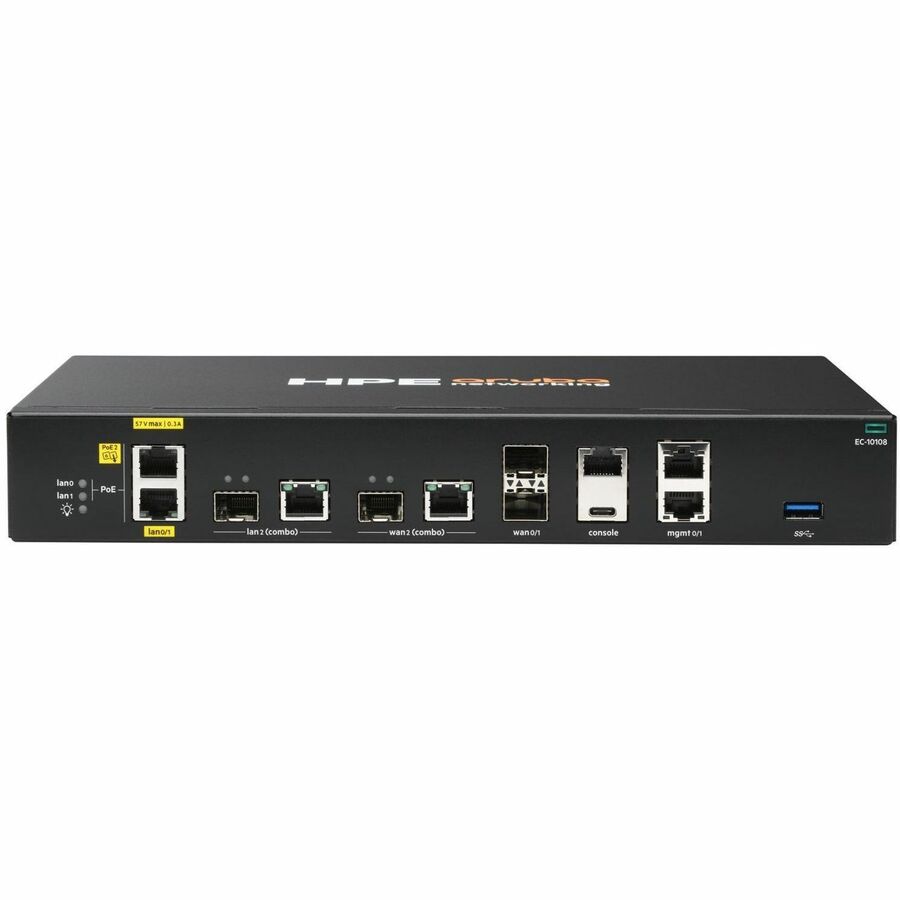

The HPE Aruba Networking EdgeConnect 10108 is a compact, high-performance SD-WAN gateway purpose-built for small branch and remote offices. Supporting hybrid WAN transport including MPLS, internet, and 5G, this gateway streamlines operations and accelerates secure cloud and on-premises application delivery.
Integrated with next-generation firewall capabilities, IPS/IDS, role-based segmentation, and WAN optimization up to 500 Mbps, the EC-10108 offers a reliable and cost-effective foundation for Zero Trust and SASE frameworks. It features six flexible ports, including PoE-enabled RJ45, combo ports, and SFP+ fiber uplinks—all managed via the HPE Aruba Networking Orchestrator.
| Specification | Details |
|---|---|
| Product Number | S0E23A |
| Form Factor | Tabletop appliance (1U height) |
| WAN Capacity | 2 to 2000 Mbps (bidirectional) |
| Recommended WAN Optimization | Up to 500 Mbps |
| Simultaneous Connections | 256,000 |
| PoE Ports | 2 × 10/100/1000 RJ45 with PoE (up to 60W) |
| Combo Ports | 2 × 1G Combo (RJ45/SFP) |
| SFP+ Ports | 2 × 1G/10G SFP+ |
| Management Ports | 2 × RJ45; 1 × RJ45 Console; 1 × USB-C Console; 1 × USB 3.0 Type-A |
| Network Features | Supports up to 128 VLANs; BGP, OSPF, IPSLA; VRRP; link bonding options |
| Security Features | AES-128 disk encryption, IPSec AES-256, built-in NGFW with IDS/IPS |
| Input Voltage | 100–240 VAC |
| Power Consumption | 165W |
| Mounting Options | Includes tabletop rubber feet, wall mount kit, rack mount kit |
| Certifications | EMC: FCC, EN, VCCI, CISPR; Safety: IEC/EN/UL/CSA 62368-1 compliant |
| Included Accessories | Power adapter, power cord, grounding cable, crossover adapter |
| Warranty | Refer to HPE warranty duration guide |
