Description

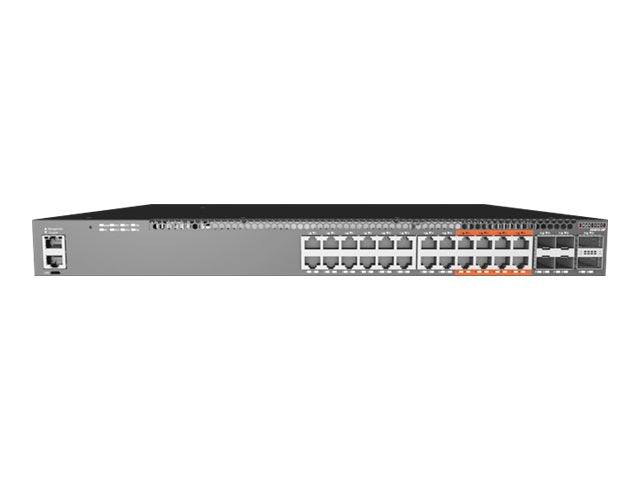

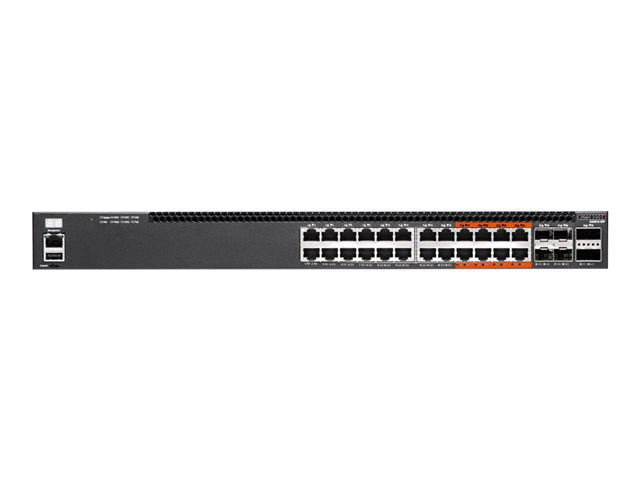

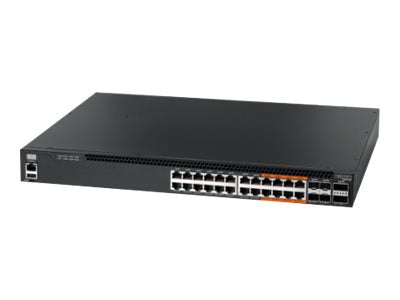

The Edgecore AS4610-30P is a high-performance Layer 3 Gigabit Ethernet switch designed for campus and enterprise networks. This managed switch delivers full Layer 2 and Layer 3 functionality, offering advanced management, security, and stacking features. With 24 PoE+ Gigabit ports—including 8 UPoE ports supporting up to 60W per port—the AS4610-30P provides power and data to devices such as VoIP phones, wireless access points, and surveillance cameras over existing Cat 5 cabling.
Engineered for flexibility and reliability, this switch supports redundant hot-swappable power supplies, front-to-back airflow, and high PoE power budget up to 960W. Ideal for scalable campus deployment or as a core switch in smaller networks, the AS4610-30P ensures seamless integration, energy efficiency, and dependable uptime.
| Category | Specification |
|---|---|
| Device Type | Managed Gigabit Ethernet Switch – 24 Ports |
| Enclosure Type | 1U Rack-Mountable, Front-to-Back Airflow |
| Ports | 16 x 10/100/1000 (PoE) + 8 x 10/100/1000 (UPoE) + 4 x 10G SFP+ |
| Subtype | Gigabit Ethernet |
| PoE Support | IEEE 802.3af / 802.3at / UPoE (up to 60W per port) |
| PoE Budget | 960 W |
| Switching Capacity | 104 Gbps |
| Forwarding Performance | 156 Mpps |
| MAC Address Table Size | 96K entries |
| Jumbo Frame Support | 12 KB |
| Processor | ARM Cortex-A9, 1 GHz |
| Memory | 2 GB DDR3 SDRAM |
| Flash Memory | 8 GB |
| Expansion / Connectivity | 16 x RJ-45 PoE, 8 x RJ-45 UPoE, 4 x SFP+, 2 x QSFP+ stacking, 1 x console |

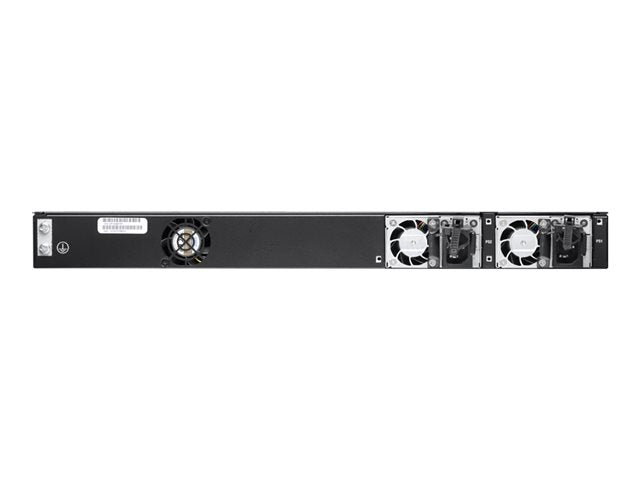

| Power Supply | Dual Internal Hot-Plug Power Supplies (1+1 Redundancy) |
| Voltage Required | 100–240 V AC, 50/60 Hz |
| Power Consumption (Operational) | 81.72 W |
| Certifications | FCC Class A, BSMI, CB, UL 60950-1, VCCI Class A, RoHS, WEEE |
| Dimensions (W x D x H) | 17.3 x 13.8 x 1.8 in |
| Weight | 13.27 lbs |
| Operating Temperature | 32°F – 113°F (0°C – 45°C) |
| Operating Humidity | 5 – 95% (non-condensing) |
| Warranty | 3-Year Limited Warranty |
| Localization | North America |
