Description

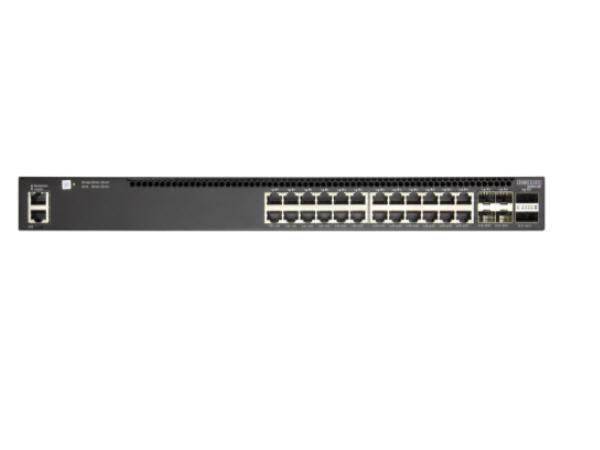

The Edgecore AS4610-30T is part of the Edgecore AS4610 Series — a family of high-performance Gigabit Ethernet Layer 3 switches designed for enterprise and campus networks. Featuring 24x 10/100/1000BASE-T ports, 4x 10G SFP+ uplink ports, and 2x 20G QSFP+ stacking ports, this switch delivers flexibility and scalability for network expansion. With advanced Layer 2 and Layer 3 capabilities, it supports a wide range of protocols including VLAN, QoS, STP/RSTP/MSTP, and VRRP for redundancy and performance optimization.
The AS4610-30T offers dual hot-swappable AC power supplies, redundant fan design, and full front-to-back airflow — ideal for high-availability environments. Designed with robust security and management features, including SSH, RADIUS, and SNMP v3, it provides dependable and secure network operations for campus and data center deployments.
| Category | Specification |
|---|---|
| General | |
| Device Type | Managed Stackable Switch - 30 Ports |
| Enclosure Type | 1U, Front-to-Back Airflow, Rack-Mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000BASE-T + 4 x 10G SFP+ + 2 x 20G QSFP+ (Stacking) |
| Performance | |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 156 Mpps |
| MAC Address Table | 96K Entries |
| Jumbo Frame | Up to 12 KB |
| Management & Security | |
| Remote Management | SNMP v1/v2/v3, RMON (1/2/3/9), CLI, SSH-2 |
| Authentication | RADIUS, TACACS+, Secure Shell (SSH2) |
| Supported Features | VLAN, IGMP Snooping, QoS, Port Mirroring, DiffServ, STP/RSTP/MSTP, LACP, LLDP, ACL, DHCP/BOOTP, VRRP, WFQ, WRED, sFlow, DCBX |
| Processor & Memory | |
| CPU | ARM Cortex-A9 1 GHz |
| RAM | 2 GB DDR3 |
| Flash Memory | 8 GB |
| Connectivity | |
| Interfaces | 24 x RJ-45 (1G), 4 x SFP+ (10G), 2 x QSFP+ (20G Stack), 1 x Console RJ-45, 1 x Management RJ-45, 1 x USB Type-A |
| Expansion Slots | 2 (Total) / 2 (Free) |
| Power | |
| Power Supply | Internal Hot-Pluggable (Dual AC) |
| Power Redundancy | Yes (1+1 Scheme) |
| Voltage | 120/230V AC (50/60 Hz) |
| Power Consumption | 100W (Operational) |
| Physical | |
| Dimensions (W x D x H) | 17.3 x 13.8 x 1.8 in |
| Weight | 11.38 lbs |
| Environmental | |
| Operating Temperature | 32°F – 113°F (0°C – 45°C) |
| Storage Temperature | -40°F – 158°F (-40°C – 70°C) |
| Humidity | 5% – 95% (Non-Condensing) |
| Compliance | |
| Standards | IEEE 802.3, 802.3u, 802.3z, 802.1Q, 802.1p, 802.3ab, 802.3ad (LACP), 802.1D, 802.1w, 802.1s, 802.1v, 802.1ab, 802.1Qbb, 802.1Qaz, 802.1Qau |
| Safety & EMC | UL, cUL, EN 60950, FCC Part 15A, VCCI Class A, RoHS |
| Warranty | |
| Service & Support | 3-Year Limited Replacement Warranty (Carry-In) |
