Description

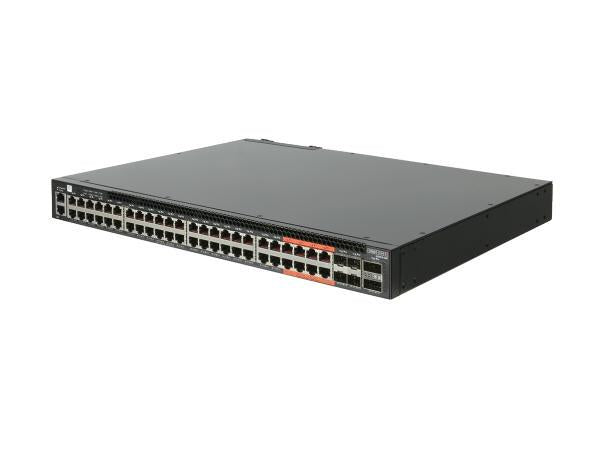

The Edgecore AS4610-54P is a high-performance Gigabit Ethernet Layer 3 managed PoE+ switch, engineered for modern enterprise and campus networks. Designed to power connected devices such as IP phones, wireless access points, and surveillance cameras, it delivers a total PoE budget of 1650W across 48 Gigabit PoE+ ports, ensuring optimal performance and simplified deployment using existing Cat 5/6 infrastructure.
With 4 x 10G SFP+ uplinks, the AS4610-54P enables high-speed connectivity for aggregation or uplink to core networks. Dual hot-swappable AC power supplies and front-to-back airflow ensure high availability and efficient cooling. Advanced Layer 2/3 features, robust security with RADIUS, TACACS+, and SSH2, and support for SNMP and sFlow monitoring make it a reliable solution for enterprise edge or wiring closet deployments.
Built with ARM Cortex-A9 1GHz processor, 2GB DDR3 memory, and 8GB flash, the AS4610-54P delivers wire-speed performance, scalability, and durability for business-critical networks.
| Category | Specification |
|---|---|
| Device Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch |
| Ports | 48 x 10/100/1000Base-T PoE+ RJ-45, 4 x 10G SFP+ uplink, 2 x 20G QSFP+ stacking |
| PoE Support | IEEE 802.3af/at/bt (UPOE), 1650W total power budget |
| Performance | 128 Gbps switching capacity; 191 Mpps forwarding rate |
| Processor | ARM Cortex-A9 1GHz |
| Memory | 2GB DDR3 SDRAM |
| Flash Memory | 8GB |
| MAC Address Table | 96K entries |
| Jumbo Frames | Up to 12KB |
| Management Interfaces | 1 x Console RJ-45, 1 x USB Type-A, 1 x Management RJ-45 |
| Remote Management | SNMP v1/v2/v3, SSH-2, RMON (1,2,3,9), CLI |
| Authentication | RADIUS, TACACS+, SSH2 |
| Advanced Features | VLAN, QoS, STP/RSTP/MSTP, VRRP, sFlow, LACP, ACLs, DCBX, DiffServ, CoS |
| Power Supply | Dual hot-swappable internal AC PSUs (1+1 redundancy) |
| Power Consumption | 99.1W typical |
| Dimensions (W x D x H) | 17.3 x 13.8 x 1.8 in |
| Weight | 14.02 lbs |
| Cooling | Front-to-back airflow |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 5%–95% non-condensing |
| Certifications | UL, cUL, EN55022 Class A, FCC Part 15A, RoHS, VCCI Class A |
| Warranty | 3-year limited replacement warranty |
