Description
The Edgecore AS4610-54T is a high-performance, Layer 3 Gigabit Ethernet switch designed for enterprise, campus, and data center environments requiring flexibility, reliability, and scalability.

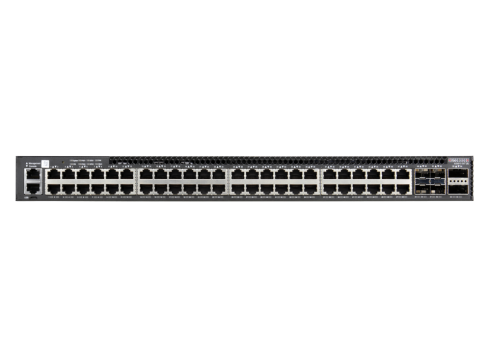

It provides 48x 10/100/1000BASE-T ports, 4x 10G SFP+ uplink ports, and 2x 20G QSFP+ stacking ports to deliver robust connectivity and efficient network aggregation.

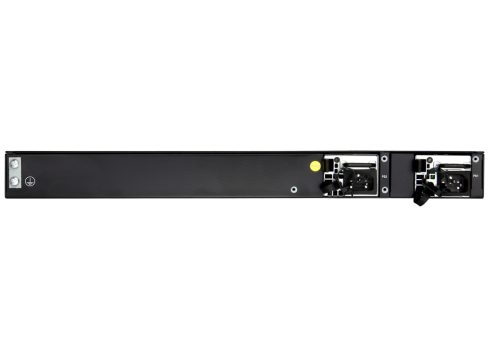

Built with redundant hot-swappable AC power supplies and power-to-port airflow, this open network switch ensures continuous operation and optimal cooling in high-density deployments.
The AS4610-54T comes pre-loaded with the Open Network Install Environment (ONIE), allowing seamless installation of compatible open-source and commercial network operating systems.
Perfect for top-of-rack or campus edge deployment, it offers line-rate L2/L3 switching, advanced manageability, and full compatibility with open networking ecosystems.
| Category | Specification |
|---|---|
| Model | Edgecore AS4610-54T |
| SKU | 4610-54T-O-AC-B-US |
| Form Factor | 1RU rack-mountable |
| Ports | 48 × 10/100/1000BASE-T RJ-45, 4 × 10G SFP+, 2 × 20G QSFP+ stacking |
| Management Ports | 1 × RJ-45 console, 1 × RJ-45 management, 1 × Micro-USB storage |
| Switching Capacity | 256 Gbps full duplex |
| Forwarding Rate | 190 Mpps |
| MAC Address Table | Up to 96K entries |
| VLAN IDs | 4K |
| Jumbo Frames | Up to 12 KB |
| CPU | Dual-core ARM Cortex-A9 1 GHz |
| Memory | 2 GB DDR3 ECC |
| Flash Storage | 8 MB SPI Flash, 32 GB eUSB |
| Airflow | Power-to-port |
| Power Supply | Dual hot-swappable, load-sharing AC PSUs (100-240 VAC, 50-60 Hz) |
| Operating Temperature | 0 °C – 45 °C |
| Dimensions (W×D×H) | 44 × 35 × 4.4 cm (17.32 × 13.78 × 1.77 in) |
| Weight | 5.38 kg (11.86 lb) |
| Compliance | CE, FCC, VCCI, BSMI, RoHS-6, UL, CB, TAA Compliant |
| Software Environment | Pre-loaded ONIE; supports open-source and commercial NOS options |
