Description

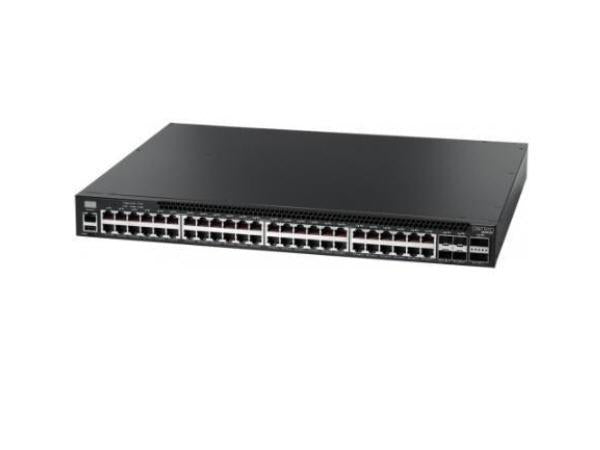

The Edgecore AS4610-54T is a high-performance, feature-rich Layer 3 Gigabit Ethernet switch designed to deliver scalability, reliability, and versatility for enterprise and data center applications. With 48 Gigabit RJ-45 ports, 4 SFP+ uplinks, and 2 QSFP+ stacking ports, the AS4610-54T provides flexible connectivity options and ensures seamless network expansion.
Built with a power-efficient and fan-less design, this switch operates quietly and efficiently in demanding environments. It supports advanced Layer 2 and Layer 3 features including VLANs, QoS, IGMP snooping, and VRRP, ensuring optimal traffic management and network resiliency.
Redundant hot-swappable AC power supplies and front-to-back airflow provide enhanced uptime and reliability, while a 128 Gbps switching capacity and 191 Mpps forwarding rate guarantee superior performance for high-bandwidth applications. The AS4610-54T is an ideal choice for data center top-of-rack deployments, enterprise aggregation, or high-performance IPMI switch configurations.
| Specification | Details |
|---|---|
| Product Type | Managed Layer 3 Gigabit Ethernet Switch |
| Total Ports | 54 Ports |
| Port Configuration | 48 x 10/100/1000 RJ-45, 4 x 10G SFP+, 2 x 40G QSFP+ (stacking) |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 191 Mpps |
| Routing Capacity | IPv4: 6,000 routes / IPv6: 12,000 routes |
| MAC Address Table | 96K entries |
| Jumbo Frame Support | Up to 12KB |
| Processor | ARM Cortex-A9 1GHz |
| Memory | 2GB DDR3 RAM, 8GB Flash |
| Airflow Design | Front-to-back |
| Cooling | Fan-less with dual hot-swappable fans |
| Power Supply | Dual hot-swappable AC PSUs (1+1 redundancy) |
| Power Consumption | 92.2W (operational) |
| Compliance | UL, cUL, FCC Part 15 A, EN55022 Class A, RoHS |
| Management Features | SNMP (v1/v2/v3), RMON, SSH, CLI, sFlow |
| Security | RADIUS, TACACS+, SSH2 |
| Supported Protocols | STP, RSTP, MSTP, VRRP, LACP, DCBX, IGMP, MLD Snooping |
| Dimensions (W x D x H) | 17.3 x 13.8 x 1.8 in |
| Weight | 11.86 lbs |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Humidity | 5%–95% non-condensing |
| Warranty | 3-Year Limited Warranty |
