Description

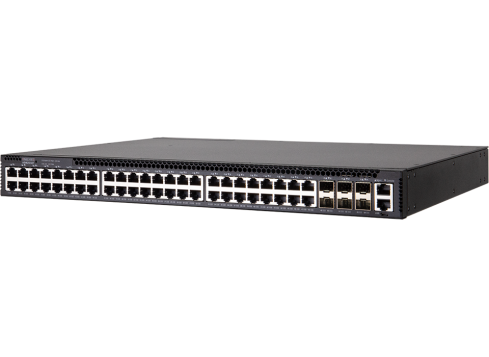

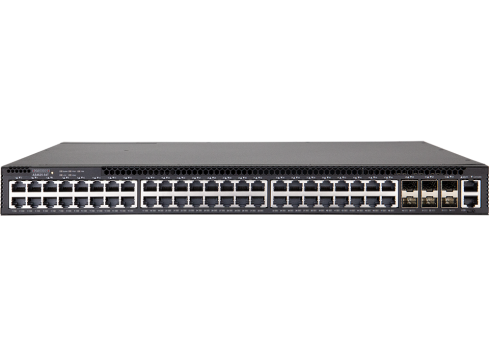

The Edgecore AS4625-54T-O-AC-B-US (EPS121) is an easy-to-use Gigabit Ethernet Layer 2 enterprise switch designed for management, data center, and campus access applications. It features 48× 10/100/1000BASE-T RJ-45 ports and 6× 1G/10G SFP+ uplink ports, delivering reliable, high-performance connectivity for server and storage management networks.
Powered by an Intel® Atom® C3508 4-core 1.6GHz x86 processor, this open networking switch supports ONIE (Open Network Install Environment) for flexible NOS installation, including open-source and commercial options. The unit offers dual hot-swappable 150W AC power supplies, redundant 2+1 fans, and back-to-front airflow for efficient cooling.
With its 216 Gbps switching capacity, 61.6 Mpps forwarding rate, and full line-rate L2/L3 performance, the AS4625-54T-O-AC-B-US delivers enterprise-class resiliency and flexibility. Ideal for data center management networks, enterprise access, and campus environments, it combines high reliability with open networking freedom.
| Category | Specification |
|---|---|
| Model | Edgecore AS4625-54T-O-AC-B-US (EPS121) |
| Switch Type | Layer 2/3 Gigabit Ethernet Enterprise Switch |
| Ports | 48 × 10/100/1000BASE-T RJ-45 ports6 × 1G/10G SFP+ uplink ports |
| Management Ports | 1 × RJ-45 console port1 × 100/1000BASE-T management port1 × Micro-USB storage port |
| Processor | Intel® Atom® COMe module C3508, 4-Core, 1.6GHz |
| Memory & Storage | 8 GB DDR4 SO-DIMM32 GB M.2 SSD16 Mb ×2 SPI FlashTPM 2.0 (Infineon SLB9670XQ2.0) |
| Switch Silicon | Broadcom BCM56277 (Trident III) |
| Performance | Switching Capacity: 216 GbpsForwarding Rate: 61.6 MppsMAC Addresses: 64K min / 112K maxVLAN IDs: 4KPacket Buffer: 4 MBJumbo Frames: up to 12,288 bytes |
| LAG / VRF / ECMP | 128 LAG groups (max 8 ports per group)VRF: 1KECMP: 256 groups, 1024 total members |
| L3 Features | IPv4 Hosts: 32KIPv6 Hosts: 16KMulticast Groups: 4K |

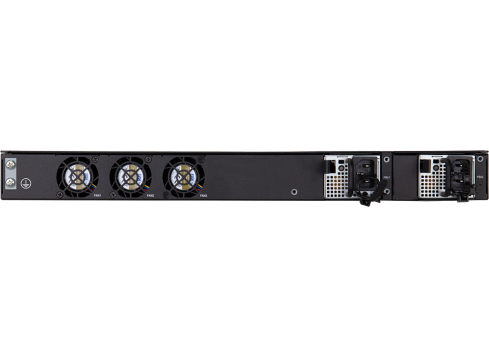

| Power Supply | Dual hot-swappable 150W AC PSUs (80Plus Platinum)Back-to-Front airflow |
| Power Consumption | Max: 93.5W<b |
