Description

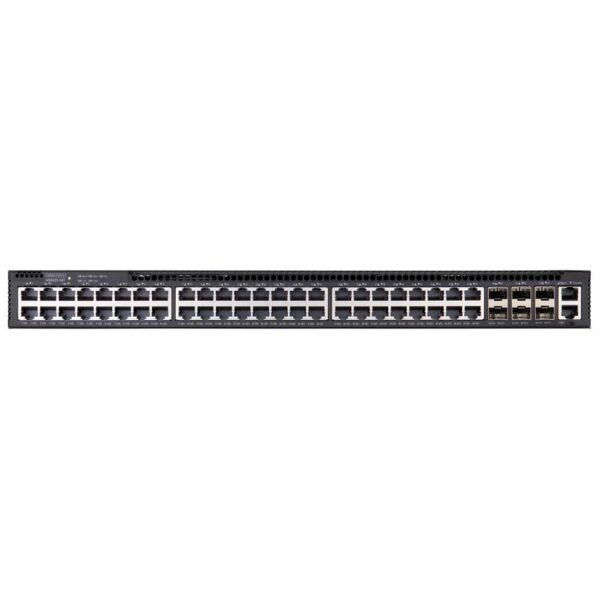

The Edgecore AS4625-54T-O-AC-F-US (EPS121) is an easy-to-use Gigabit Ethernet Layer 2 switch designed for data center management, enterprise access, and campus networking environments. Equipped with 48 × 10/100/1000BASE-T RJ-45 ports and 6 × 1G/10G SFP+ uplinks, it provides reliable connectivity for server nodes, storage nodes, and management networks.

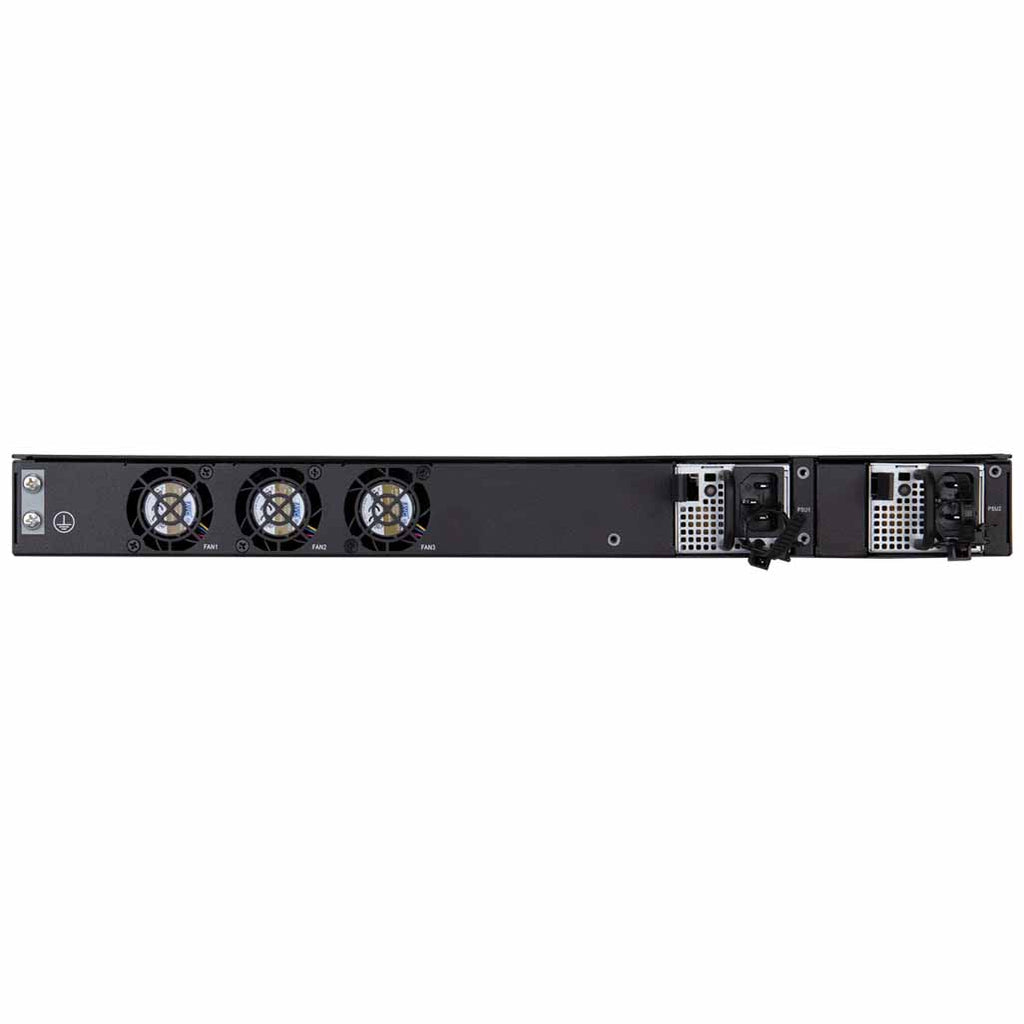

Powered by an Intel® Atom® C3508 4-core 1.6 GHz processor, the switch delivers robust performance with full line-rate Layer 2 and Layer 3 switching. Its redundant, hot-swappable 150 W AC power supplies and fixed 2 + 1 redundant fans ensure consistent uptime and cooling efficiency with port-to-power airflow.
Pre-loaded with the Open Network Install Environment (ONIE), the AS4625-54T supports the installation of various open-source and commercial network operating systems (NOS). This open networking platform offers flexibility, scalability, and cost efficiency for modern network infrastructures.
| Category | Specification |
|---|---|
| Model | Edgecore AS4625-54T-O-AC-F-US (EPS121) |
| Switch Type | Layer 2 Gigabit Ethernet Open Network Switch |
| Ports | 48 × 10/100/1000BASE-T RJ-45 ports6 × 1G/10G SFP+ uplink ports |
| Management Ports | 1 × RJ-45 console port1 × RJ-45 100/1000BASE-T management port1 × Micro-USB storage port |
| Processor | Intel® Atom® C3508 4-Core 1.6 GHz x86 processor |
| Memory / Storage | 8 GB DDR4 SO-DIMM RAM32 GB M.2 SSD MLC storage16 Mb × 2 SPI Flash |
| Switch Silicon | Broadcom BCM56277 Trident III (130 Gbps) |
| Performance | Switching Capacity: 108 GbpsForwarding Rate: 61.6 MppsMAC Addresses: 64K min / 112K maxVLAN IDs: 4KJumbo Frames: Up to 12,288 bytes |
| LAG / ECMP | 128 LAG groups (256 members max) / 256 ECMP groups |
| Fans / Cooling | Fixed 2 + 1 redundant fans with port-to-power airflow |
| Power Supply | Dual 1+1 redundant AC PSUs (150 W each, hot-swappable, 80Plus Platinum) |
| Power Consumption | Maximum 150 W |
| Dimensions (W×D×H) | 44 × 35.03 × 4.4 cm (17.32 × 13.79 × 1.73 in) |
| Weight | 5.8 kg (unit only), 7.5 kg (packaged) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Humidity | 5 % to 95 % (non-condensing) |
| Compliance & Safety | EN 55032 Class A, FCC Class A, UL 62368-1, EN 61000 series, VCCI, BSMI, CB, CCC |
| Software Environment | Pre-loaded with ONIE (compatible with open source and commercial NOS options) |
| Security | TPM 2.0 with SPI Interface, UEFI Secure Boot Support |
| Warranty | Limited hardware warranty (varies by region) |
