Description

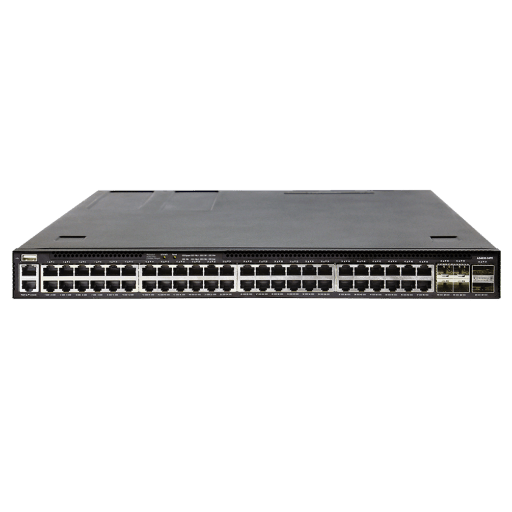

The Edgecore AS4630-54PE (EPS202) is a high-performance Gigabit Ethernet Layer 3 switch designed for enterprise and data center environments. It features 48 x 10/100/1000BASE-T ports with full IEEE 802.3at/bt Power-over-Ethernet (PoE++) support, providing up to 90W per port to power devices such as wireless access points, IP cameras, and VoIP phones. In addition, the switch includes 4 x 25G SFP28 uplink ports and 2 x 100G QSFP28 stacking ports, delivering scalability and flexibility for top-of-rack or campus aggregation applications.

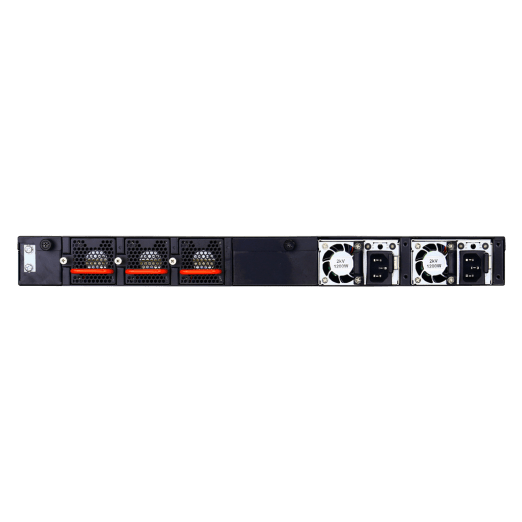

Powered by an Intel Atom C3558 4-core 2.2GHz processor and Broadcom Trident III ASIC, the AS4630-54PE delivers full line-rate Layer 2/3 switching with 960 Gbps switching capacity and 744 Mpps forwarding rate. It comes with dual hot-swappable AC power supplies and port-to-power airflow, ensuring high availability and efficient cooling.
Pre-loaded with the Open Network Install Environment (ONIE), the AS4630-54PE enables users to deploy a choice of open-source or commercial Network Operating Systems (NOS), providing a flexible and future-ready open networking platform for modern enterprise, hospitality, and industrial networks.
| Category | Specification |
|---|---|
| Model | Edgecore AS4630-54PE (EPS202) |
| Part Number | 4630-54PE-O-AC-F-US |
| Switch Type | Gigabit Ethernet Layer 3 PoE++ Switch |
| Switching Capacity | 960 Gbps full duplex |
| Forwarding Rate | 744 Mpps |
| Ports | 48 x 10/100/1000BASE-T (PoE++), 4 x 25G SFP28 uplinks, 2 x 100G QSFP28 stacking |
| PoE Power | IEEE 802.3at/bt compliant, up to 90W per port |
| Processor | Intel Atom C3558, 4-core 2.2GHz |
| Switch Silicon | Broadcom BCM56371 Trident III |
| Memory | 16 GB DDR4 (8 GB x 2 SO-DIMM) |
| Storage | 32 GB M.2 SSD, 16 MB x 2 SPI Flash |
| Airflow | Port-to-Power (Front-to-Back) |
| Power Supply | Dual AC, hot-swappable, load-sharing |
| Input Voltage | 100–240 VAC, 50–60 Hz |
| Power Consumption | Up to 1800W maximum |
| Switching Features | Layer 2/3 forwarding, VLANs (4K), jumbo frames up to 12,288 bytes |
| Management Interfaces | 1 x RJ-45 console, 1 x RJ-45 1G management port, 1 x USB Type-A |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions (W x D x H) | 43.8 x 44.2 x 4.37 cm (17.24 x 17.40 x 1.72 in) |
| Weight | 7.67 kg (16.91 lb) |
| Compliance | EN55032 Class A, FCC Part 15 Class A, VCCI Class A, UL, CB, RoHS 2.0 |
| Software Environment | ONIE preloaded; supports open-source and commercial NOS |
| Warranty | Limited hardware warranty (varies by region) |
