Description

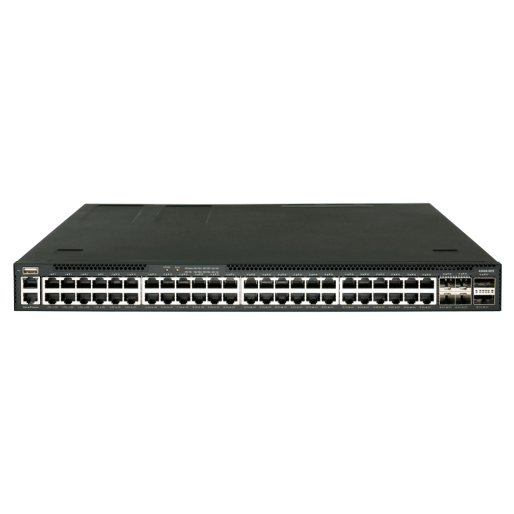

The Edgecore AS4630-54TE-O-AC-B-US is a high-performance Gigabit Ethernet Layer 3 switch designed for top-of-rack data center deployments, enterprise cores, or campus aggregation. Equipped with 48×1G RJ-45 ports, 4×25G SFP28 uplink ports, and 2×100G QSFP28 stacking ports, it delivers up to 960 Gbps switching capacity and 744 Mpps forwarding rate for full line-rate L2/L3 performance.
Powered by a Broadcom Trident III BCM56371 ASIC and Intel Atom C3558 quad-core processor, the AS4630-54TE ensures efficient packet processing with robust software flexibility. Pre-loaded with ONIE (Open Network Install Environment), it enables easy deployment of compatible open-source or commercial network operating systems such as Open Network Linux (ONL).

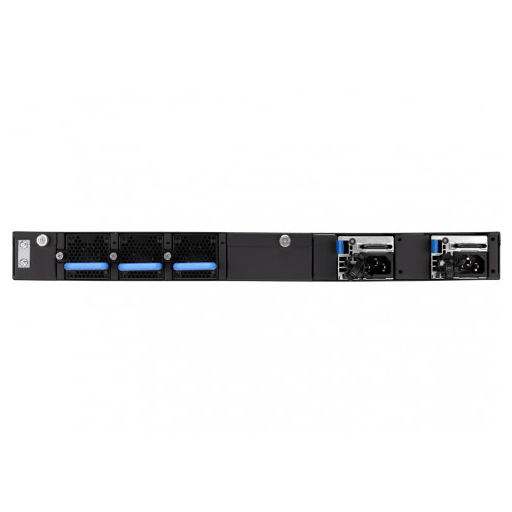

Redundant, hot-swappable dual AC power supplies and five power-to-port airflow fans provide reliability and thermal efficiency for continuous operation. Ideal for open networking environments, the AS4630-54TE offers a cost-effective, scalable solution for modern enterprise and data center infrastructures.
| Specification | Details |
|---|---|
| Model Number | AS4630-54TE-O-AC-B-US |
| Switch Type | Gigabit Ethernet Layer 3 Open Network Switch |
| CPU | Intel Atom C3558 4-core 2.2 GHz x86 |
| Switch ASIC | Broadcom BCM56371 Trident III |
| Memory | 16 GB DDR4 (2×8 GB SO-DIMM) |
| Storage | 32 GB M.2 SSD MLC; 16 MB × 2 SPI Flash |
| Ports | 48 × 100/1000BASE-T RJ-45, 4 × 25G SFP28 uplinks, 2 × 100G QSFP28 stacking ports |
| Management Ports | 1 × RJ-45 serial console, 1 × RJ-45 management port, 1 × USB Type-A storage port |
| Switching Capacity | 960 Gbps (full duplex) |
| Forwarding Rate | 744 Mpps |
| MAC Addresses | 16 K min / 112 K max |
| VLAN IDs | Up to 4 K |
| Jumbo Frames | Up to 12,288 bytes |
| Packet Buffer | 8 MB integrated |
| Power Supply | Dual redundant, hot-swappable AC PSUs (100–240 VAC, 50–60 Hz) |
| Power Consumption | Maximum 150 W |
| Airflow | Power-to-Port |
| Cooling | 2 + 1 redundant fans (hot-swappable) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | −40 °C to 70 °C (−40 °F to 158 °F) |
| Operating Humidity | 5 % to 95 % (non-condensing) |
| Dimensions (H × W × D) | 43.8 × 47.4 × 4.4 cm (1.73 × 18.66 × 17.24 in) |
| Weight | 6.98 kg (15.39 lb) with two PSUs |
| Software Environment | ONIE installer pre-loaded; compatible with ONL and OCP NOS offerings |
| Regulatory Compliance | FCC Class A, EN 55032, VCCI Class A, BSMI Class A, UL 62368-1, EN 60950-1 / 62368-1 |
| Warranty | 3-year limited hardware warranty (extendable via Edgecore service options) |
