Description

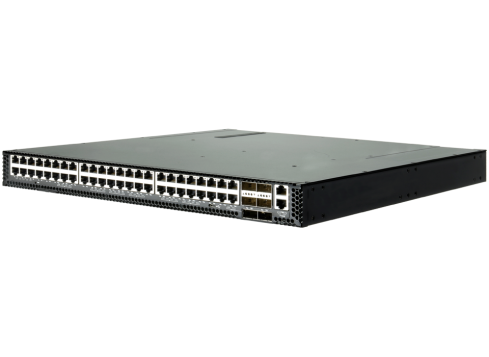

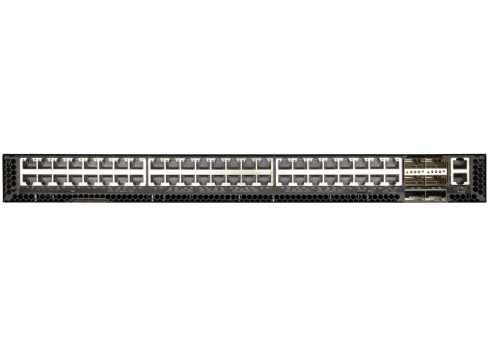

The Edgecore AS5812-54T-O-AC-B-US is a high-performance Layer 3 managed 10GbE switch designed for enterprise, carrier, and data center top-of-rack (TOR) or aggregation deployments. It features 48x 10GBASE-T ports and 6x 40G QSFP+ uplinks, delivering 1.44 Tbps switching capacity with full wire-speed performance.

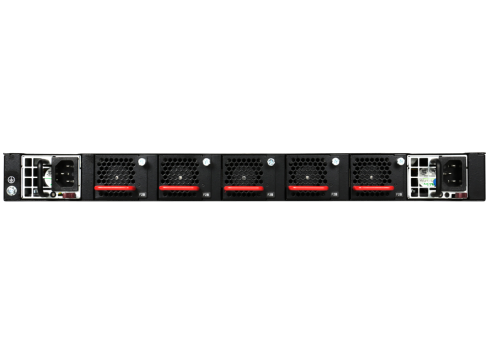

Built on the Open Network Install Environment (ONIE), this model supports various open network operating systems for flexible and scalable architectures. Equipped with dual hot-swappable AC power supplies and 4+1 redundant fans (back-to-front airflow), it ensures continuous uptime and service reliability.
With support for MLAG, advanced QoS, IPv6, OAM (802.1ag/Y.1731), and comprehensive Layer 2/3 features, the AS5812-54T provides carrier-grade performance and rich management options for modern cloud and enterprise networks.
| Category | Specification |
|---|---|
| Model | AS5812-54T-O-AC-B-US |
| Ports | 48 × 10GBASE-T, 6 × 40G QSFP+ uplinks |
| Switching Capacity | 1.44 Tbps |
| Forwarding Rate | 1 Bpps |
| CPU | Intel® Atom™ C2538 Quad-Core 2.4 GHz |
| Memory | 8 GB DDR3 SDRAM |
| Flash Storage | 32MB SPI NOR + 32GB mSATA |
| Packet Buffer | 16 MB |
| MAC Address Table | 104K entries |
| Jumbo Frames | 9 KB |
| Power Supply | Dual hot-swappable AC PSU (100-240V, 50/60Hz) |
| Airflow | Back-to-front (port-to-power) |
| Power Consumption | Max 384 W |
| Dimensions (W × D × H) | 44.3 × 47.3 × 4.34 cm (1RU) |
| Weight | 9.5 kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Certifications | FCC Class A, CE, UL, CB, RoHS, WEEE |
| Management | CLI, Web UI, SNMP v1/v2c/v3, SSH, SSL, sFlow, RMON |
| Advanced Features | MLAG, VRRP, PIM-SM/DM, IPv6, VXLAN, DCBx, QoS, IGMP Snooping, DHCP Snooping, ACLs |
| Software Environment | ONIE pre-loaded (open network ready) |
| Country/Region | North America (US Power Cord) |
