Description

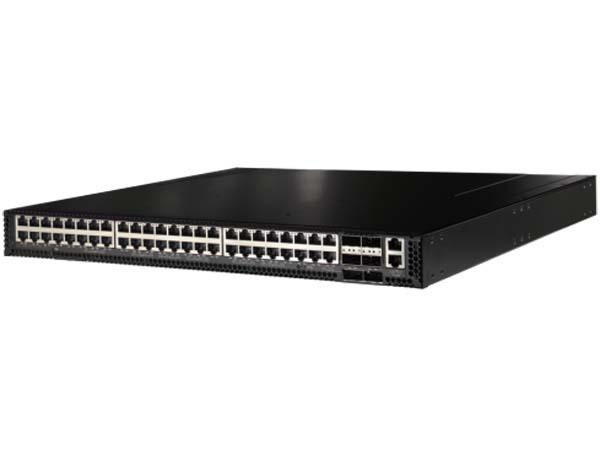

The Edgecore AS5812-54T-EC is a high-performance Top-of-Rack (ToR) switch engineered for enterprise and cloud data centers. It provides full line-rate Layer 2 and Layer 3 switching across 48 × 10GBASE-T copper ports and 6 × 40G QSFP+ uplinks, enabling seamless integration with high-speed aggregation networks. Powered by Broadcom’s Trident II chipset and an Intel Atom CPU, the AS5812-54T-EC delivers exceptional throughput, scalability, and programmability for modern network fabrics.
Equipped with redundant, hot-swappable dual AC power supplies and front-to-back (port-to-power) airflow, it ensures efficient cooling and reliable operation in rack-dense environments. Pre-loaded with the EdgeCOS network operating system, it supports advanced features such as VLANs, L3 routing, QoS, and IPv6 for carrier-grade deployments. The AS5812-54T-EC is an ideal choice for data centers seeking open, programmable, and cost-efficient 10/40 GbE networking solutions.
| Category | Specification |
|---|---|
| Model | Edgecore AS5812-54T-EC |
| Manufacturer Part Number | 5812-54T-EC-AC-F-US |
| Form Factor | 1U rack-mountable |
| Switch Type | Managed Layer 2/3 Top-of-Rack switch |
| Ports | 48 × 10GBASE-T (RJ-45) + 6 × 40G QSFP+ uplinks |
| Data Transfer Rate | 10 Gbps (per copper port), 40 Gbps (per uplink) |
| Total Switching Capacity | 1.28 Tbps |
| Forwarding Rate | 960 Mpps |
| CPU | Intel Atom C2538 |
| Chipset | Broadcom Trident II |
| Airflow Direction | Port-to-Power (Front-to-Back) |
| Power Supply Units | Dual AC, hot-swappable |
| Operating System | EdgeCOS |
| Layer Support | L2 / L3 |
| Cabling Support | Cat 6 / Cat 6A / Cat 7 twisted-pair |
| MAC Address Table | 288 K entries |
| Jumbo Frame Support | Up to 9216 bytes |
| Features | VXLAN/NVGRE tunneling, QoS, IPv4/IPv6 routing, Redundant fans |
| TAA Compliance | Inquire |
| Country of Origin (COO) | Inquire |
| UNSPSC | 43222612 |
| Weight | 19 lbs |
| Warranty | 3-Year Limited Hardware Warranty |
