Description

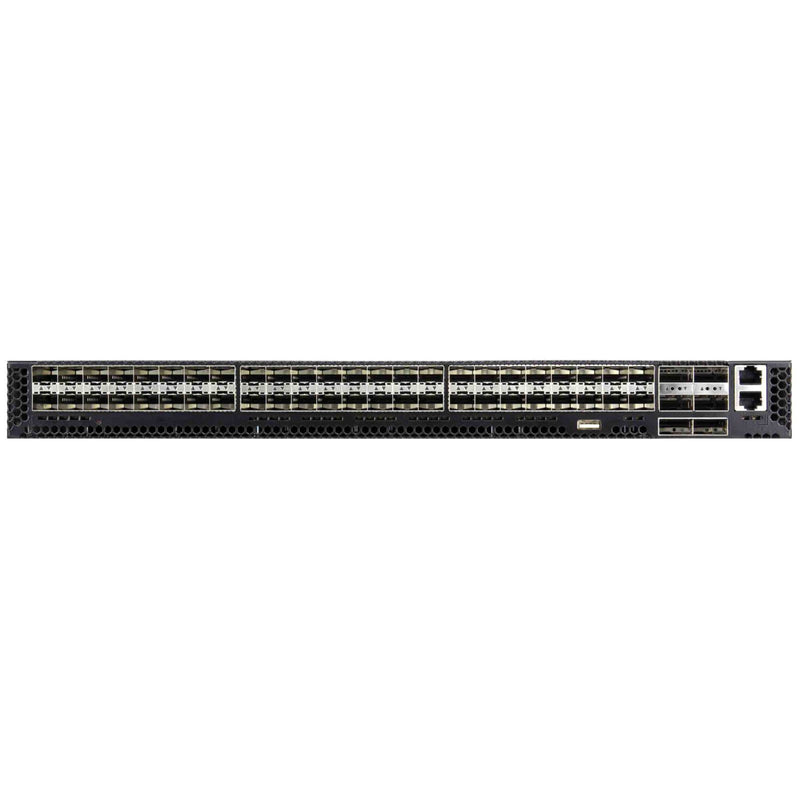

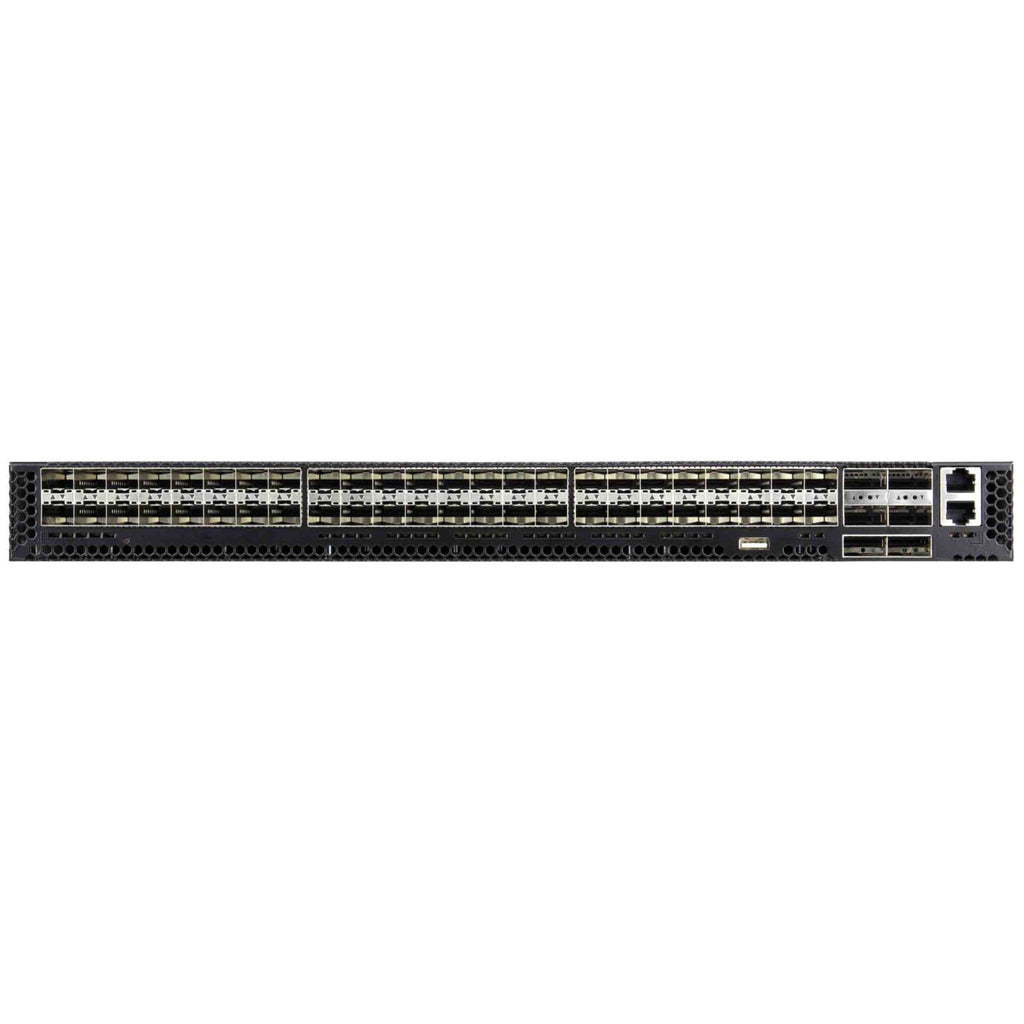

The Edgecore AS5912-54X (AGR100) Aggregation Router delivers high-performance Layer 2 and Layer 3 switching designed for modern cloud data centers and carrier aggregation networks. Equipped with 48 x 10G SFP+ ports and 6 x 100G QSFP28 uplinks, it provides an 800 Gbps switching capacity with a non-blocking architecture suitable for top-of-rack (ToR) or distributed spine deployments.

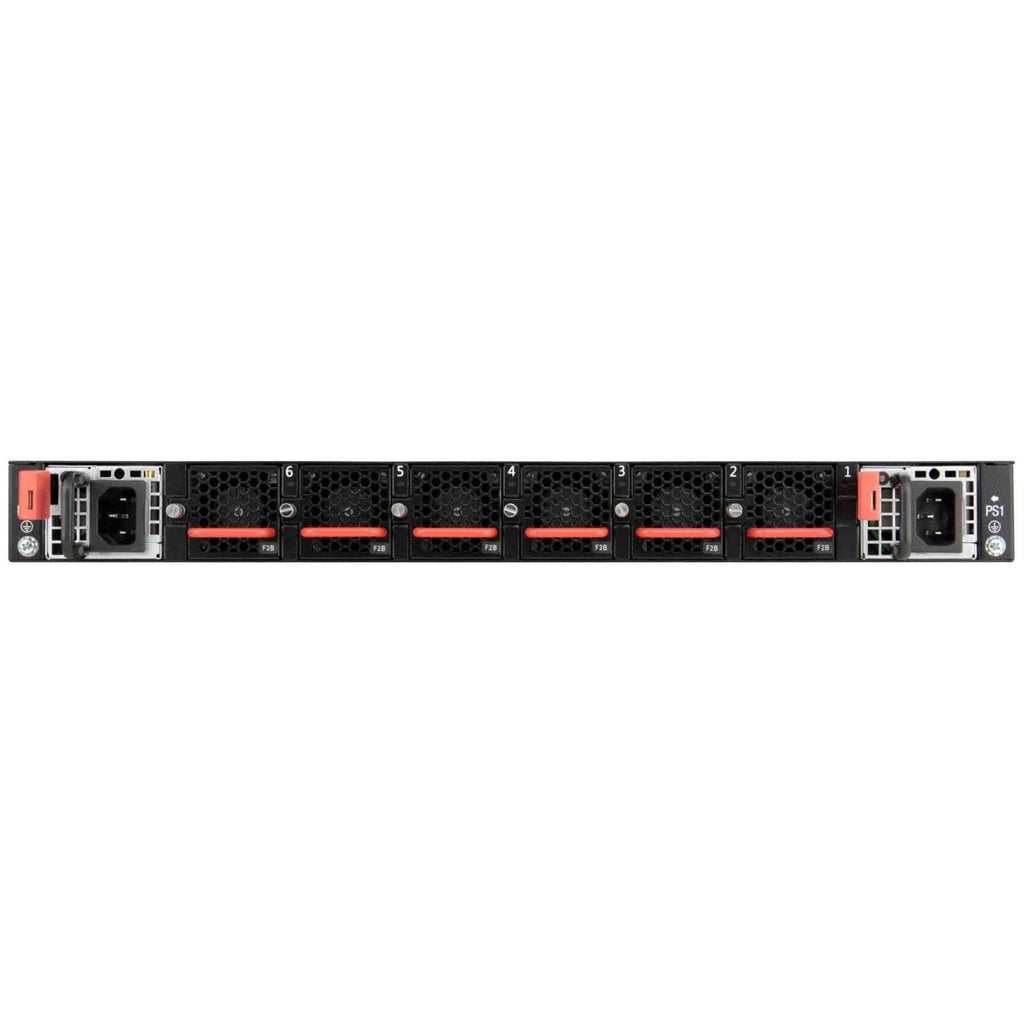

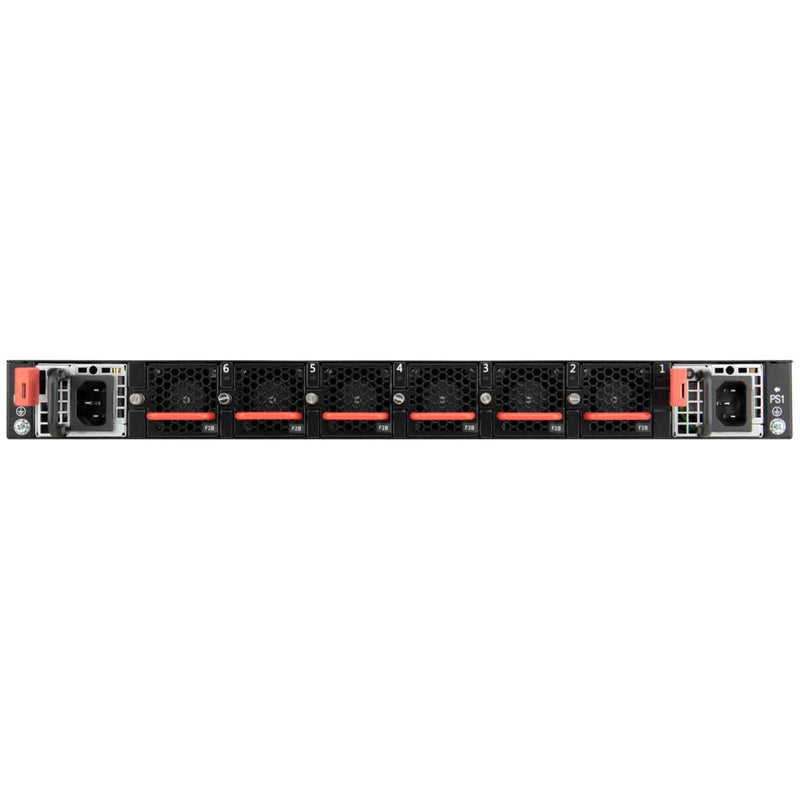

Powered by the Broadcom Qumran MX BCM88370 chipset and an Intel Atom C2538 CPU, the AS5912-54X offers exceptional packet buffering (6 GB DRAM + 16 MB on-chip) and supports the Open Network Install Environment (ONIE) for flexible NOS installations such as Open Network Linux (ONL). The switch includes dual -48V DC hot-swappable PSUs, 5+1 redundant fans, and port-to-power airflow, ensuring reliability and serviceability for carrier-grade environments.
Ideal for organizations seeking an open, carrier-ready aggregation platform that meets NEBS Level 1, RoHS 2.0, and WEEE compliance standards.
| Category | Specification |
|---|---|
| Model | AS5912-54X (AGR100) |
| Manufacturer Part Number | 5912-54X-O-48V-F |
| Form Factor | 1U rack-mountable |
| Switching Capacity | 800 Gbps |
| Forwarding Rate | 720 Mpps |
| CPU | Intel Atom C2538 (4-core 2.4 GHz) |
| Memory | 16 GB DDR3 (8 GB × 2 SO-DIMM) |
| Storage | 32 GB mSATA |
| Switch Silicon | Broadcom Qumran MX BCM88370 |
| Ports | 48 × SFP+ (1G/10G) • 6 × QSFP28 (40/100G) |
| Management Interfaces | 1 × RJ-45 console, 1 × RJ-45 1G management, 1 × USB Type-A |
| Packet Buffer | 16 MB on-chip + 6 GB DRAM |
| Jumbo Frame | Up to 9 KB |
| Airflow Direction | Port-to-Power |
| Power Supply | Dual -48 V DC PSUs, hot-swappable, load-sharing |
| Power Range | -36 V to -72 V DC |
| Fan Modules | 5 + 1 redundant hot-swappable |
| Dimensions (W × D × H) | 440 × 548 × 44 mm (17.32 × 21.57 × 1.73 in) |
| Weight | 9.34 kg (20.59 lb) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 5 % to 95 % (non-condensing) |
| Compliance | NEBS Level 1, CE, FCC Class A, UL/CUL, VCCI A, BSMI, RoHS 2.0, WEEE |
| Software Environment | ONIE installer pre-loaded; supports Open Network Linux (ONL) |
| Use Case | Data Center Top-of-Rack or Carrier Aggregation Switch |
| Warranty | Standard Edgecore Limited Warranty (3 years RTF, region-specific) |
