Description

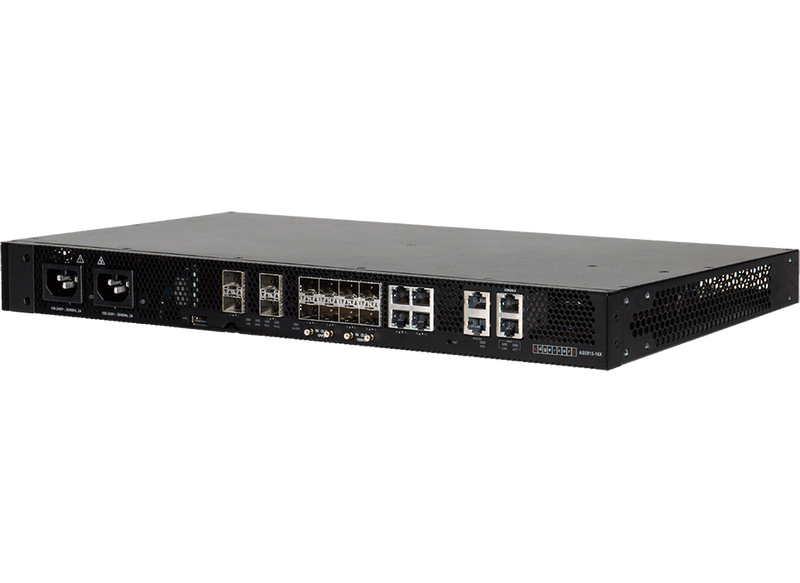

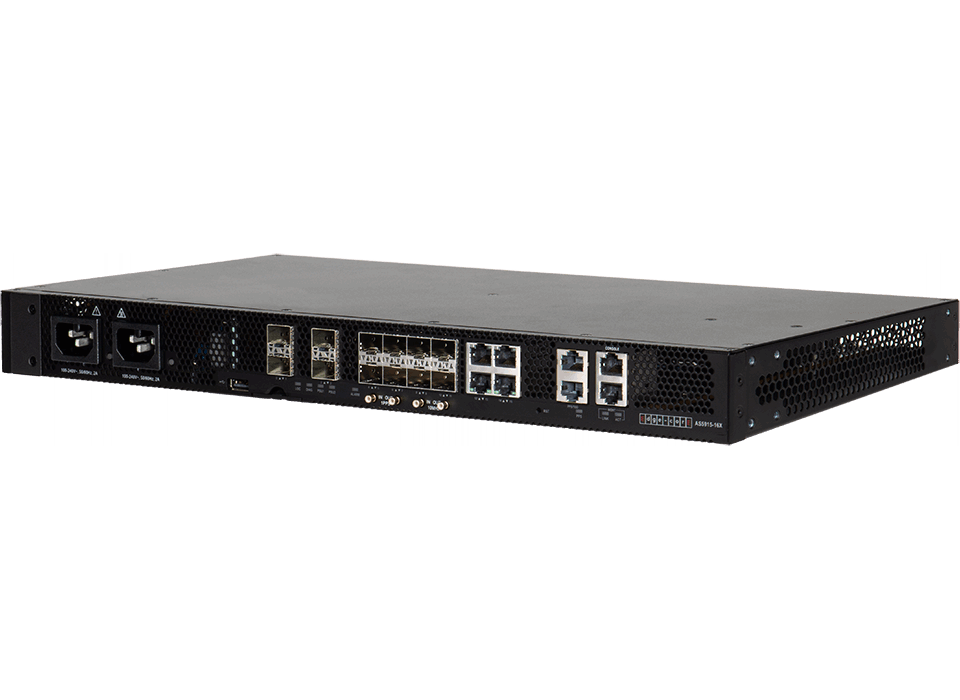

The Edgecore AS5915-16X-O-48V-PC is a compact, temperature-hardened cell site router designed for LTE and 5G mobile backhaul applications. Built on Broadcom’s Qumran-UX switch silicon and powered by an Intel® Atom C3308 dual-core processor, it delivers robust Layer 2 and Layer 3 forwarding with a switching capacity of 32 Gbps and packet throughput of 125 Mpps.

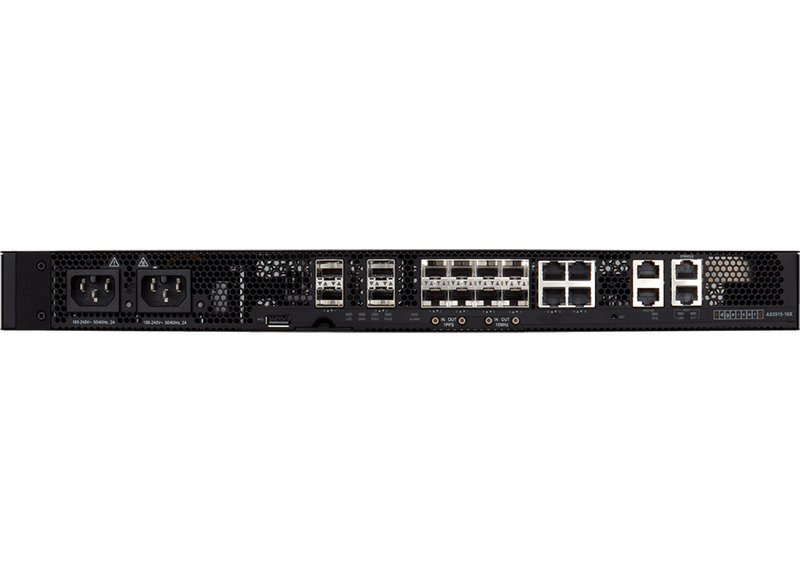

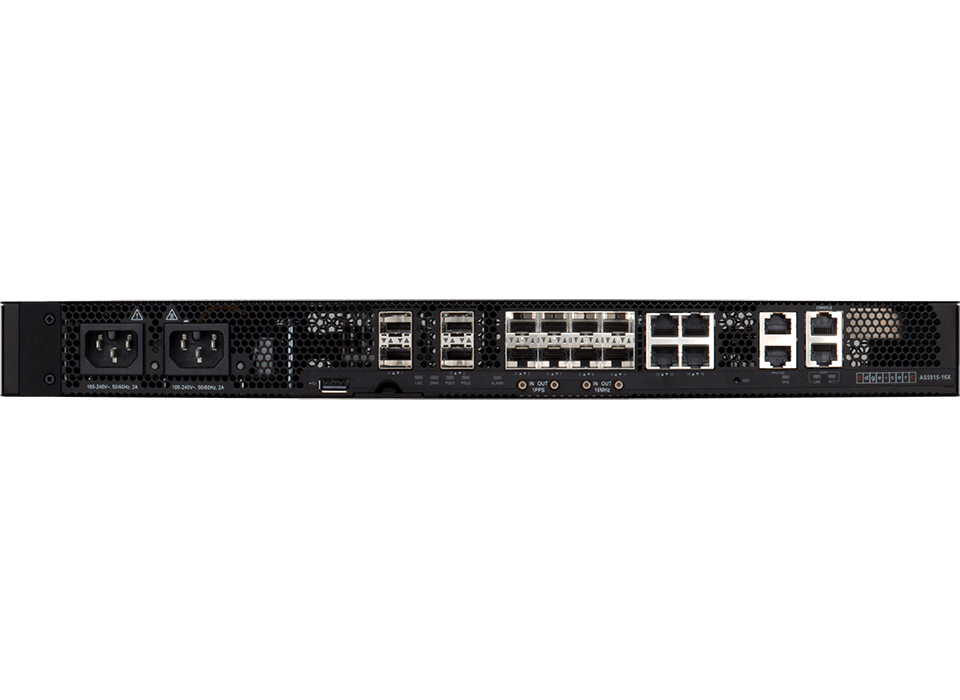

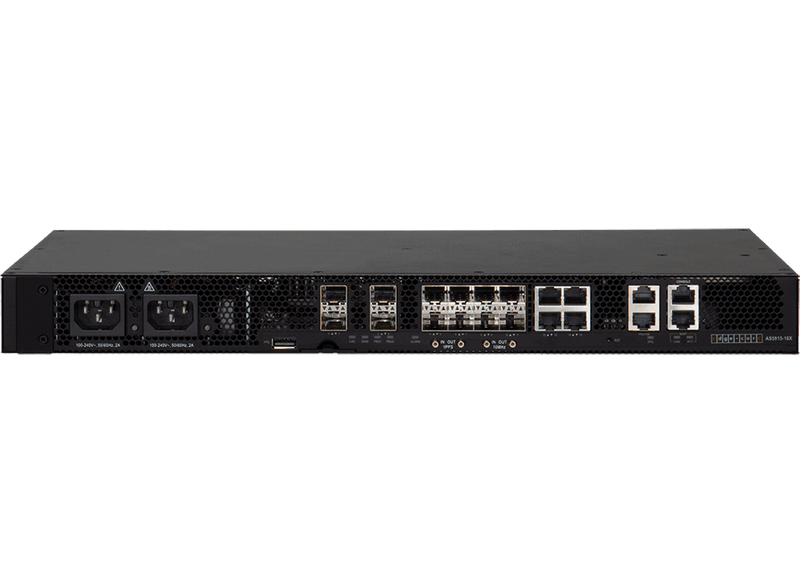

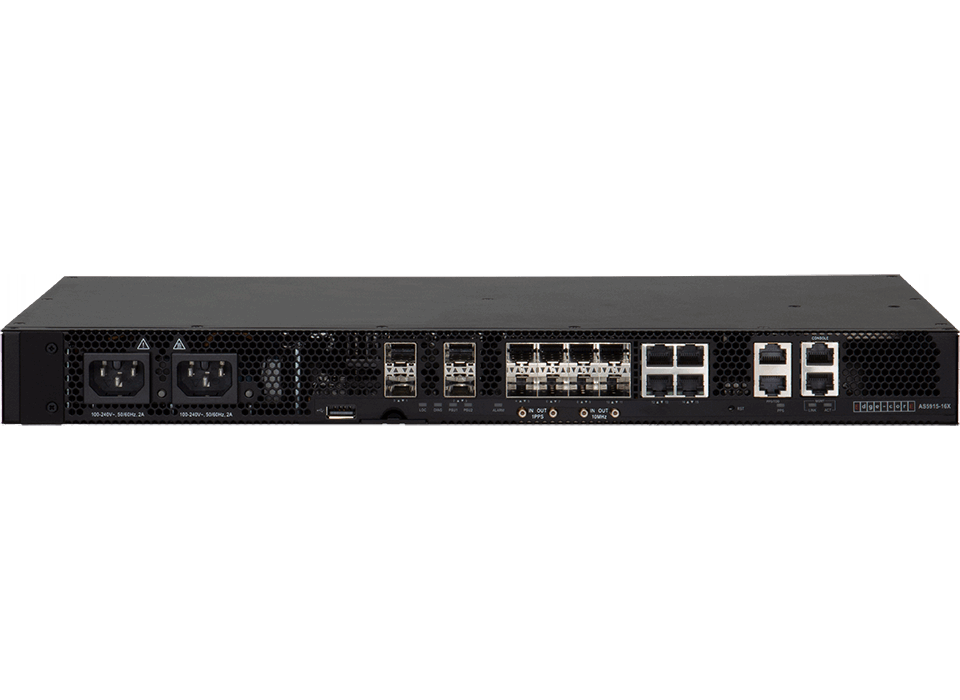

This model features 4 x 10G SFP+, 8 x 1G SFP, and 4 x 1G RJ-45 ports, supporting both Ethernet and timing synchronization (IEEE 1588v2 and SyncE). It includes redundant dual 48VDC power supplies, operates passively cooled without internal fans, and performs reliably across an extreme temperature range from –40°C to +65°C.
Preloaded with ONIE (Open Network Install Environment), the AS5915-16X-O-48V-PC provides flexibility to install various open network operating systems (including Open Network Linux), making it ideal for disaggregated cell site gateways, edge computing, and mission-critical telecom environments.
| Category | Specification |
|---|---|
| Model | Edgecore AS5915-16X-O-48V-PC |
| Form Factor | 1RU compact cell site router |
| Switch Silicon | Broadcom BCM88273 Qumran-UX |
| CPU | Intel® Atom C3308, 2-Core |
| Memory | 8 GB DDR4 |
| Storage | 32 GB M.2 SSD |
| Switching Capacity | 32 Gbps |
| Forwarding Rate | 125 Mpps |
| Ports | 4 × 10G SFP+, 8 × 1G SFP, 4 × 1G RJ-45 |
| Management Ports | 1 × RJ-45 Console, 1 × RJ-45 MGMT Ethernet, 1 × USB 2.0 |
| Timing Interfaces | TOD/1PPS (RJ-45), 1PPS I/O, 10MHz I/O |
| Synchronization | IEEE 1588v2, SyncE |
| Cooling | Passive, requires external airflow ≥ 1 m/s |
| Power Supply | Dual 48VDC PSUs (36V–72V input, 6A) |
| Operating Temperature | –40°C to +65°C |
| Storage Temperature | –40°C to +70°C |
| Relative Humidity | 5%–95% (non-condensing) |
| Altitude | Up to 5000 m at +40°C |
| Dimensions (W × D × H) | 440 × 240 × 44 mm |
| Weight | 3.8 kg (with PSUs) |
| Installation | Fits 19", 21", and 23" racks |
| Software Environment | Preloaded with ONIE; compatible with Open Network Linux (ONL) |
| Regulatory Compliance | CE, FCC Class A, UKCA, VCCI-CISPR32 Class B, ICES-003 Class B, EN 300 386, CSA/IEC/EN 60950-1, 62368-1 |
| Environmental Compliance | RoHS, WEEE, REACH |
| Warranty | 3-Year Limited Hardware Warranty (region dependent) |
