Description

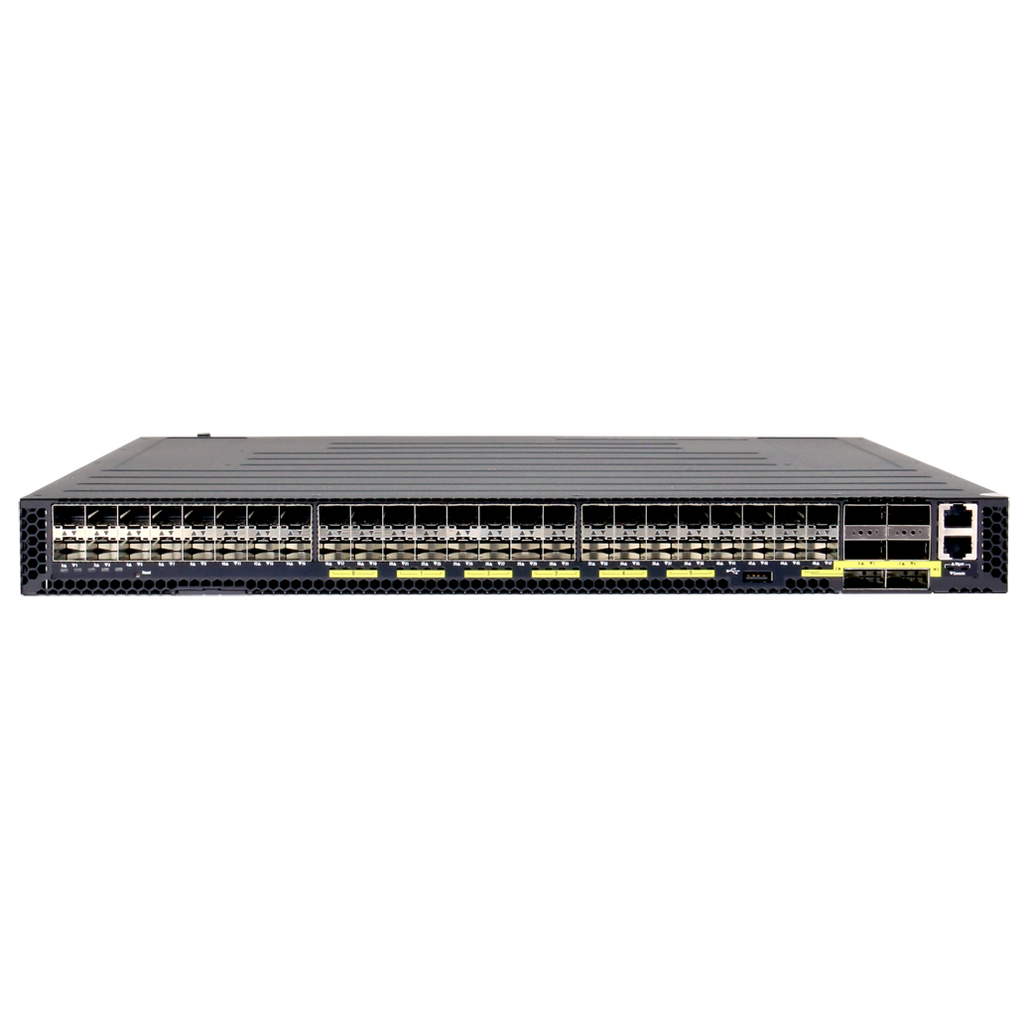

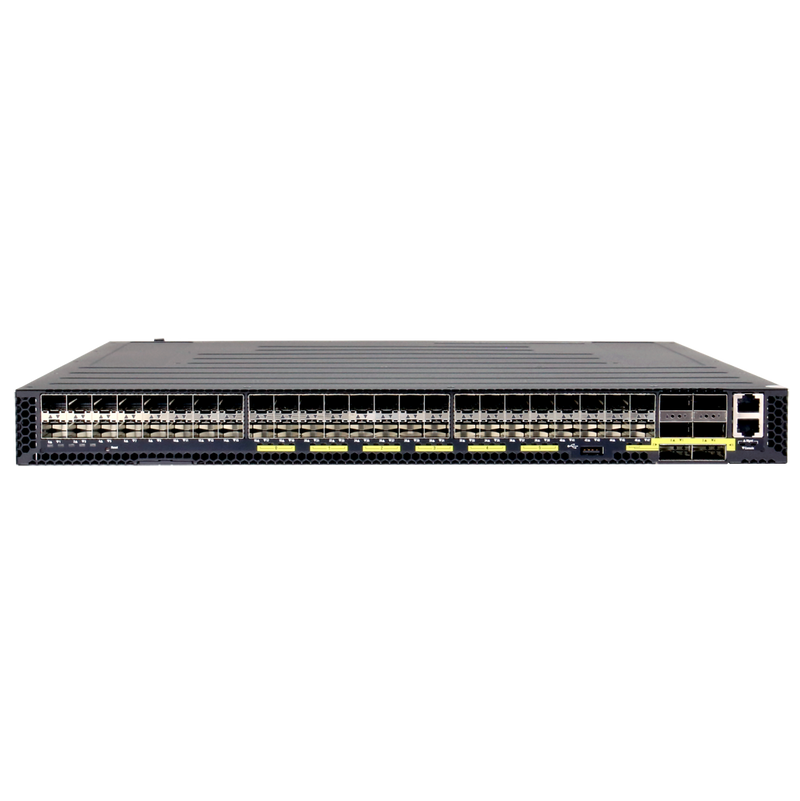

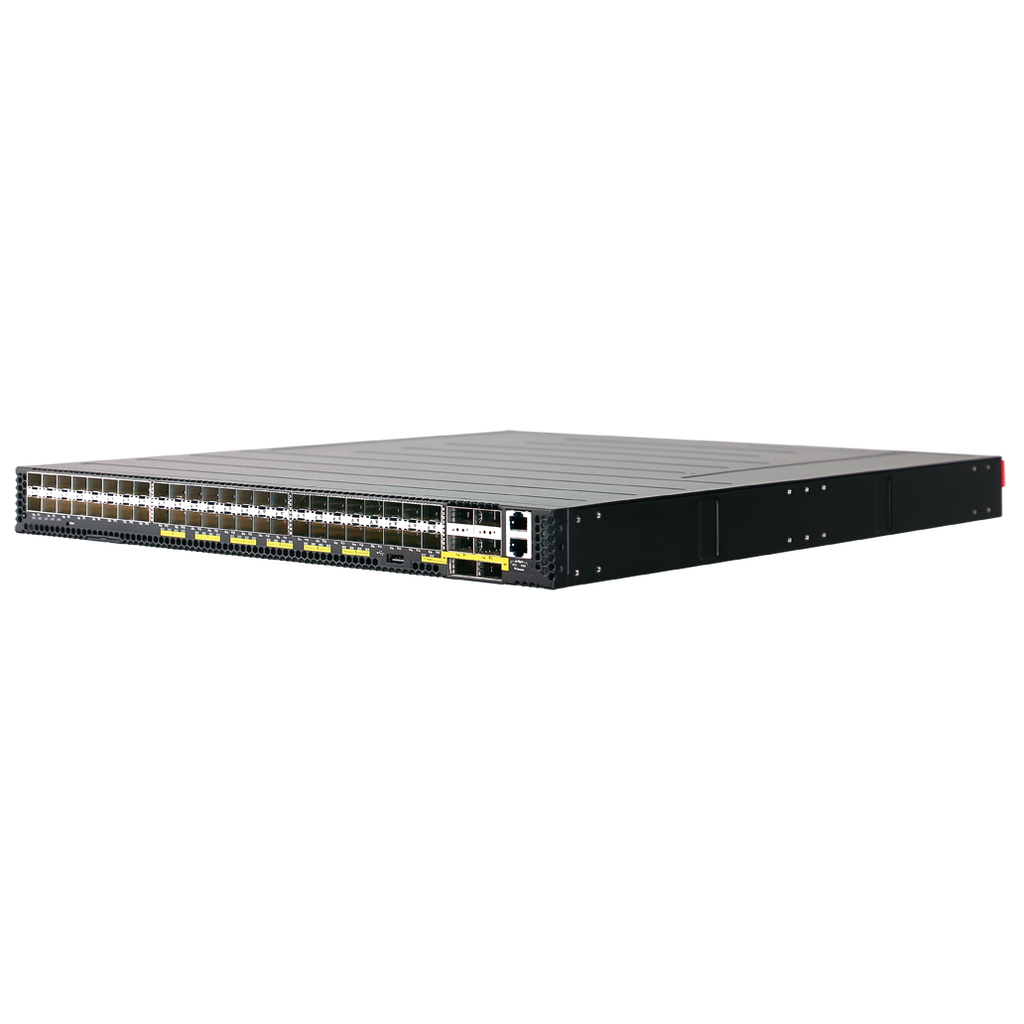

The Edgecore AGR130 AS5916-54XKS-O-AC-F-US is a high-performance 800 Gbps aggregation router designed for carrier-grade access, edge routing, and data center deployments. Powered by the Broadcom StrataDNX™ Qumran-MX BCM88375 ASIC with a 16 GB deep buffer, this open-network switch delivers line-rate Layer 2/3 performance and advanced timing features such as IEEE 1588v2 and SyncE.
Equipped with 48 SFP+ ports supporting 10 GbE/1 GbE connections and 6 QSFP28 uplink ports for 40 GbE/100 GbE connectivity, the AGR130 offers high scalability for cloud service providers and enterprise networks. It integrates an Intel® Xeon® D-1548 8-core 2.0 GHz CPU, dual AC hot-swappable power supplies, and 5 + 1 redundant fans with front-to-back (port-to-power) airflow for reliable operation.
Pre-loaded with the Open Network Install Environment (ONIE), it allows easy deployment of open-source or commercial Network Operating Systems (NOS) such as Open Network Linux (ONL), providing flexibility and full control over your networking software environment.
| Category | Specification |
|---|---|
| Model Number / SKU | AS5916-54XKS / 5916-54XKS-O-AC-F-US |
| Product Type | Aggregation Router / Open Network Switch |
| Processor | Intel® Xeon® D-1548, 8 cores, 2.0 GHz |
| Memory | 2 × 16 GB DDR4 SO-DIMM |
| Storage | 128 GB M.2 SSD (MLC) |
| Switching Capacity | 800 Gbps |
| Forwarding Rate | 700 Mpps |
| Packet Buffer | 16 MB on-chip + 8 GB DRAM deep buffer |
| Ports | 48 × SFP+ (1/10 GbE) • 6 × QSFP28 (40/100 GbE) |
| Management Interfaces | 1 × RJ-45 serial console • 1 × RJ-45 1G management port • 1 × USB Type A storage port • 1 × BMC |
| Supported Optics & Cables | 10GBASE-CR/SR/LR, 1000BASE-SX/LX/T; 40GBASE-CR4/SR4/LR4; 100GBASE-SR4/LR4; QSFP28 DAC/AOC (up to 30 m) |
| Jumbo Frame | 9 KB |
| Operating System | Open Network Install Environment (ONIE); compatible with Open Network Linux (ONL) |
| Power Supply | Dual hot-swappable AC PSUs (100–240 VAC), load sharing |
| Airflow Direction | Port-to-Power (front-to-back) |

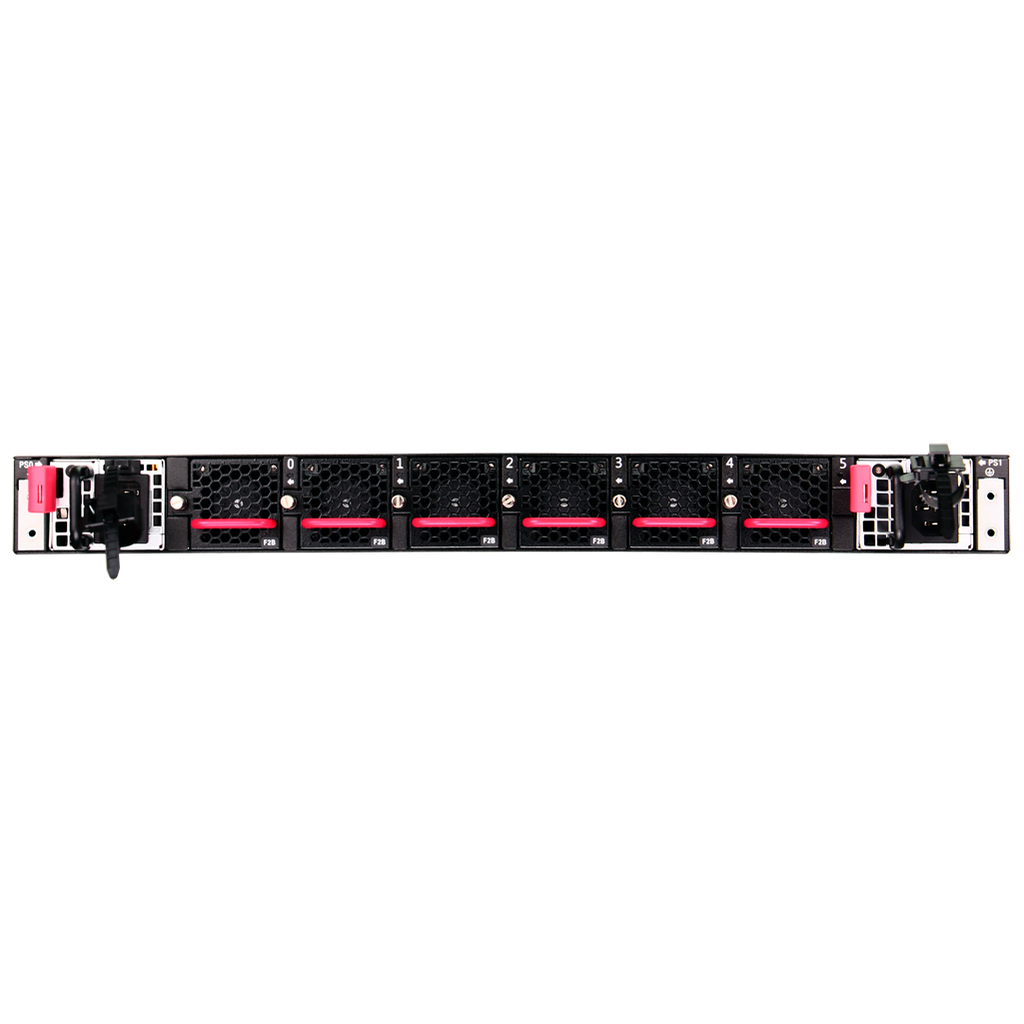

| Cooling | 5 + 1 redundant hot-swappable fans |
| Dimensions (W × D × H) | 438.4 × 501.9 × 44 mm (17.26 × 19.76 × 1.73 in) |
| Weight | 9.7 kg (21.38 lb) with two PSUs |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Humidity | 5 % to 95 % (non-condensing) |
| Regulatory Compliance | CB, UL/CUL, CE Mark, FCC Part 15 Class A, VCCI Class A, NEBS Level 3, RoHS 2.0, WEEE |
| Warranty | 3-year hardware warranty (terms vary by region) |
