Description

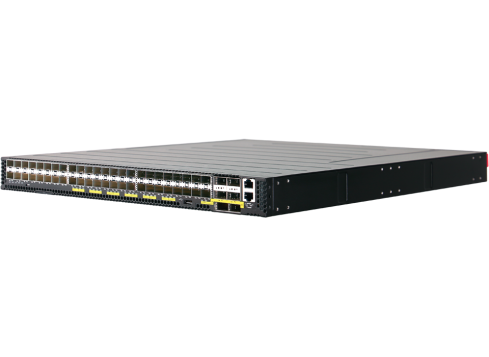

The Edgecore AS5916-54XL (5916-54XL-OT-48V-F) is a high-performance open aggregation router built for data centers, telecommunication networks, and cloud service providers. Based on Broadcom’s StrataDNX® Qumran MX™ silicon, this router delivers 800 Gbps switching capacity and 700 Mpps forwarding performance, providing exceptional scalability and efficiency for Layer 2 and Layer 3 switching.

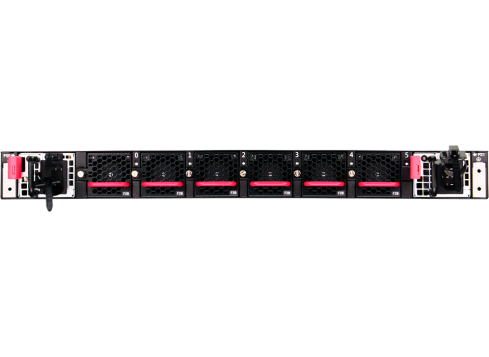

Designed for maximum reliability, the AS5916-54XL includes dual 48 VDC hot-swappable power supplies and 5+1 redundant fans with front-to-back airflow to ensure continuous operation and simplified maintenance. It offers 48 SFP+ ports supporting 1G/10G and 6 QSFP28 uplink ports supporting 40G/100G, making it ideal for top-of-rack or carrier aggregation deployments.
Powered by an Intel® Xeon® D-1518 2.2 GHz CPU, 16 GB DDR4 memory, and 128 GB SSD storage, the AS5916-54XL supports Open Network Install Environment (ONIE) and is compatible with Open Network Linux (ONL), providing flexibility to load preferred network operating systems.
Whether used in large-scale cloud environments or service provider infrastructure, the Edgecore AS5916-54XL ensures high availability, open programmability, and performance-driven networking.
| Category | Specification |
|---|---|
| Model | Edgecore AS5916-54XL |
| Part Number (SKU) | 5916-54XL-OT-48V-F |
| Device Type | Layer 3 Managed Aggregation Router |
| Chipset | Broadcom BCM88370 Qumran-MX |
| Switching Capacity | 800 Gbps |
| Forwarding Rate | 700 Mpps |
| Processor | Intel® Xeon® D-1518, 4-Core, 2.2 GHz |
| Memory | 16 GB DDR4 (2 × 8 GB SO-DIMM) |
| Storage | 128 GB M.2 SSD |
| Ports | 48 × 1/10G SFP+ ports, 6 × 40/100G QSFP28 uplinks |
| Management Interfaces | 1 × RJ-45 Console, 1 × RJ-45 1G Management Port, 1 × USB (Storage), 1 × BMC |
| Airflow | Front-to-Back (Port-to-Power) |
| Cooling | 5+1 Redundant Hot-Swappable Fans |
| Power Supply | Dual 48 VDC Hot-Swappable PSUs (1+1 Redundancy) |
| Power Input Range | -36 to -72 VDC |
| Supported Optics (SFP+) | 10GBASE-SR/LR/ER4/ZR, 1000BASE-T/SX/LX |
| Supported Optics (QSFP28) | 40GBASE-SR4/LR4, 100GBASE-SR4/LR4, DAC/AOC up to 30 m |
| Compliance | UL, CB, CE, FCC Part 15B Class A, VCCI Class A, NEBS Level 3, RoHS 2.0, WEEE |
| Software | Open Network Install Environment (ONIE); Compatible with Open Network Linux (ONL) |
| Dimensions (W × D × H) | 438.4 × 501.9 × 44 mm (17.26 × 19.76 × 1.73 in) |
| Weight | 9.7 kg (21.38 lb) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% – 95% (Non-Condensing) |
| Mounting | 1RU Rack-Mountable |
