Description

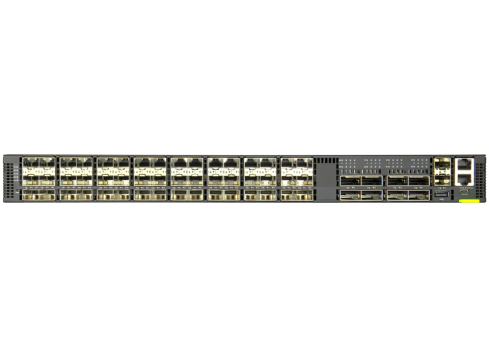

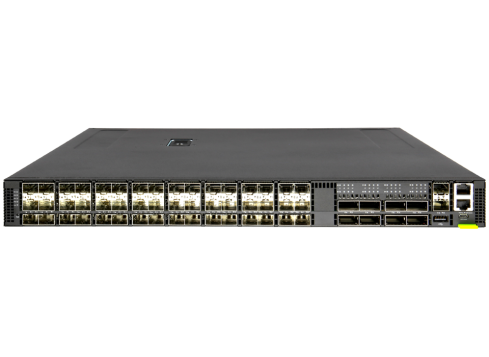

The Edgecore AS7326-56X is a high-performance Top-of-Rack (ToR) data center switch engineered for scalable cloud and enterprise environments. Featuring 48 × 25G SFP28 and 8 × 100G QSFP28 ports in a compact 1RU form factor, it delivers line-rate Layer 2 and Layer 3 switching with an impressive 2 Tbps switching capacity and 2 Bpps forwarding rate.
Powered by the Broadcom BCM56873 Trident 3 chipset and an Intel® Xeon® D-1518 Quad-Core CPU, the AS7326-56X ensures exceptional throughput, programmability, and reliability. The unit comes pre-loaded with the Open Network Install Environment (ONIE), enabling easy deployment of open-source or commercial network operating systems.

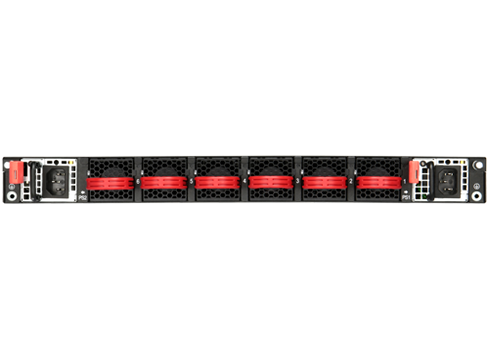

Designed for data-center efficiency, this model includes dual hot-swappable AC power supplies, 5 + 1 redundant fan modules, and front-to-back airflow for optimized rack cooling. The switch supports a wide range of transceivers and DAC/AOC cables for 1G/10G/25G/40G/100G connectivity, making it a versatile foundation for modern cloud and hyperscale networks.
| Category | Details |
|---|---|
| Model Number | 7326-56X-O-AC-F-US |
| Base Model | Edgecore AS7326-56X |
| Switch Type | Data Center Top-of-Rack (ToR) Switch |
| Processor | Intel® Xeon® D-1518 4-Core @ 2.2 GHz |
| Switch Silicon | Broadcom BCM56873 Trident 3 |
| Memory / Storage | 16 GB DDR4 (8 GB × 2), 64 GB M.2 SSD |
| Ports | 48 × SFP28 (1/10/25 GbE), 8 × QSFP28 (40/100 GbE or 4×25 GbE/10 GbE) |
| Management Ports | 1 × RJ-45 Console, 1 × RJ-45 100/1000BASE-T Mgmt, 1 × USB Type A |
| Switching Capacity | 2 Tbps (full-duplex) |
| Forwarding Rate | 2 Bpps |
| MAC Addresses | 32 K min / 288 K max |
| VLAN IDs | 4 K |
| IPv4 Entries | 16 K min / 168 K max (host); 32 K LPM |
| IPv6 Entries | 8 K min / 100 K max (host) |
| Packet Buffer Size | 32 MB integrated |
| Jumbo Frames | Up to 9 K bytes |
| Airflow | Front-to-Back |
| Power Supplies | Dual AC, hot-swappable, load-sharing, redundant |
| Input Voltage Range | 100 – 240 VAC |
| Fan Modules | 5 + 1 redundant, hot-swappable |
| Operating Temperature | 0 °C – 45 °C (F2B) |
| Operating Humidity | 5 % – 95 % (non-condensing) |
| Dimensions (W×D×H) | 17.26 × 21.1 × 1.71 in (43.84 × 53.6 × 4.35 cm) |
| Weight | 10 kg (22.05 lb) |
| Compliance and Certifications | CE, FCC Class A, VCCI Class A, UL/CUL, CB, BSMI, RoHS 2.0 Compliant |
| Software Environment | Open Network Install Environment (ONIE) for third-party NOS installation |
| Warranty | 3-year hardware warranty (extendable) |
