Description

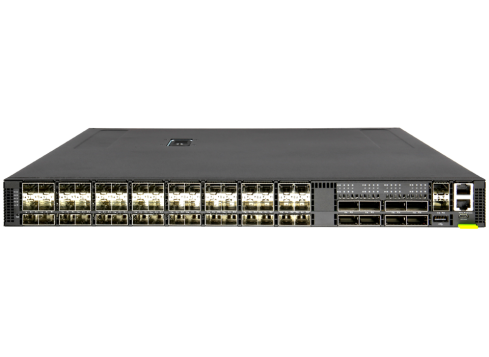

The Edgecore AS7326-56X is a high-performance Top-of-Rack (ToR) data center switch designed to deliver reliable, line-rate Layer 2 and Layer 3 switching for modern cloud and enterprise networks. Featuring 48×25G SFP28 ports and 8×100G QSFP28 uplink ports, it offers exceptional flexibility for high-bandwidth aggregation and scalable network fabrics.
Powered by a Broadcom BCM56873 Trident 3 switch ASIC and an Intel® Xeon® D-1518 4-core processor, the AS7326-56X provides up to 2 Tbps switching capacity and 2 Bpps forwarding performance. The switch supports hot-swappable dual AC power supplies and 5 + 1 redundant fans, ensuring uninterrupted uptime and energy-efficient cooling.
Pre-loaded with Open Network Install Environment (ONIE), this open networking platform supports easy installation of compatible open-source or commercial Network Operating Systems (NOS). With its back-to-front airflow design and 1RU compact form factor, it’s ideal for data centers requiring efficient airflow management and flexibility in deployment.
| Category | Specification |
|---|---|
| Model Number | AS7326-56X |
| SKU | 7326-56X-O-AC-B-US |
| Form Factor | 1RU Top-of-Rack switch |
| Switch Silicon | Broadcom BCM56873 (Trident 3) |
| CPU | Intel® Xeon® D-1518 4-Core 2.2 GHz |
| Memory | 16 GB DDR4 SO-DIMM (8 GB × 2) |
| Storage | 64 GB M.2 SSD MLC + 16 MB SPI Flash × 2 |
| Switching Capacity | 2 Tbps (full duplex) |
| Forwarding Rate | 2 Bpps |
| Packet Buffer | 32 MB integrated |
| MAC Addresses | 32 K min / 288 K max |
| VLAN IDs | 4 K |
| Jumbo Frame Support | Up to 9 KB |

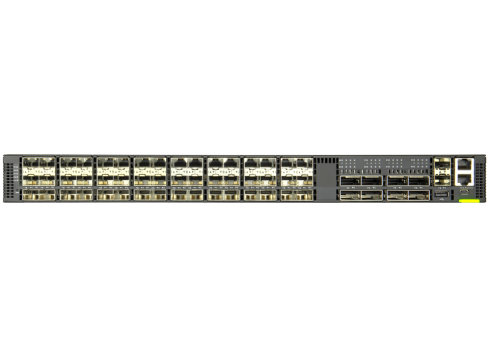

| Ports | 48 × 25 GbE SFP28 + 8 × 100 GbE QSFP28 |
| Port Flexibility | Each QSFP28 supports 1×100G or 1×40G or 4×25G/10G breakout |
| Management Ports | 1 × RJ-45 Console, 1 × RJ-45 Mgmt (100/1000BASE-T), 1 × USB Type-A |
| Airflow | Back-to-Front |
| Power Supply Units | Dual AC PSUs, hot-swappable, load-sharing, redundant |
| AC Input Range | 100 – 240 VAC |

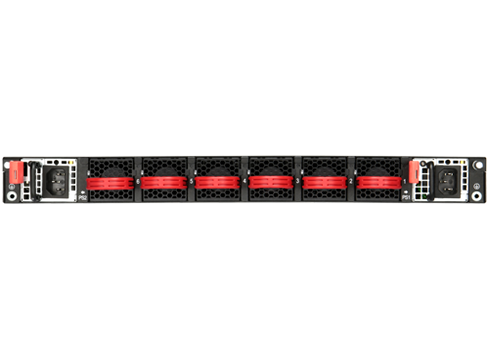

| Fan Modules | 5 + 1 redundant, hot-swappable |
| Operating Temperature | 0 °C – 40 °C (B2F) |
| Storage Temperature | −40 °C – 70 °C |
| Operating Humidity | 5 % – 95 % (non-condensing) |
| Dimensions (W × D × H) | 17.26 × 21.1 × 1.71 in (43.84 × 53.6 × 4.35 cm) |
| Weight | 22.05 lb (10 kg) |
| Certifications | CE, FCC Class A, VCCI Class A, UL/CUL, BSMI, CCC, RoHS 2.0, NEBS GR63-CORE (pre-test) |
| Software Environment | ONIE pre-loaded for NOS installation (open source or commercial options) |
| Warranty | 3-year hardware warranty (extendable to 5 years) |
