Description

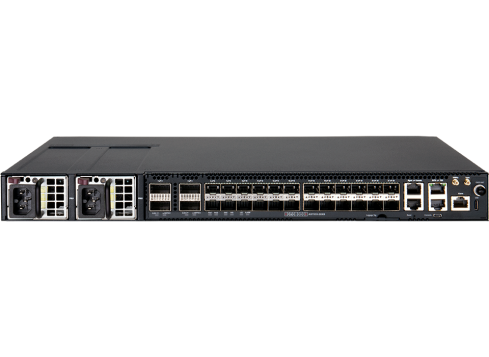

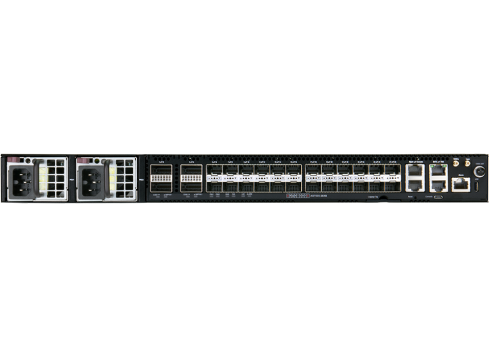

The Edgecore AS7535-28XB-O-AC-F-US (CSR440) is an open disaggregated cell site gateway platform designed for modern service provider access and aggregation networks. Built on Broadcom’s Qumran-2A silicon and powered by an Intel® Xeon® D-1539 8-core processor, it provides high-performance, temperature-hardened operation for LTE and emerging 5G xHaul environments.
This carrier-grade router offers 24 × 25G SFP28, 2 × 100G QSFP28, and 2 × 400G QSFP-DD ports, supporting IEEE 1588v2, SyncE, and TSN (IEEE 802.1CM) timing functions for precise synchronization. With a ruggedized -40 °C to 65 °C operating range, hot-swappable dual AC power supplies, and 5 + 1 redundant fan modules, the AS7535-28XB ensures uninterrupted performance and simplified maintenance in mission-critical deployments.
Pre-loaded with ONIE (Open Network Install Environment), it offers operators the flexibility to install their preferred Network Operating System (NOS) for open networking solutions across fronthaul, midhaul, and backhaul architectures.
| Category | Specification |
|---|---|
| Product Type | Open Disaggregated Cell Site Gateway (CSR440) |
| Switch Silicon | Broadcom BCM88843 (Qumran-2A) |
| Processor | Intel® Xeon® D-1539 1.6 GHz 8-Core |
| Memory | 16 GB DDR4 SO-DIMM ECC (2 × 8 GB) |
| Storage | 128 GB mSATA SSD |
| Switching Capacity | 800 Gbps bidirectional |
| Packet Processing Rate | 600 Mpps |
| Network Ports | 24 × SFP28 (1/10/25 GbE) • 2 × QSFP28 (50/100 GbE) • 2 × QSFP-DD (100/200/400 GbE) |
| Management Ports | 1 × RJ-45 console • 1 × RJ-45 1000BASE-T management • 1 × Micro-USB console • 1 × USB Type-C storage • 1 × RJ-45 alarm |
| Timing Interfaces | 1 × 1 PPS I/O • 1 × 10 MHz I/O • 1 × ToD RJ-45 • 1 × BITS RJ-45 • 1 × GNSS antenna input |
| Cooling | Hot-swappable 5 + 1 redundant fans |
| Power Supplies | Dual hot-swappable AC (100 – 240 V AC, 6.0 – 2.4 A each) |
| Airflow | Front-to-Back |
| Power Consumption | Max 383.6 W • Min 78.68 W |
| Operating Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Humidity | 5 % to 95 %, non-condensing |
| Dimensions (W × D × H) | 438.4 × 300 × 43.3 mm |
| Weight | 7.5 kg (16.53 lb) |
| Certifications | UL 62368-1 • FCC Part 15 Class A • CE Mark • EN 55032/55024/55035 Class A • VCCI Class A • RoHS 2.0 • WEEE |
| Environmental Compliance | NEBS Level 3 (Pre-test) • Shock & Bump Tests • IEC 60068-2-29 |
| Software Environment | Pre-loaded with ONIE (Open Network Install Environment) • Compatible with ONL (Open Network Linux) |
| Warranty | 3-Year Limited Hardware Warranty |
| Part Number | F0PEC7332403A |
| Region | US |
| Model Variant | AS7535-28XB-O-AC-F-US (V2) |
