Description
The Edgecore AS7716-24SC 100GbE Coherent Switch (SKU: 7716-24SC-O-AC-F) is a high-capacity open network platform designed for metro, long-haul, and data-center interconnect applications. Powered by Broadcom StrataXGS™ Tomahawk™ Plus silicon and an Intel® Xeon® D-1518 4-Core CPU, it delivers 3.2 Tbps switching capacity in a compact 1.5RU form factor.

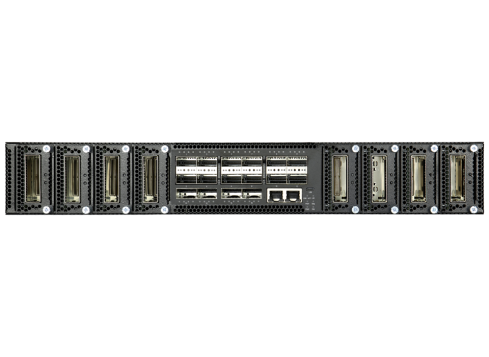

This Cassini-series packet transponder combines switching and optical transport in one flexible system—supporting 16 fixed 100 GbE QSFP28 ports plus 8 line-card slots for a mix of 200 GbE or DCO optical ports. It supports MACsec encryption, automated L1 transport monitoring, and is pre-loaded with Open Network Install Environment (ONIE) for seamless NOS deployment.

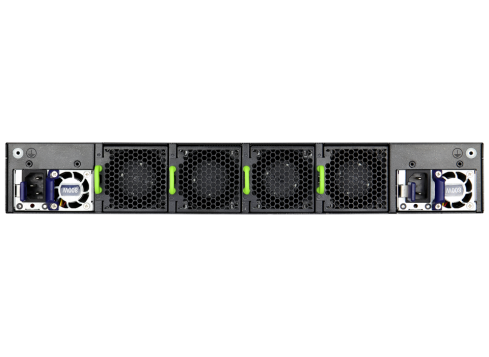

With redundant fans and dual hot-swappable AC PSUs, the AS7716-24SC ensures long-life reliability and efficient front-to-back airflow for data centers and telecom racks.
| Category | Specification |
|---|---|
| Model / SKU | AS7716-24SC / 7716-24SC-O-AC-F |
| Form Factor | 1.5 RU rackmount switch |
| Switch Silicon | Broadcom BCM56965 Tomahawk+ |
| CPU Module | Intel® Xeon® D-1518 4-Core x86 Processor |
| System Memory / Storage | 16 GB DDR4 (8 GB × 2 SO-DIMM), 32 GB M.2 SSD |
| Switching Capacity | 3.2 Tbps (full duplex) |
| Packet Buffer / Frames | Jumbo frames up to 9216 Bytes |
| Port Configuration | 16 × QSFP28 100 GbE ports + 8 line-card slots (QSFP28 / DCO) |
| Management Ports | 1 × RJ-45 serial console, 1 × RJ-45 100/1000BASE-T Mgmt, 1 × USB storage |
| Security | MACsec encryption on client and line links |
| Operating System | ONIE software installer (pre-loaded); compatible with open source and commercial NOS |
| LED Indicators | Port link/status/activity/speed; system diagnostic; PSU & fan status |
| Power Supply | Dual AC PSUs (1+1 redundant, load-sharing, hot-swappable) |
| Power Efficiency | Up to 93% for AC PSUs |
| Input Voltage | 100–240 VAC @ 50–60 Hz; also supports –40 to –72 VDC option |
| Typical Power Consumption | ≈ 1100 W (full load) |
| Cooling Airflow | Front-to-Back airflow (F-direction) |
| Dimensions (W × D × H) | 44.25 × 55.0 × 6.6 cm (17.42 × 21.65 × 2.6 in.) |
| Weight | 11.6 kg (net) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Regulatory Compliance | CE Mark, FCC Part 15 Class A, VCCI Class A, CB, UL/CUL, RoHS 2.0 Compliant |
| Reliability Features | Redundant (3+1) dual-rotor fans, 1+1 redundant PSUs |
| Warranty | 3-year hardware warranty (extendable via service SKU 7716-24SC-SVC-RTF) |
