Description

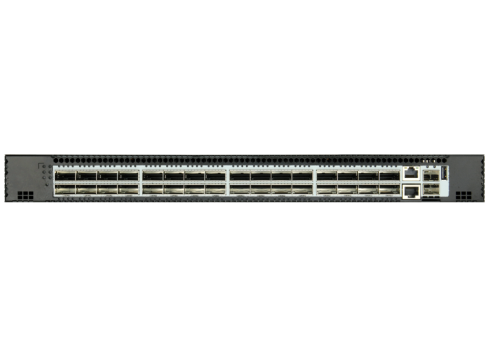

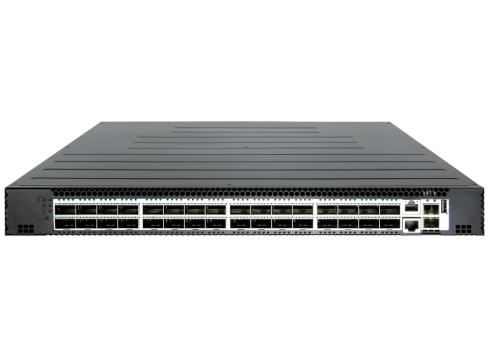

The Edgecore DCS204 AS7726-32X is a high-performance Top-of-Rack (ToR) or spine switch designed for modern data centers that demand scalability, flexibility, and open networking. Featuring 32 QSFP28 ports, each capable of supporting 1×100GbE or 1×40GbE, or breakout configurations up to 4×25GbE or 4×10GbE, this compact 1RU switch delivers full line-rate L2/L3 switching performance at 3.2 Tbps.
Powered by the Broadcom BCM56870 Trident 3 switch silicon and an Intel® Xeon® D-1518 4-core processor, the DCS204 offers exceptional throughput and processing efficiency. It comes pre-loaded with Open Network Install Environment (ONIE), enabling seamless installation of open-source or commercial Network Operating Systems (NOS).

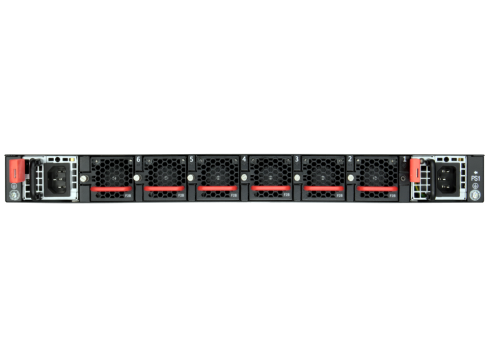

With dual hot-swappable AC power supplies, front-to-back airflow, and 5+1 redundant fan modules, the switch ensures reliable operation in high-density environments. The Edgecore DCS204 AS7726-32X provides the ideal foundation for cloud-scale networks, offering a balance of high port density, open networking, and energy efficiency.
| Category | Specification |
|---|---|
| Model | Edgecore DCS204 AS7726-32X |
| SKU / Part Number | 7726-32X-O-AC-F-US / FP3ZZ7632420A |
| Switch Type | Data Center Switch (Top-of-Rack / Spine) |
| Ports | 32 × QSFP28 (each supports 1×100GbE, 1×40GbE, or via breakout: 2×50GbE / 4×25GbE / 4×10GbE) |
| Management Ports | 1 × RJ-45 serial console, 1 × RJ-45 1000BASE-T management, 2 × SFP+ 10G management, 1 × USB Type-A |
| Switching Capacity | 3.2 Tbps full duplex |
| Forwarding Rate | 1.52 Bpps |
| Processor | Intel® Xeon® D-1518, 4-core, 2.2 GHz |
| Memory / Storage | 16 GB DDR4 (8 GB × 2 SO-DIMM), 64 GB M.2 SSD |
| Switch Silicon | Broadcom BCM56870 Trident 3 |
| Packet Buffer | 32 MB integrated buffer |
| Jumbo Frame Support | Up to 9416 bytes |
| Airflow Direction | Front-to-Back |
| Power Supply | Dual hot-swappable, load-sharing AC PSUs (100–240 VAC) |
| Power Consumption | 550 W max |
| Fan Modules | 5+1 redundant, hot-swappable fans |
| Dimensions (W×D×H) | 43.84 × 51.5 × 4.35 cm (17.25 × 20.27 × 1.71 in.) |
| Weight | 10.87 kg (23.96 lb) with 2 PSUs |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5%–95% non-condensing |
| Certifications / Compliance | CE, FCC, VCCI, CCC, BSMI, UL, CB, EN55032/EN55024, NEBS GR63-CORE (Pre-test), RoHS-2.0, WEEE |
| Software Environment | Pre-loaded with ONIE; supports open-source and commercial NOS |
| Warranty | 3-year hardware warranty |
| Region | North America |
| Part of Series | Edgecore AS7726 / DCS204 |
