Description

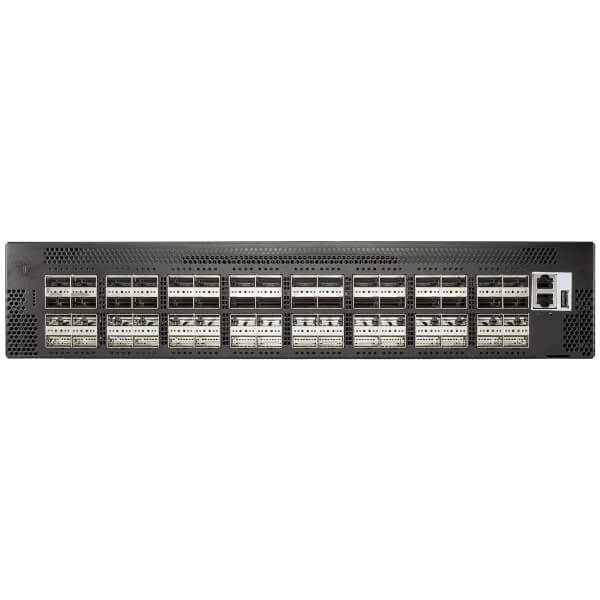

The Edge-Core DCS500 AS7816-64X-O-48V-B-R is a high-performance, open-network data center switch designed for top-of-rack (TOR) or spine deployments in modern high-density environments. Equipped with 64 × QSFP28 ports supporting 100 GbE and 40 GbE, or breakout to 4 × 25 GbE or 4 × 10 GbE, it delivers exceptional flexibility and scalability for next-generation data center fabrics.

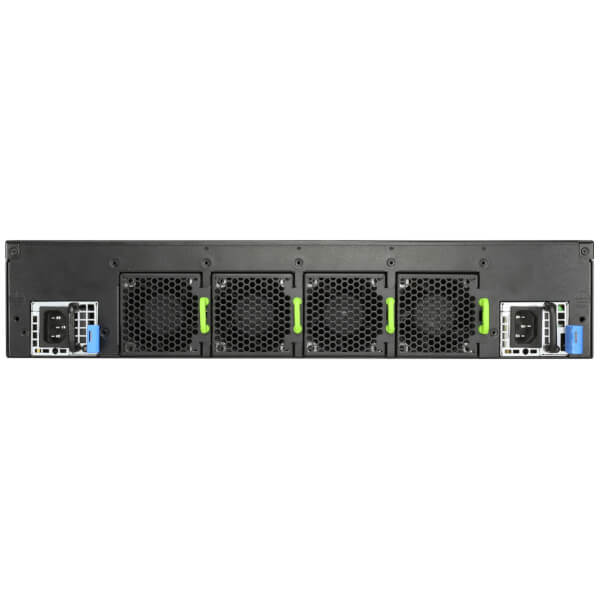

Powered by Broadcom StrataXGS Tomahawk II silicon, the DCS500 provides 12.8 Tbps non-blocking switching capacity with line-rate Layer 2 and Layer 3 performance. It integrates an Intel Xeon D-1518 quad-core 2.2 GHz CPU, dual 48 V DC PSUs, and 3 + 1 hot-swappable redundant fans with Power-to-Port airflow for efficient cooling in front-to-back data center layouts.
Pre-loaded with the Open Network Install Environment (ONIE), this open switch enables seamless deployment of compatible open-source or commercial network operating systems, providing flexibility for SDN and cloud-scale architectures.
Ideal for hyperscale, enterprise, and cloud environments, the AS7816-64X-O-48V-B-R offers high reliability, open programmability, and simplified operations for disaggregated networking.
| Category | Specification |
|---|---|
| Model | Edge-Core DCS500 AS7816-64X-O-48V-B-R |
| Form Factor | 2RU rack-mountable data center switch |
| Switch Silicon | Broadcom StrataXGS Tomahawk II (BCM56970) |
| CPU Module | Intel Xeon D-1518 quad-core 2.2 GHz |
| Memory | 16 GB DDR4 (2 × 8 GB ECC SO-DIMM 2133 MHz) |
| Flash Storage | 32 GB M.2 SSD MLC + dual 16 MB SPI Flash |
| Switch Ports | 64 × QSFP28 (100 GbE / 40 GbE / 4 × 25 GbE / 4 × 10 GbE via breakout) |
| Management Ports | 1 × RJ-45 serial console • 1 × RJ-45 1 GbE management • 1 × USB Type A storage |
| Switching Capacity | 12.8 Tbps full duplex |
| Forwarding Rate | 4.2 bpps |
| Packet Buffer Size | 42 MB integrated |
| Jumbo Frame Support | Up to 9 KB |
| Airflow | Power-to-Port |
| Fans | 3 + 1 hot-swappable redundant fan modules |
| Power Supply Units | Dual 48 V DC redundant, load-sharing, hot-swappable PSUs |
| Input Voltage | –48 V DC |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Operating Humidity | 5 % – 95 % non-condensing |
| Dimensions (W × D × H) | 43.84 × 58.0 × 8.77 cm (17.26 × 22.83 × 3.45 in) |
| Weight | 14.11 kg (31.1 lb) |
| Regulatory Compliance | CE Mark, FCC Class A, VCCI Class A, EN 55032, EN 55024, RoHS-6 Compliant |
| Software Environment | Pre-loaded with ONIE; supports open and commercial NOS options |
| Warranty | 3-year hardware warranty |
