Description

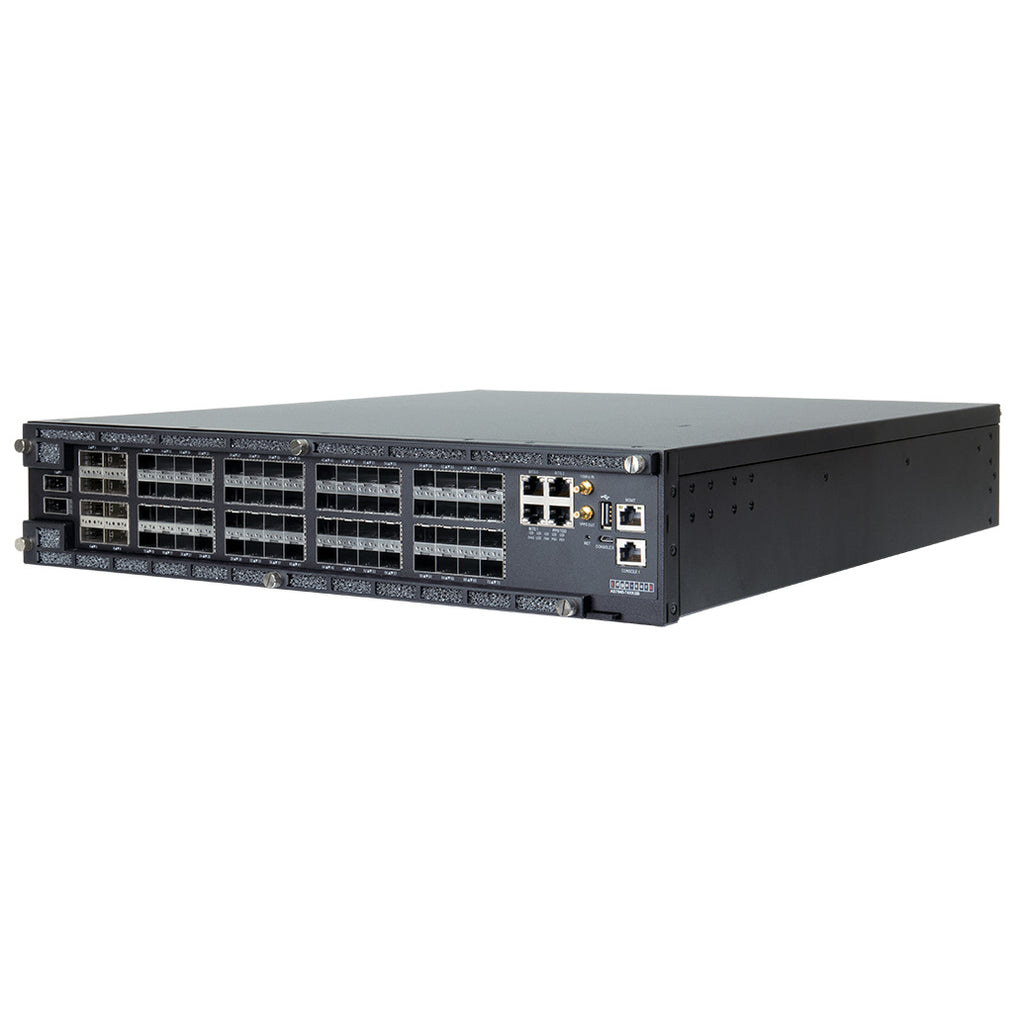

The Edgecore AS7946-74XKSB-O-AC-F (AGR420) is a high-performance 25GbE aggregation router designed for telecom and data center environments. Built on the Broadcom StrataDNX™ Qumran2C platform with an external BCM16K lookup engine, this 2RU router delivers 2.4 Tb/s of switching capacity in a compact form factor.
Featuring 64 × 10G/25G SFP28, 8 × 100G QSFP28, and 2 × 100G QSFP-DD ports, it supports a wide range of applications such as OpenBNG, pre-aggregation, PE routing, and ToR deployments. The system runs the Open Network Install Environment (ONIE), enabling flexible installation of open-source or commercial Network Operating Systems (NOS).

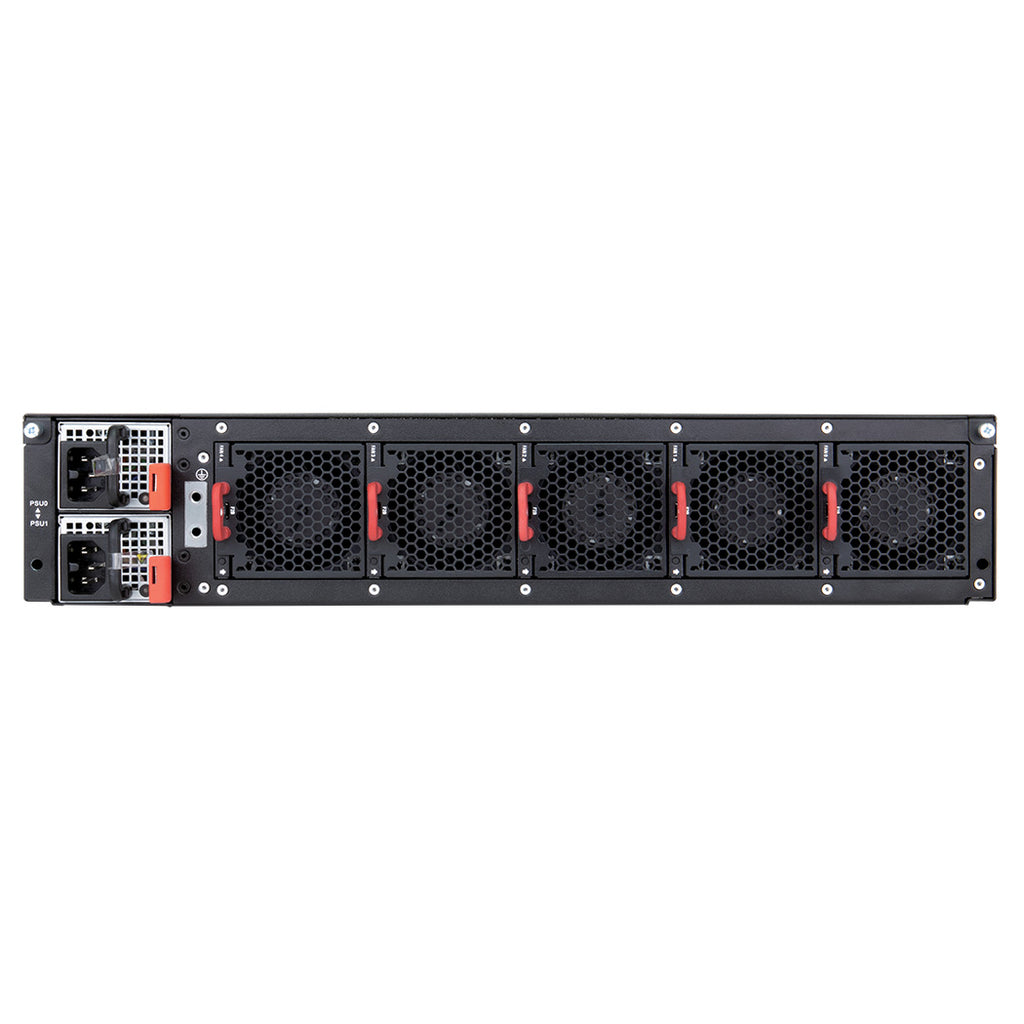

Engineered for carrier-grade reliability, the AS7946-74XKSB-O-AC-F includes 1+1 hot-swappable AC PSUs, 4+1 redundant fans, and front-to-back airflow. It supports SyncE and IEEE 1588v2 PTP for precise timing and synchronization, making it ideal for disaggregated edge routing or virtual broadband gateway (vBNG) deployments.
| Category | Specification |
|---|---|
| Model | Edgecore AS7946-74XKSB-O-AC-F |
| Form Factor | 2RU rack-mountable |
| Switching Capacity | 2.4 Tb/s |
| CPU | Intel® Xeon® D-1548 8-Core |
| Memory | 32 GB DDR4 (16 GB × 2 SO-DIMM) |
| Storage | M.2 SSD 128 GB |
| Boot Flash | Dual 16 MB SPI |
| Switch Silicon | Broadcom BCM88820 (Qumran-2C) |
| External TCAM | Broadcom BCM16K |
| BMC | ASPEED AST2600 |

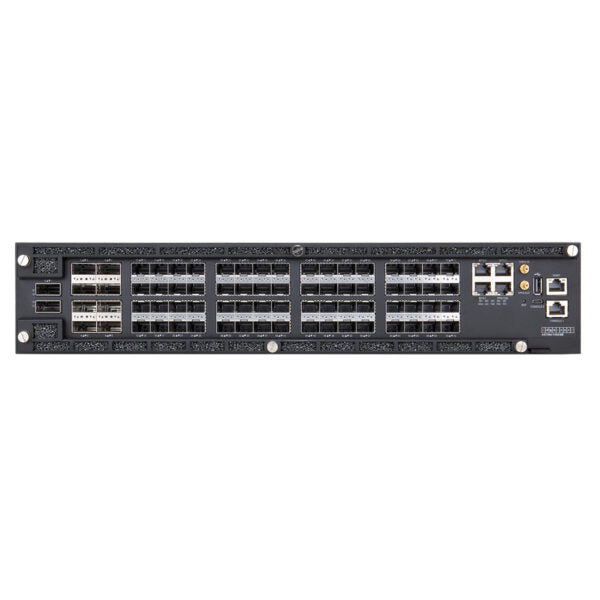

| Network Ports | 64 × 10G/25G SFP28, 8 × 100G QSFP28, 2 × 100G QSFP-DD (high-power optics only) |
| Management Ports | 1 × RJ-45 Console, 1 × RJ-45 OOB Mgmt, 1 × Micro USB Console, 1 × USB Type A |
| Timing Interfaces | 3 × RJ-45 BITS, 1 × RJ-45 ToD/PPS, 1 × SMB (1PPS out), 1 × SMB (10 MHz in) |
| Airflow | Front-to-Back |
| Cooling | 4 + 1 Redundant Hot-Swappable Fans |
| Power Supply | Dual Hot-Swappable AC PSUs (1+1 Redundancy) |
| AC Input | 100–120 V @ 12 A per PSU; 200–240 V @ 7.5 A per PSU |
| Power Consumption | Typical 201 W / Max 692 W |
| Dimensions (W×D×H) | 440 × 480 × 87 mm |
| Weight | 16 kg (with PSUs and fans) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Humidity | 5% to 85% (non-condensing) |
| Compliance & Certifications | UL 60950-1, IEC 62368-1, CE Mark, FCC Class A, RoHS 2.0, WEEE, NEBS Level 3 (pre-test) |
| Software Environment | ONIE (Open Network Install Environment); Supports Open Network Linux (ONL) and commercial NOS |
| Applications | OpenBNG, 25G Pre-Aggregation, PE Router, ToR Switch/Router, Virtual BNG |
