Description
The Edgecore AS7946-74XKSB-O-48V-F is a high-performance 25GbE aggregation router engineered for telecommunications and data center applications. Built on Broadcom StrataDNX™ Qumran2C silicon and powered by an Intel® Xeon® D-1548 8-core CPU, it delivers exceptional processing capability with an external BCM16K knowledge-based processor (KBP) for advanced lookup and policy control.

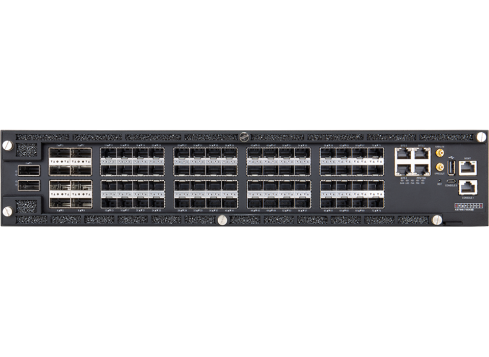

With 64 x 10G/25G SFP28, 8 x 100G QSFP28, and 2 x 100G QSFP-DD interfaces, the AS7946-74XKSB supports flexible aggregation configurations, including 1G to 100G modes using breakout cables. Designed for OpenBNG, pre-aggregation, and PE router deployments, it is fully open networking–ready and ships with the Open Network Install Environment (ONIE), allowing installation of open-source and commercial Network Operating Systems (NOS).

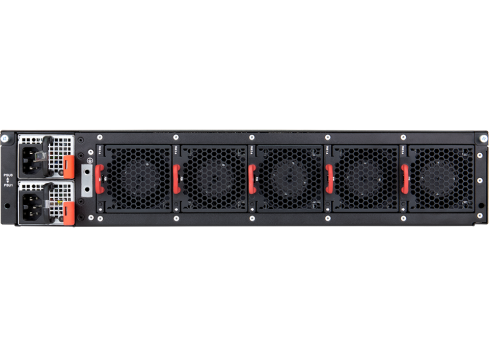

The router is equipped with redundant, hot-swappable DC-DC power supplies, 4+1 fan modules, SyncE and IEEE 1588v2 PTP timing, and front-to-back airflow, ensuring robust reliability and efficient operation in demanding environments.
| Category | Specification |
|---|---|
| Model | AS7946-74XKSB-O-48V-F |
| Form Factor | 2RU Rack-Mountable Aggregation Router |
| CPU | Intel® Xeon® D-1548, 8-Core |
| Memory | 32 GB DDR4 (16 GB x 2) SO-DIMM |
| Storage | 128 GB M.2 SSD |
| Boot Flash | Dual 16 MB SPI |
| Switch Silicon | Broadcom StrataDNX™ Qumran2C (BCM88820) |
| External TCAM | Broadcom BCM16K Lookup Engine |
| Switching Capacity | 2.4 Tbps |
| Network Ports | 64 × 10G/25G SFP288 × 100G QSFP282 × 100G QSFP-DD (high-power optics only) |
| Management Ports | 1 × RJ-45 Console1 × RJ-45 10/100/1000BASE-T1 × Micro USB Console1 × USB Type A |
| Timing Interfaces | 3 × RJ-45 BITS (T12/E12)1 × RJ-45 ToD/PPS1 × SMB 1PPS Out1 × SMB 10 MHz In |
| Fan Modules | 4 + 1 Redundant, Hot-Swappable |
| Airflow | Front-to-Back |
| Power Supply Units | Dual Hot-Swappable DC-DC PSUs (-40 to -75 V, 40 A per PS) |
| Power Consumption | Max 692 W / Typical 201 W |
| Operating Temperature | 0 °C – 45 °C (32 °F – 113 °F) |
| Operating Humidity | 5% – 85% |
| Dimensions (W × D × H) | 440 mm × 480 mm × 87 mm |
| Weight | 16 kg (with PSUs and fans) |
| Compliance | CE Mark, FCC Part 15 Class A, NEBS Level 3 (Pre-Test), RoHS 2.0, WEEE |
| Software Environment | ONIE Installer for Open and Commercial NOS Support |
| Applications | OpenBNG, 25G Pre-Aggregation Router, Provider Edge Router, Data Center TOR |
