Description
The Edge-Core AS9716-32D is a high-performance 400 GbE spine switch designed for next-generation data centers and cloud networks. Featuring 32 x QSFP-DD ports with full line-rate Layer 2 and Layer 3 switching, it provides unmatched throughput and scalability for dense 400 Gbps deployments. Powered by an Intel Xeon D-1518 processor and equipped with 16 GB DDR4 memory and 32 GB SSD, this switch delivers carrier-grade performance and programmability. Redundant hot-swappable power supplies and fans ensure superior reliability, while the front-to-back airflow design optimizes cooling efficiency in modern rack environments. Compatible with open networking environments such as Open Network Install Environment (ONIE), the AS9716-32D gives operators freedom of software choice and long-term investment protection.
| Category | Specification |
|---|---|
| Model | Edge-Core AS9716-32D |
| SKU / Part Number | 9716-32D-O-AC-F-US |
| Form Factor | Rack-mountable (1U) |
| Device Type | Managed 400 GbE Switch |
| Switching Capacity | 25.6 Tbps (full duplex) |
| Forwarding Rate | 19 Bpps |
| Switching Type | Layer 2 / Layer 3 |
| Ports / Interfaces | 32 x 400G QSFP-DD, 1 x Mgmt RJ-45, 1 x Console RJ-45, 1 x USB |
| Port Type | QSFP-DD 400 GbE |
| Advanced Features | Layer 2/3 switching, 64 MB packet buffer, Jumbo frames (9 KB), MAC table 8 K entries, Reset button |
| Processor | Intel Xeon D-1518 (2.4 GHz, 4 cores) |
| Memory | 16 GB DDR4 SDRAM |
| Flash Memory | 256 MB |
| Storage | 32 GB SSD |
| Software Environment | Open Network Install Environment (ONIE) |
| Manageability | Fully managed |

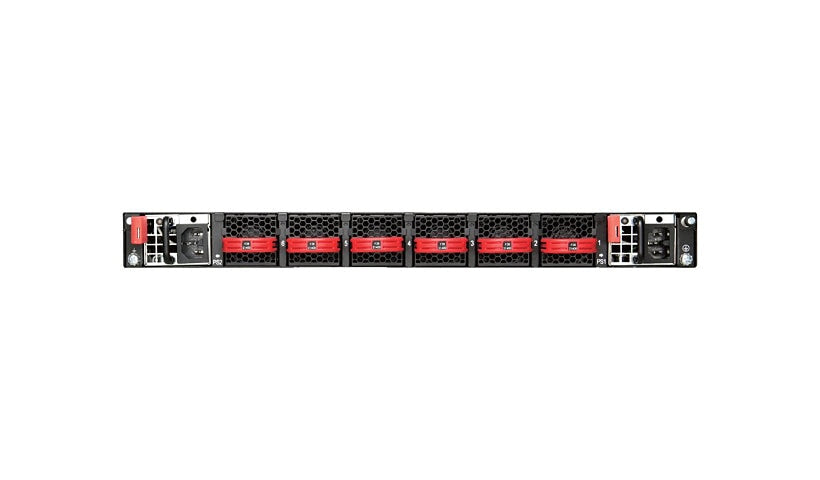

| Cooling | 5 + 1 redundant fans |
| Airflow Direction | Front-to-back |
| Power Supply | Dual hot-plug 1300 W AC PSUs (1+1 redundancy supported) |
| Frequency Range | 50 / 60 Hz |
| Operating Temperature | 32 °F to 113 °F (0 °C – 45 °C) |
| Operating Humidity | 5 – 95 % (non-condensing) |
| Dimensions (W × D × H) | 17.3 × 21.1 × 1.7 in (1 RU) |
| Weight | 24.38 lb (11.06 kg) |
| Color | Black |
| Compliance Standards | AS/NZS CISPR 32, CB, CCC, CISPR 24/32/35, EN 55032/60950/61000/62368, FCC Part 15 Class A, GR-63-CORE, UL 62368, VCCI Class A, RoHS 2, WEEE 2002/96/EC |
| VLAN Support | Up to 4000 VLAN IDs |
| Region / Market | North America |
| Warranty | 3-Year Hardware Warranty |
