Description

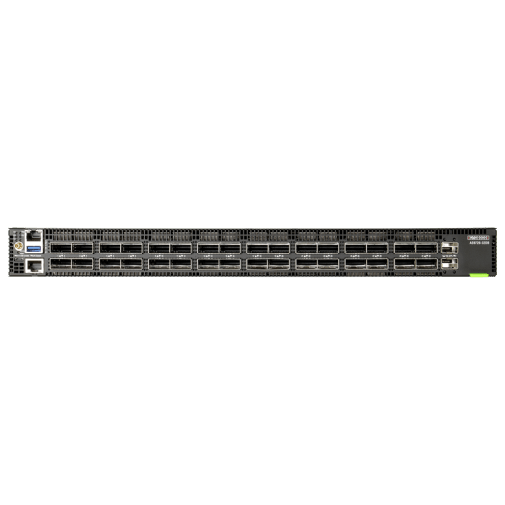

The Edgecore AS9726-32DB-O-AC-F (DCS240) is a high-performance open network spine switch built for next-generation data centers. Featuring 32 QSFP56-DD ports, it delivers non-blocking 25.6 Tbps switching capacity and supports 400G, 200G, 100G, and 25G Ethernet connections through breakout configurations. Powered by Broadcom Trident 4 silicon, the switch ensures line-rate L2 and L3 forwarding for scalable cloud and enterprise deployments.

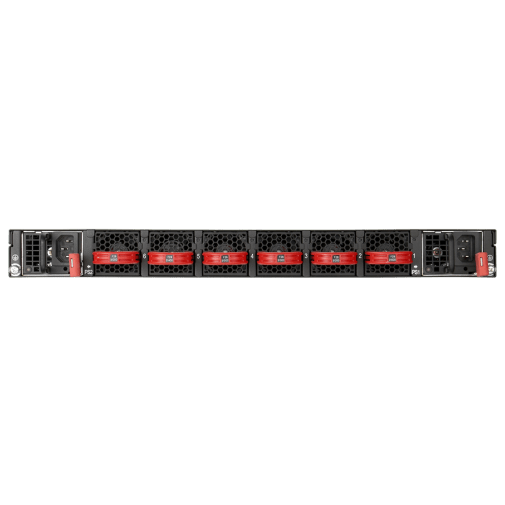

This 1RU platform includes dual hot-swappable 1300W AC power supplies, 5+1 redundant fans, and front-to-back airflow for optimized cooling in high-density environments. The switch is preloaded with ONIE (Open Network Install Environment), enabling seamless installation of open-source or commercial Network Operating Systems (NOS), allowing full software flexibility and disaggregation.
| Category | Details |
|---|---|
| Model | AS9726-32DB-O-AC-F |
| Product Type | 400G Data Center Spine Switch |
| Switch Silicon | Broadcom BCM56880 (Trident 4), 12.8 Tb/s |
| CPU | Intel® Pentium® Processor D1519 (4-core, 1.5 GHz) |
| Memory & Storage | 32 GB DDR4 (2 x 16 GB SO-DIMM), 64 GB M.2 SSD, 16 MB SPI Flash x2 |
| Switching Capacity | 25.6 Tbps full duplex |
| Forwarding Rate | 5.4 Bpps |
| Ports | 32 x QSFP56-DD (400G) |
| Breakout Options | 4 x 100G or 4 x 25G via breakout cables |
| Management Ports | 1 x RJ-45 console, 1 x Micro USB console (priority), 1 x RJ-45 1G management, 2 x SFP+ 10G, 1 x USB 3.0 storage |
| Packet Buffer Size | 132 MB SmartBuffer |
| MAC Address Table | Up to 384K |
| Jumbo Frame Support | Up to 9416 bytes |
| Airflow Direction | Port-to-Power (Front-to-Back) |
| Power Supply Units | Dual redundant, hot-swappable 1300 W AC PSUs |
| Fan Modules | 5+1 redundant, hot-swappable |
| Operating Temperature | 0°C to 45°C (FtoB airflow) |
| Operating Humidity | 5% to 95% non-condensing |
| Dimensions (W x D x H) | 43.84 x 59 x 4.35 cm (17.26 x 23.23 x 1.71 in.) |
| Weight | 11.85 kg (26.12 lb) with PSUs and fans installed |
| Compliance & Safety | EN 55032/55035/61000, FCC Class A, UL 62368-1, RoHS 2.0, WEEE Directive |
| Software Environment | ONIE pre-installed; supports open-source and commercial NOS |
| Warranty | Limited hardware warranty (check region for details) |
