Description

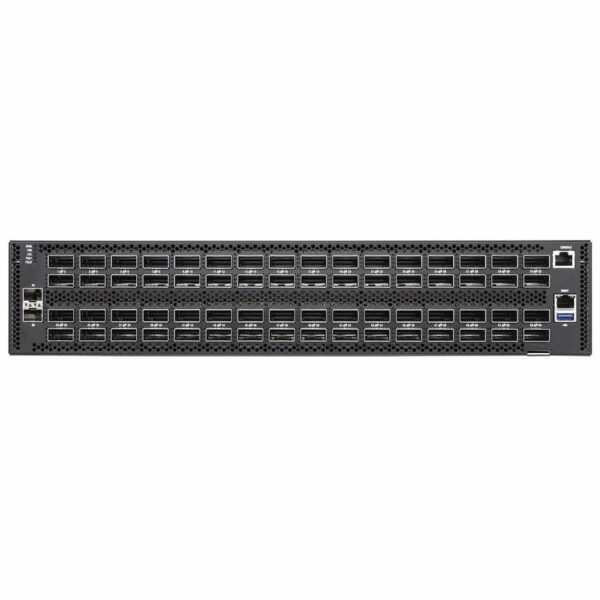

Powered by the Broadcom Tomahawk 4 switch ASIC, the AS9736-64D offers 25.6 Tbps switching capacity and 7.88 billion packets per second (Bpps) forwarding rate. Its 64 × QSFP56-DD ports support a variety of interface options — from 10 GbE up to 400 GbE — via breakout cables for maximum deployment versatility.
This 2RU platform features an Intel Xeon D-1548 8-core CPU, 32 GB DDR4 memory, and 128 GB M.2 SSD, pre-loaded with the Open Network Install Environment (ONIE) for easy installation of open-source or commercial NOS options such as Open Network Linux (ONL) or Enterprise SONiC by Edgecore.

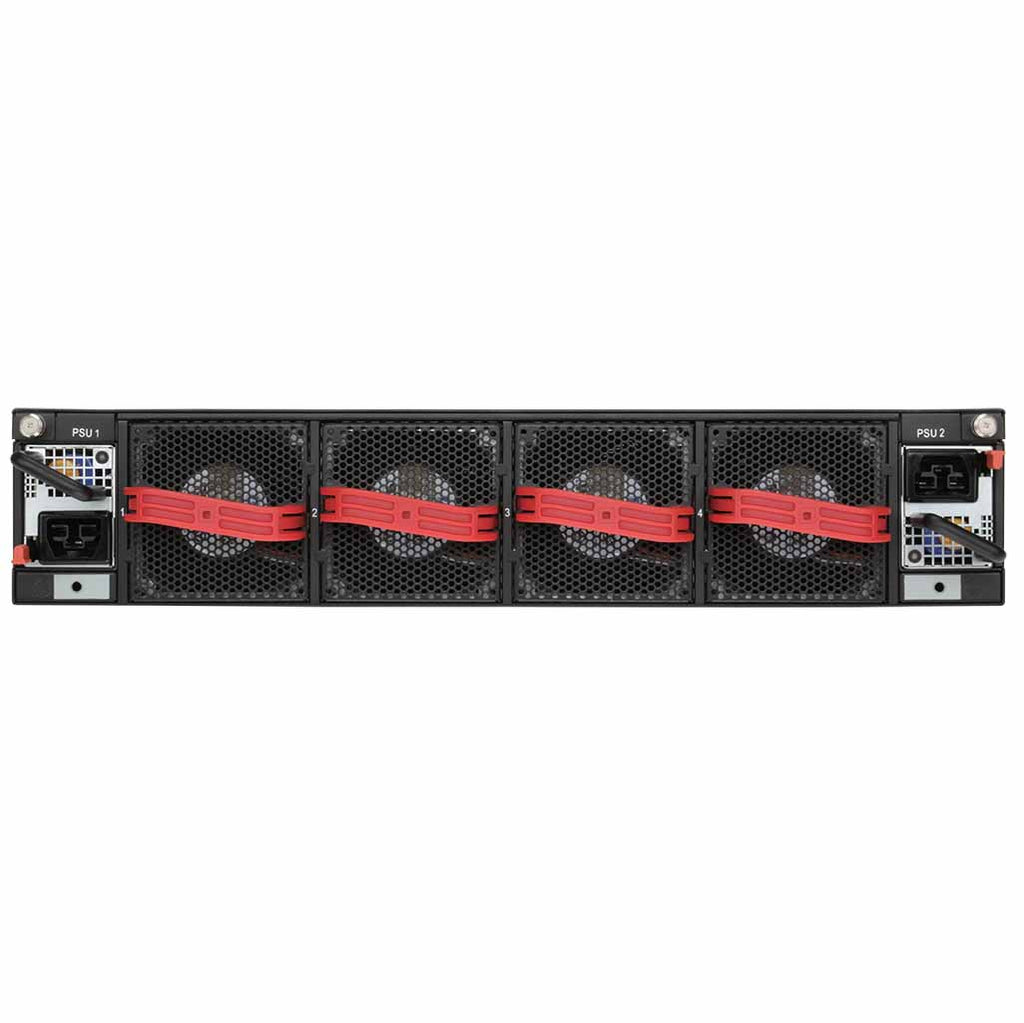

Engineered for high reliability, the AS9736-64D includes dual hot-swappable 2400 W AC/HVDC power supplies, 3 + 1 redundant fan modules, and front-to-rear airflow support for optimal cooling in modern data centers.
Ideal for spine-to-spine or spine-to-leaf interconnects, the Edgecore AS9736-64D delivers scalability, openness, and efficiency for demanding 400 GbE network environments.
| Specification | Details |
|---|---|
| Model | Edgecore AS9736-64D-O-AC-F |
| Switch Type | 400 GbE Data Center Spine Switch |
| Ports | 64 × QSFP56-DD |
| Port Speeds Supported | 400G / 200G / 100G / 50G / 40G / 25G / 10G |
| Breakout Options | 2 × 200G, 4 × 100G, 2 × 50G, 4 × 25G, 4 × 10G |
| Management Ports | 1 × RJ-45 Console, 1 × RJ-45 Mgmt, 2 × 10G SFP+, 1 × USB 2.0 |
| Switch Silicon | Broadcom BCM56990 Tomahawk 4 (25.6 Tbps) |
| CPU | Intel Xeon Processor D-1548 (8 cores, 2.0 GHz) |
| Memory | 32 GB DDR4 (16 GB × 2 SO-DIMM) |
| Storage | 128 GB M.2 SSD |
| Switching Capacity | 25.6 Tbps (full duplex) |
| Forwarding Rate | 7.88 Bpps |
| Packet Buffer | 113.66 MB integrated |
| Jumbo Frame Size | Up to 9416 bytes |
| Airflow | Front-to-Rear |
| Power Supplies | 2 × Hot-Swappable 2400 W AC/HVDC (Load Sharing, Redundant) |
| Power Draw | 287.75 W (min), 2100 W (max) |
| Fans | 3 + 1 Hot-Swappable Redundant Modules |
| Dimensions (W × D × H) | 44 × 64.92 × 8.7 cm (17.32 × 25.56 × 3.43 in) |
| Weight | 21.2 kg (46.74 lb) |
| Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Operating Humidity | 5 % – 95 % non-condensing |
| Compliance & Safety | EN 55032, FCC Class A, UL/IEC 62368-1, RoHS 2.0, WEEE Directive |
| Pre-loaded Software | ONIE (Open Network Install Environment) |
| Compatible NOS | Open Network Linux (ONL), Enterprise SONiC by Edgecore |
| Form Factor | 2 RU |
| Warranty | Limited warranty (varies by region) |
