Description
The TM Series of compact tabletop mixer/amplifiers are the products of choice in small restaurants, retail stores, bistros, convenience stores and mini-marts and school classrooms.
Ashly enters the commercial sound electronics segment honoring the commitment of providing quality audio products to this growing marketplace. The TM-360 is a 3-Input 60 Watt mixer/amplifier that offers input and output flexibility coupled with energy efficiency. Each can be used as a desktop unit or conveniently rack-mounted and tucked away.
The TM-360 uses a Class-D amplifier topology for added energy efficiency. Input options include selectable mic or line level, telephone and dual RCA sum-to-mono. Automatically switch into a stand-by mode if no audio input is received for 25 minutes, thus reducing the current draw.
The TM-335 is a 3-input 35 Watt mixer/amplifier. Like the TM-360, it features your choice of mic, line, dual RCA sum-to-mono or telephone inputs. Rear panel dip-switches set input priorities and trigger the ducking circuit.

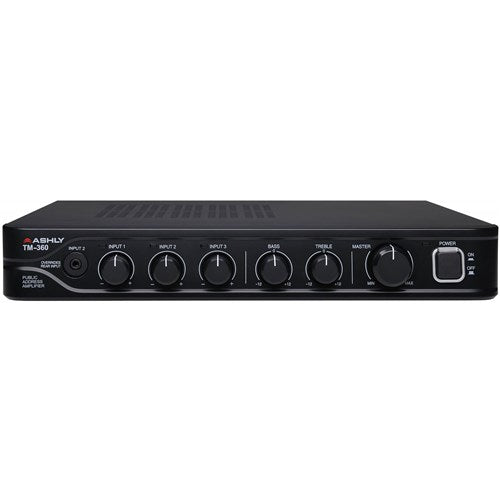

TM-360
■ One balanced mic/line/tel input with phantom power, 2 balanced line level inputs w/stereo RCA sum-to-mono inputs
■ Mute priority of inputs
■ Mini-jack input on front panel disables channel 2-input
■ Switches for zone 2 assign, mute priority, low-cut filter, phantom power
■ 600 Ohm pre-out for external amplifiers
■ Zone 2-output, 1W / 8 Ohms
■ Power saving standby mode: audio inactivity or contact closure
■ Safety/Compliance: CSA, CE, FCC, RoHS
■ Optional rack kit available

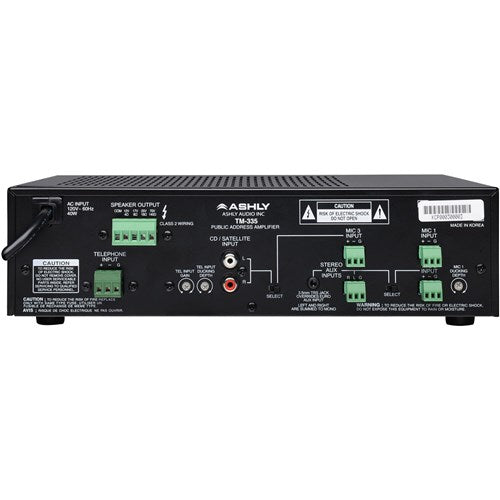

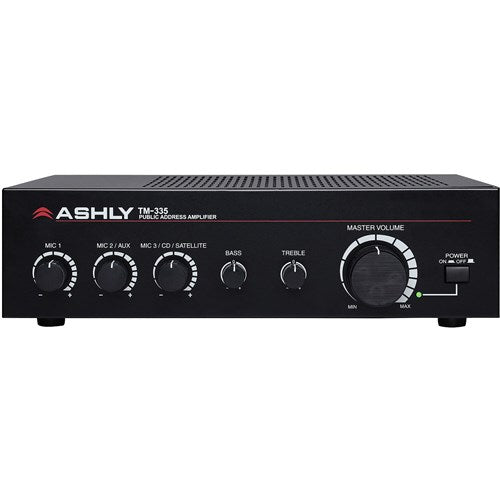

TM-335
■ Inputs 1-2-3 are mic/line, 2-3 sum stereo inputs
■ Mute priority
■ Rear panel switches select stereo summing
■ Transformer-isolated output offers low impedance (4 Ohm) or
constant voltage (25V or 70V)
■ Safety/Compliance: CSA__, CE, FCC, RoHS
■ Optional rack kit available
230V International versions feature Low Impedance, 70V or 100V output options.
