Description

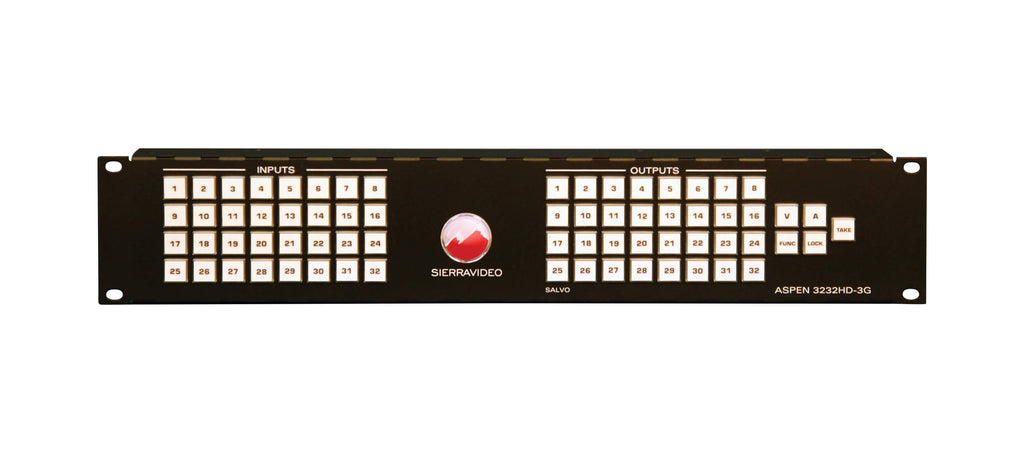

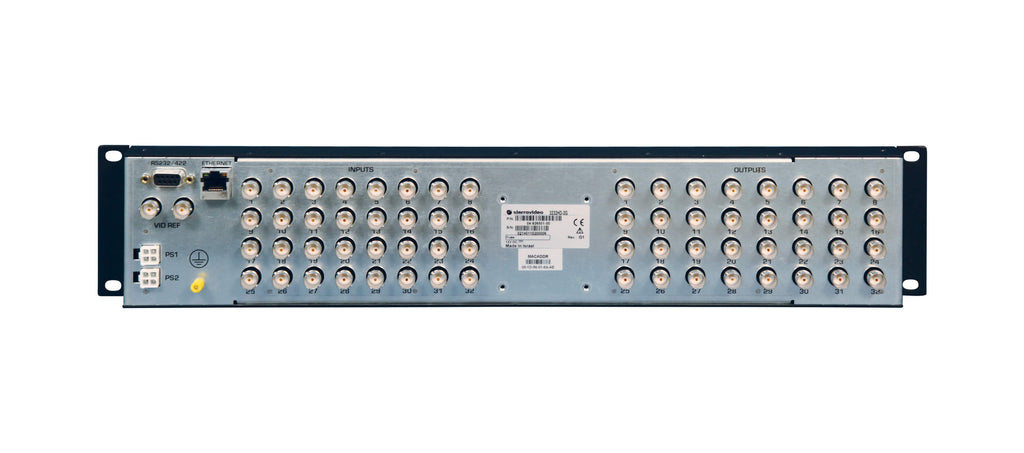

The Aspen 32x32 3G HD-SDI Router (ASPEN 32X32 3G HD-SDI RT) is a high-performance 2RU matrix switcher engineered for professional broadcast, production, and post-production environments. Supporting SDI formats up to 3G-SDI, this compact yet powerful router delivers reliable routing for demanding video workflows.
Designed for ease of use, it offers intuitive web-based control, RS-232 serial control, and advanced signal handling features such as equalization, re-clocking, and ANC data support. Its multi-standard compliance (SMPTE 424M, SMPTE 292M, SMPTE 259M-C/344M, DVB-ASI) ensures seamless integration into mixed-format signal chains.
With exceptional cable reach performance—up to 200m for 1.5G HD and 155m for 3G-SDI—plus less than one-frame latency, the Aspen 32x32 router delivers broadcast-grade reliability. Optional redundant power supply support adds an extra layer of operational security for mission-critical installations.
| Specification | Details |
|---|---|
| Matrix Size | 32×32 SDI Router |
| Max Data Rate | Up to 3 Gbps |
| Video Standards | 3G-SDI (SMPTE 424M), HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M-C/344M), DVB-ASI |
| Signal Features | Advanced equalization and re-clocking, ANC data support |
| Latency | Less than one frame |
| Cable Equalization | Up to 200m (1.5G HD), up to 155m (3G-SDI) |
| Connectivity & Control | Web interface control, RS-232 serial control |
| Form Factor | 2RU rackmount |
| Genlock | Analog genlock input supported |
| Redundant Power | Optional redundant PSU |
| SKU | ASPEN 32X32 3G HD-SDI RT |
