Description

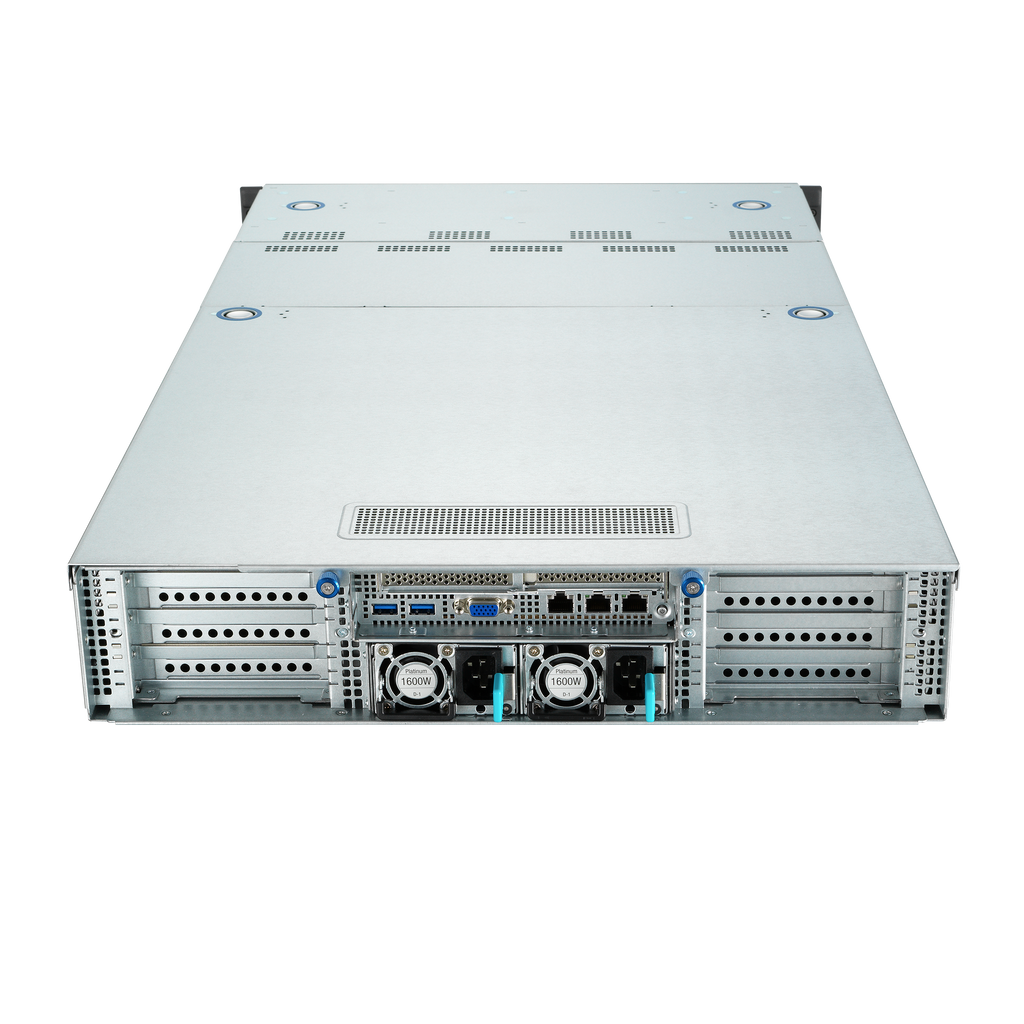

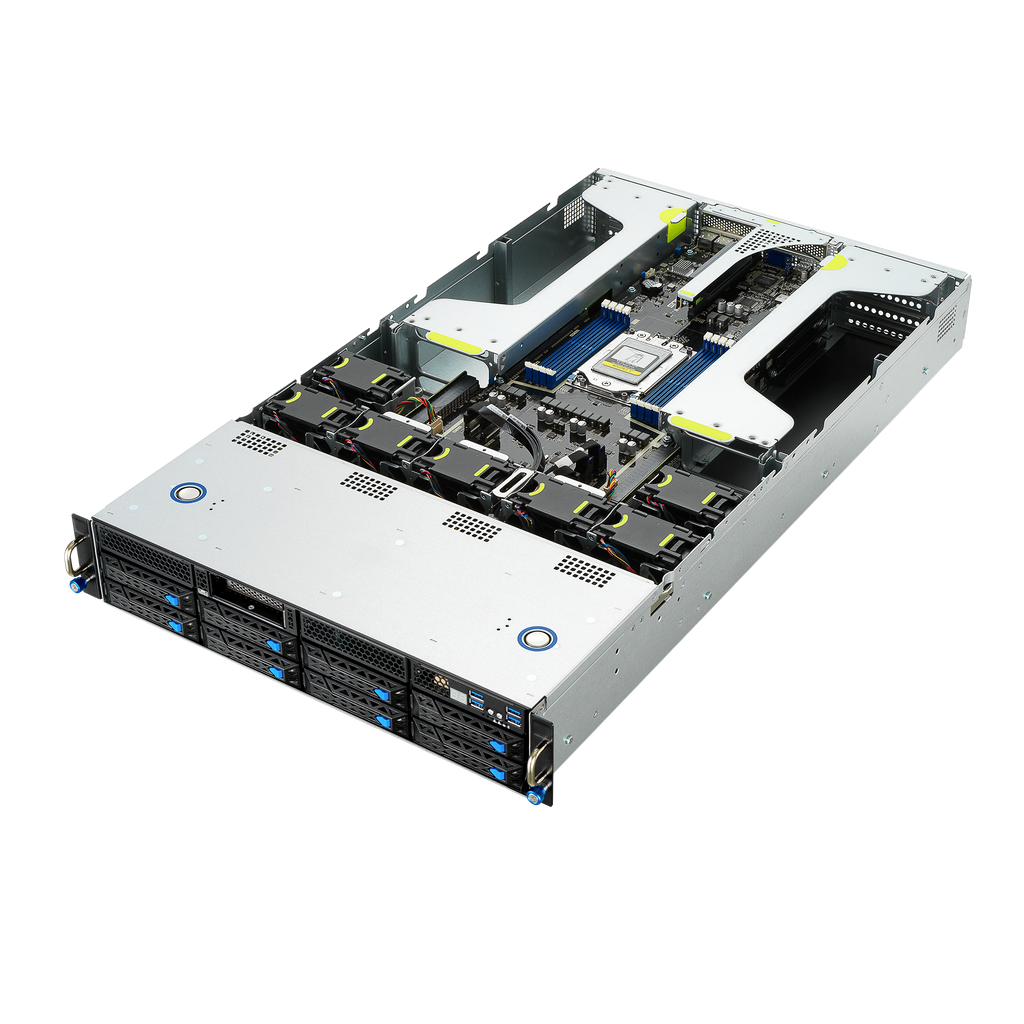

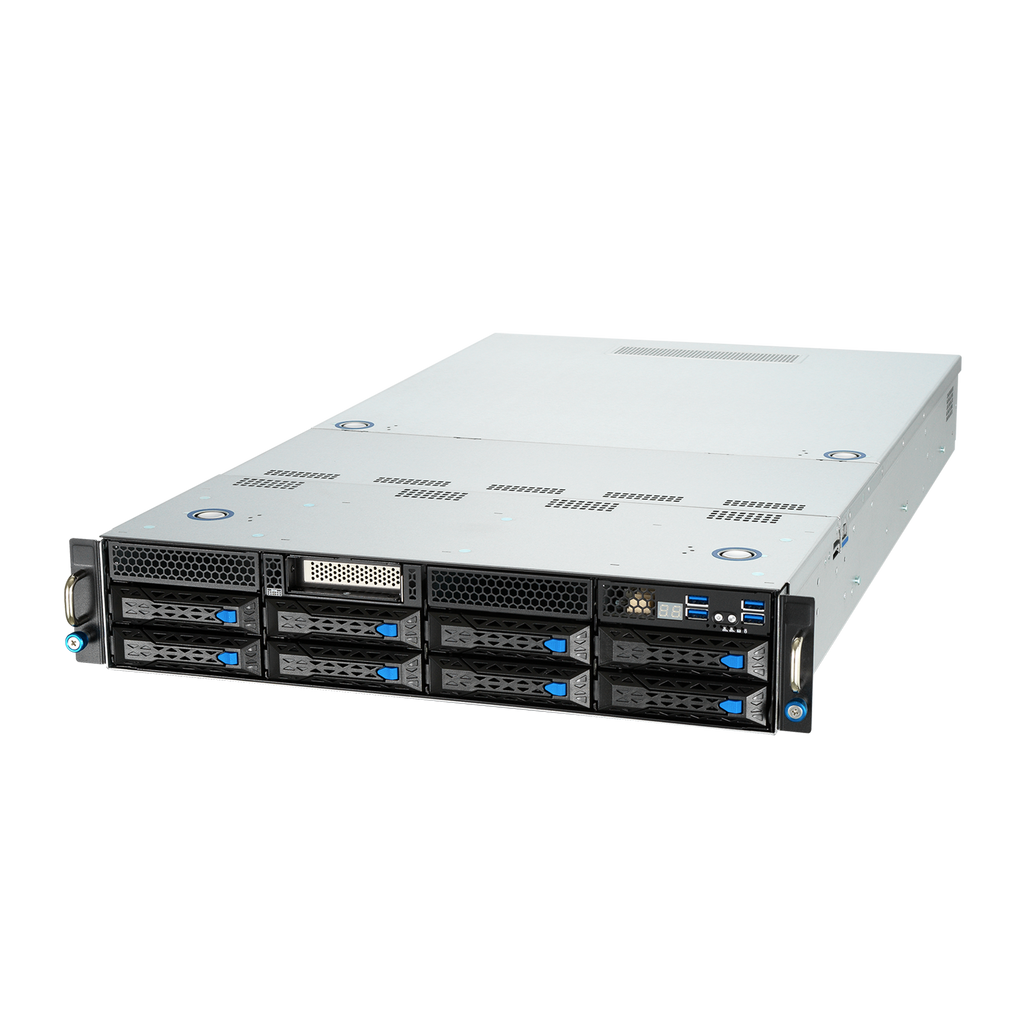

The ASUS ESC4000A-E10 is a powerful 1-socket 2U accelerator server engineered to handle compute-intensive workloads with exceptional efficiency. Powered by 3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology, it delivers high core density and enhanced performance for AI, virtualization, and HPC applications—all within a thermally optimized chassis.
Designed for maximum GPU scalability, it supports up to four dual-slot PCIe 4.0 GPUs or eight single-slot GPUs, enabling unparalleled parallel processing capabilities. The server also features ASMB9-iKVM remote management, ASUS Control Center (ACC) for streamlined administration, and OCP 3.0 support for flexible networking expansion. With eight hot-swappable drive bays—including support for up to four NVMe drives—and redundant 80 PLUS Platinum power supplies, the ESC4000A-E10 ensures high availability and reliability for enterprise and data center environments.
Ideal for AI inference, cloud computing, streaming media, and virtualized workloads, this system combines performance, scalability, and intelligent management in a compact 2U form factor.
| Category | Specification |
|---|---|
| Processor | 3rd Gen AMD EPYC™ 7003/7002 Series, up to 280W TDP with AMD 3D V-Cache™ technology |
| Form Factor | 2U Rackmount Server |
| Memory | 8 DIMM slots (8-channel per CPU); up to 2TB DDR4-3200 RDIMM |
| Expansion Slots | 11x PCIe 4.0 slots (supports up to 4 double-deck or 8 single-wide GPUs) |
| OCP Slot | 1x OCP 3.0 Gen 4.0 x16 Mezzanine slot |
| Storage Bays | 8x 2.5"/3.5" hot-swap bays (up to 4x NVMe supported) |
| Networking | 2x 1GbE (Intel® I350-AM2) + 1x dedicated management port |
| Graphics | ASPEED AST2500, 64MB |
| Security | TPM 2.0 |
| Front I/O Ports | 4x USB 3.0 ports |
| Rear I/O Ports | 2x USB 3.0, 2x LAN (RJ45), 1x Management (RJ45), 1x VGA |
| Management | ASUS Control Center (Classic), ASMB9-iKVM (KVM-over-IP) |
| Power Supply Options | 1+1 Redundant 1600W or 2200W 80 PLUS Platinum |
| Dimensions (W x D x H) | 440 x 800 x 88 mm (17.32" x 31.5" x 3.46") |
| Weight | Net: 34 kg / Gross: 44 kg |
| Operating Temperature | 10°C – 35°C |
| Supported OS | Windows® Server 2019, RedHat®, SuSE®, Ubuntu®, VMware® |
| Target Applications | AI / HPC / Virtualization / Cloud Computing / Streaming Media |
