Description

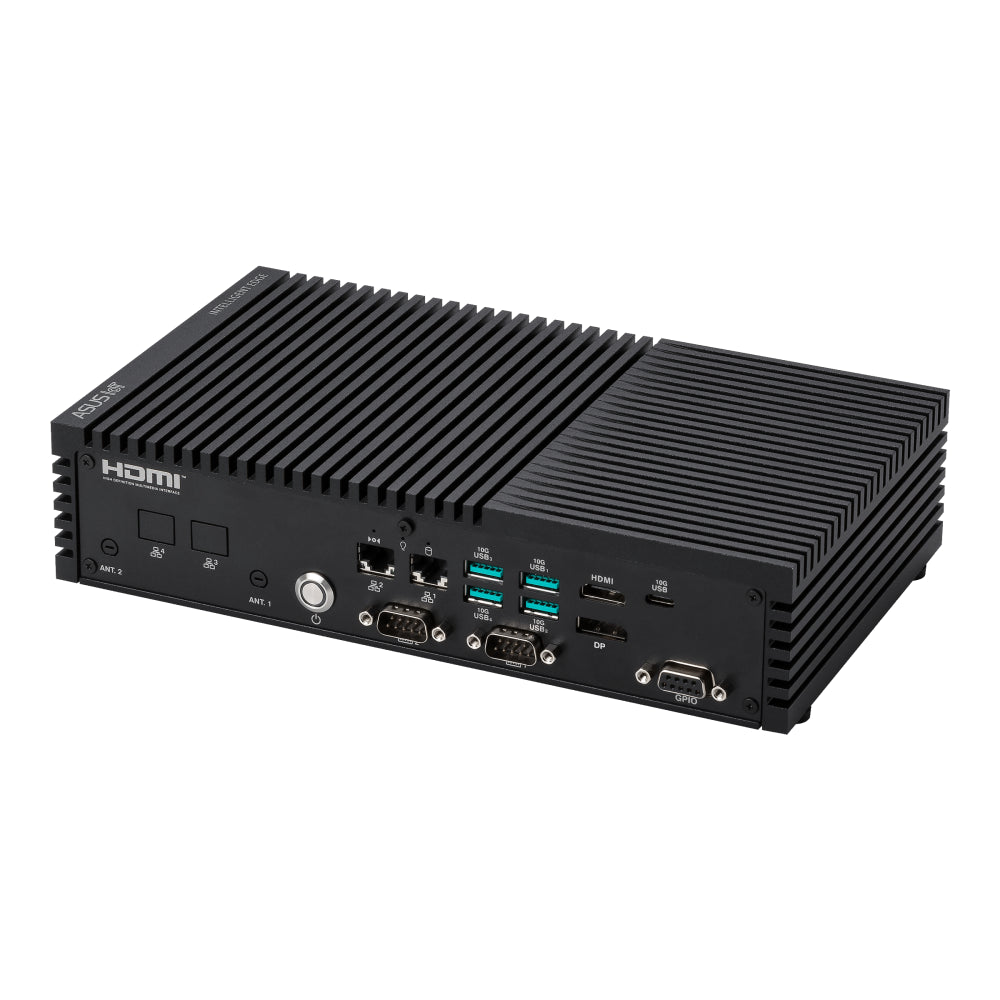

The ASUS PE2200U Rugged Edge System is an industrial-grade embedded solution engineered for reliability and performance in demanding environments. Powered by the latest Intel® Core™ Ultra 7/5 U-series processors and supporting up to 64 GB DDR5 memory, it delivers exceptional computing power for edge AI, IoT, and industrial automation applications.

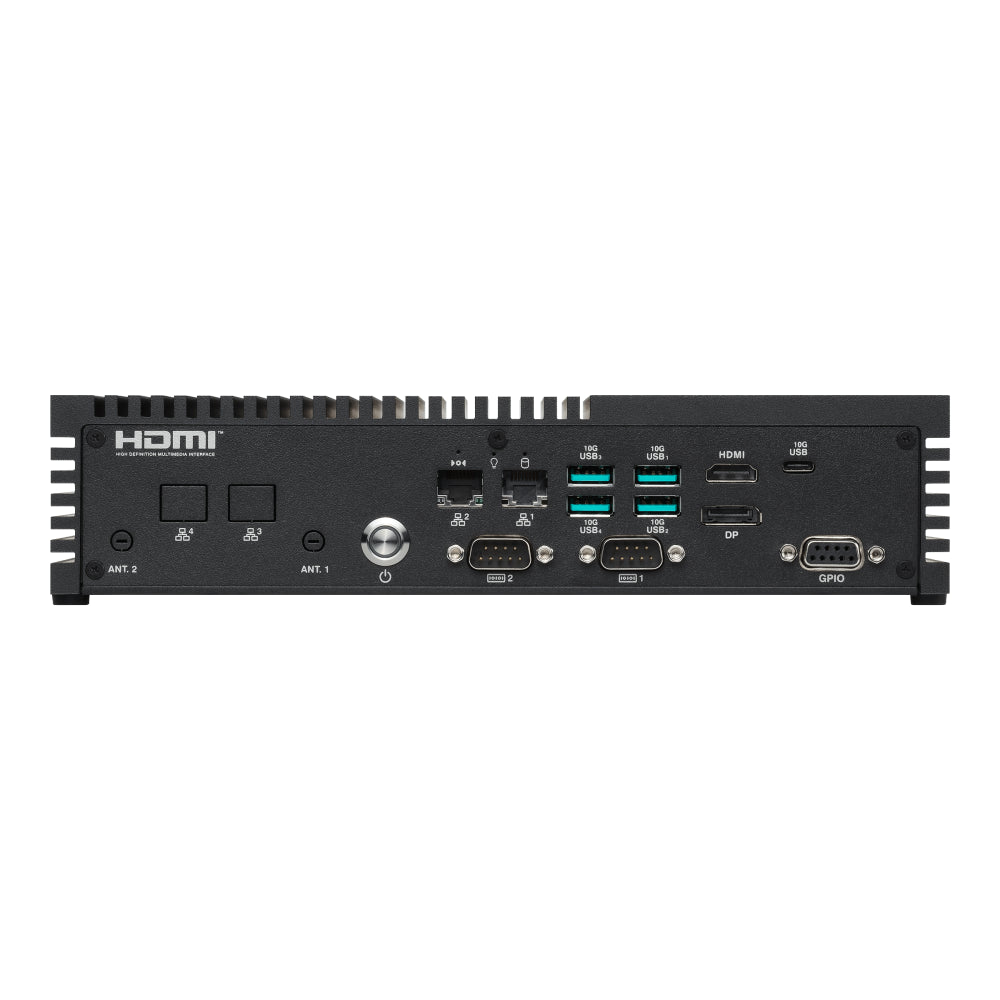

Designed for durability, the PE2200U operates in extreme temperature ranges (-20°C to 60°C) and withstands MIL-STD-810H vibration and shock standards, ensuring stable performance in harsh conditions. With its rich I/O configuration—2 x LAN, 7 x USB, 4 x COM, and flexible expansion via PoE, CAN-bus, and M.2 slots—this system offers broad connectivity for multiple industrial interfaces.
Ideal for general embedded applications, factory automation, and intelligent transportation systems, the ASUS PE2200U combines rugged reliability, scalability, and energy efficiency into a compact edge computing powerhouse.
| Category | Specification |
|---|---|
| Product Type | Rugged Edge System |
| Application | General Embedded |
| CPU Manufacturer | Intel |
| CPU Type | Intel® Core™ Ultra 7-165U / Ultra 5-135U |
| Memory | 2 x SO-DIMM DDR5, up to 64 GB |
| Display Output | 1 x DisplayPort, 1 x HDMI |
| Ethernet | 2 x 1 GbE RJ45 (IEEE 802.3af PSE optional), 1 x 2.5 GbE RJ45 |
| USB Ports | 4 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0 Type-A, 1 x USB 3.2 Gen 2 Type-C |
| COM Ports | 4 x RS-232/422/485 |
| Audio | 1 x Mic-in, 1 x Line-out |
| GPIO/DIO | 8-bit GPIO (4-in / 4-out) |
| Storage | 1 x 2.5" HDD/SSD, 1 x M.2 2280 M-key |
| Expansion Slots | 1 x M.2 2230 E-key, 1 x M.2 3042/3052 B-key |

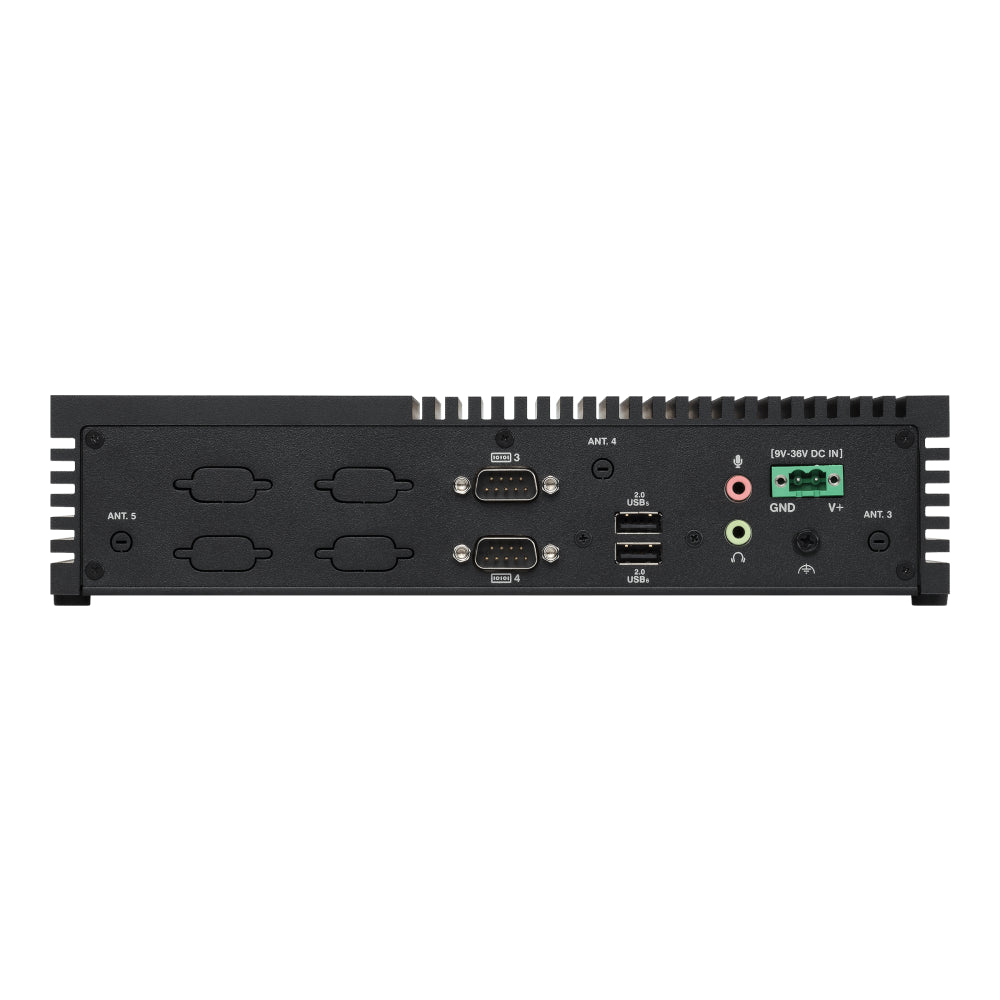

| Power Input | 9 ~ 36V DC-in |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (W x D x H) | 254 x 147 x 57 mm |
| Certifications | FCC, ISED, CE, UKCA, BSMI, CB, CCC |
| Vibration Resistance | MIL-STD 810H Method 514.8, Category 4 (3 Grms, 5–500 Hz, 3 Axes) |
| Shock Resistance | MIL-STD 810H Method 516.8, Procedure I (40 G, 11 ms) |
| Supported OS | Windows® 10 IoT Enterprise (64-bit), Windows® 11 IoT Enterprise (64-bit), Linux (project support) |
