Description

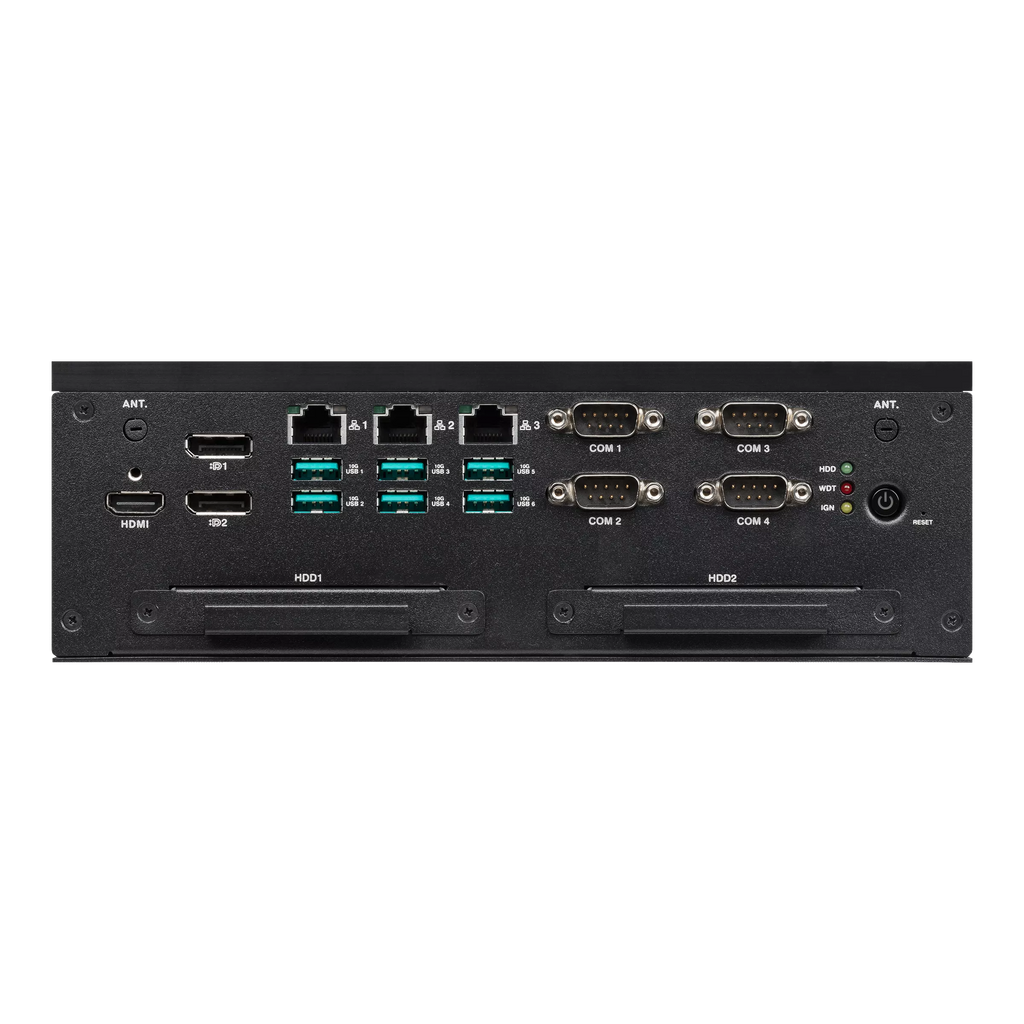

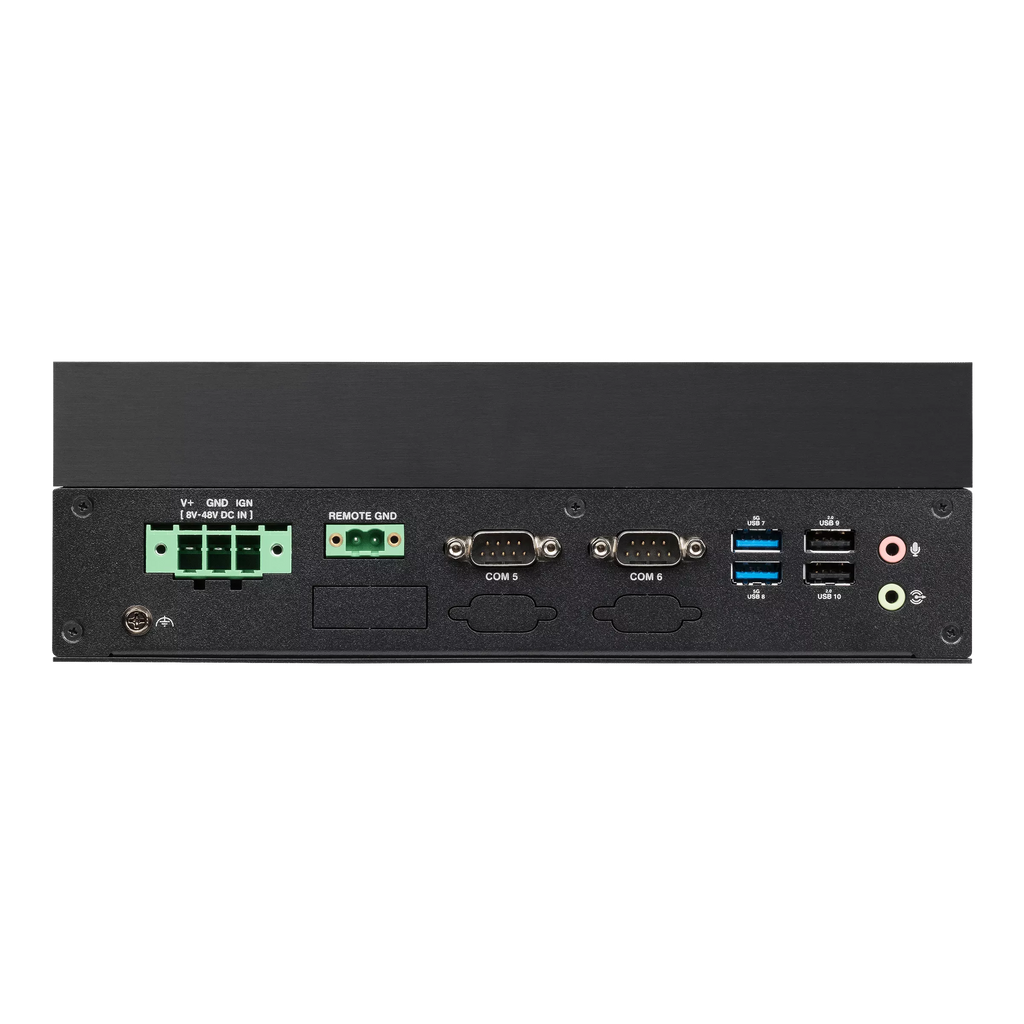

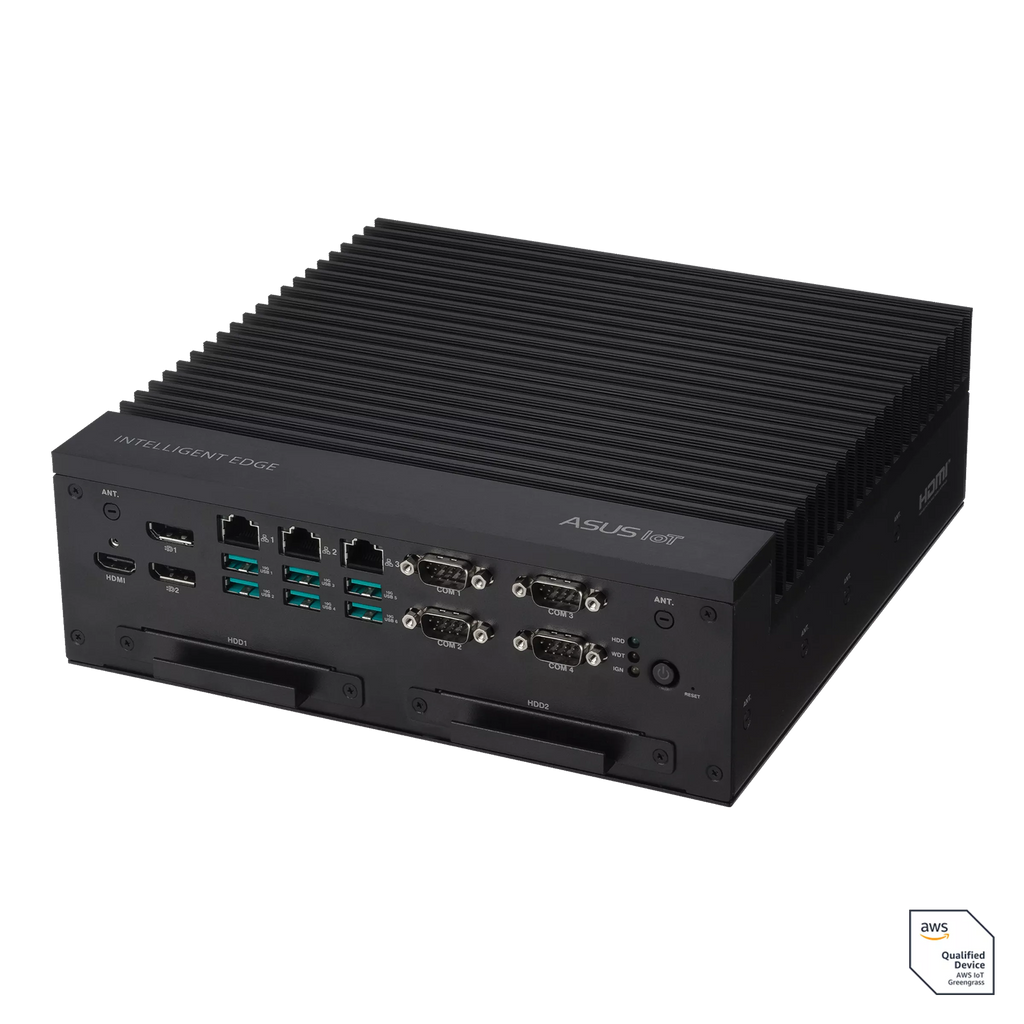

The ASUS IoT PE5100D is a rugged, high-performance edge computer engineered for industrial-grade reliability and real-time processing at the network edge. Powered by the Intel® Core™ i7-13700TE processor (13th Gen, 16 cores, 24 threads) and built on the Intel® R680E chipset, this system delivers uncompromising multitasking capability and next-gen efficiency. It supports DDR5 memory up to 64 GB (4800 MHz) and features dual 2.5-inch hot-swappable HDD trays with RAID 0/1 for enhanced data protection and flexibility.
The PE5100D’s triple 2.5GbE LAN ports, 10 USB ports, and 6 COM interfaces make it ideal for data-intensive industrial, automation, or AIoT applications. It supports 8–48V DC wide-range power input with ignition control, ensuring reliable performance even in demanding edge environments. Additional highlights include TPM security, M.2 expansion for Wi-Fi/5G, and robust thermal management, making the PE5100D a future-proof solution for mission-critical deployments.
| Category | Specification |
|---|---|
| Model | ASUS IoT PE5100D |
| SKU / Part Number | 90AE01H1-M000B0 |
| System Type | Rugged Edge Computer |
| Processor | Intel® Core™ i7-13700TE (16 cores, 24 threads, up to 4.8 GHz) |
| Processor Generation | 13th Gen Intel® Core™ |
| Chipset | Intel® R680E |
| Cache Memory | 30 MB Intel® Smart Cache |
| Memory Type | DDR5 SO-DIMM 240-pin |
| Memory Speed | 4800 MHz |
| Memory Slots | 2 |
| Maximum Memory Capacity | 64 GB |
| Storage Options | Dual 2.5" Hot-Swappable HDD/SSD Trays |
| RAID Support | RAID 0, 1 |
| Graphics Output | 1 × HDMI, 2 × DP++ |
| Ethernet | 3 × 2.5GbE RJ45 |
| USB Ports | 6 × USB 3.2 Gen 2 (10Gbps), 2 × USB 3.2 Gen 1 (5Gbps), 2 × USB 2.0 |
| Serial Ports (COM) | 2 × RS-232/422/485, 4 × RS-232 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Expansion Slots | 1 × M.2 2230 E-key (PCIe x1/USB 2.0), 1 × M.2 3042/3052 B-key (dual nano-SIM, PCIe x1/USB 3.2 Gen1/USB 2.0), 1 × Mini PCIe socket |
| Security | TPM (Trusted Platform Module) |
| Power Input | 8–48 V DC with ignition power control |
| Cooling System | Fanless industrial-grade thermal design |
| Dimensions (W × D × H) | 242 × 241.4 × 79 mm |
| Weight | 5.07 kg |
| Operating Temperature Range | (Varies per configuration; rugged-rated) |
| Mounting Options | Desktop / Wall / DIN Rail (optional) |
| TAA Compliance | No |
| UNSPSC Code | 43211508 |
