Description

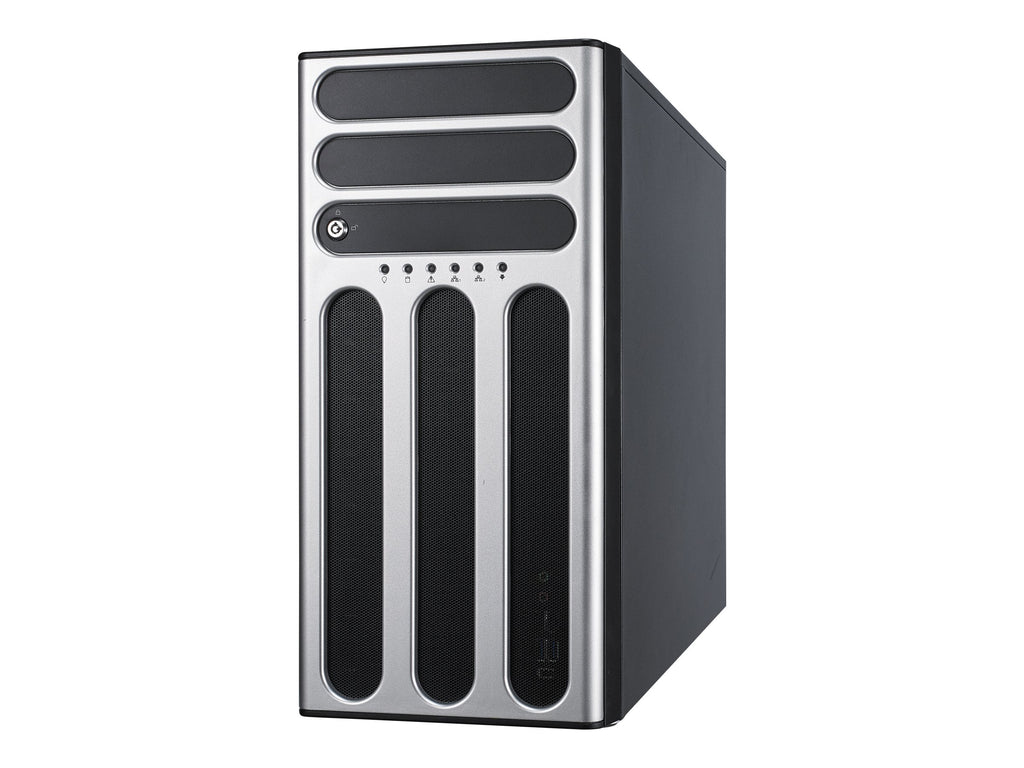

The ASUS TS700-E9-RS8 is a powerful and scalable 5U tower server designed for enterprise workloads, virtualization, and storage-intensive applications. Featuring dual LGA3647 sockets supporting Intel® Xeon® Scalable processors, up to 1.5TB of DDR4 memory, and 8 hot-swap 3.5" SATA bays, it delivers the flexibility and performance needed for modern business infrastructure.
Equipped with an Intel® C621 chipset, dual Intel® I210-AT Gigabit LAN, and an ASPEED AST2500 graphics controller, this server ensures efficient management, smooth visuals, and reliable data throughput. With redundant 1+1 800W 80 PLUS Platinum power supplies, the TS700-E9-RS8 provides enhanced stability and continuous uptime for mission-critical operations.
| Category | Specification |
|---|---|
| Form Factor | Tower (5U) |
| Server Scalability | 2-way |
| Processor Socket | Dual LGA3647-P0 |
| Chipset | Intel® C621 |
| CPU Support | Supports up to 2x Intel® Xeon® Scalable Processors (No CPU installed) |
| Memory Type | DDR4 SDRAM (Registered, Load-Reduced, 3DS LRDIMM) |
| Memory Slots | 12 DIMM slots (288-pin) |
| Max Memory Capacity | Up to 1536 GB |
| Storage Bays | 8x Hot-swap 3.5" SATA bays, 3x External 5.25" bays |
| Storage Interface | SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| Expansion Slots | 7x PCIe 3.0 x16 (full/half-length combinations) |
| M.2 Slots | 1x M.2 Card slot |
| Graphics | ASPEED AST2500 (64 MB) |
| Audio | High Definition Audio, TOSLINK, multiple line-in/out ports |
| Networking | 2x Intel® I210-AT Gigabit Ethernet |
| I/O Interfaces | 4x USB 2.0 (2 front, 2 rear), 6x USB 3.1 Gen 1 (2 front, 4 rear), 1x USB 3.1 Gen 2, 1x USB-C 3.1 Gen 2, PS/2, audio jacks |
| Optical Drive | None |
| Power Supply | 2x 800W 80 PLUS Platinum (1+1 Redundant) |
| Power Input | AC 120/230 V (50/60 Hz) |
| Operating System | None (user-installable OS) |
| Dimensions (W x H x D) | 21.75 x 45.5 x 54.5 cm |
| Weight | 18.33 kg (Net) / 23.12 kg (Shipping) |
| Operating Temperature | 10°C – 35°C |
| Compliant Standards | FCC Class A, C-Tick, BSMI |
| Color | Black/Silver |
| Monitor | Not included |
