Description

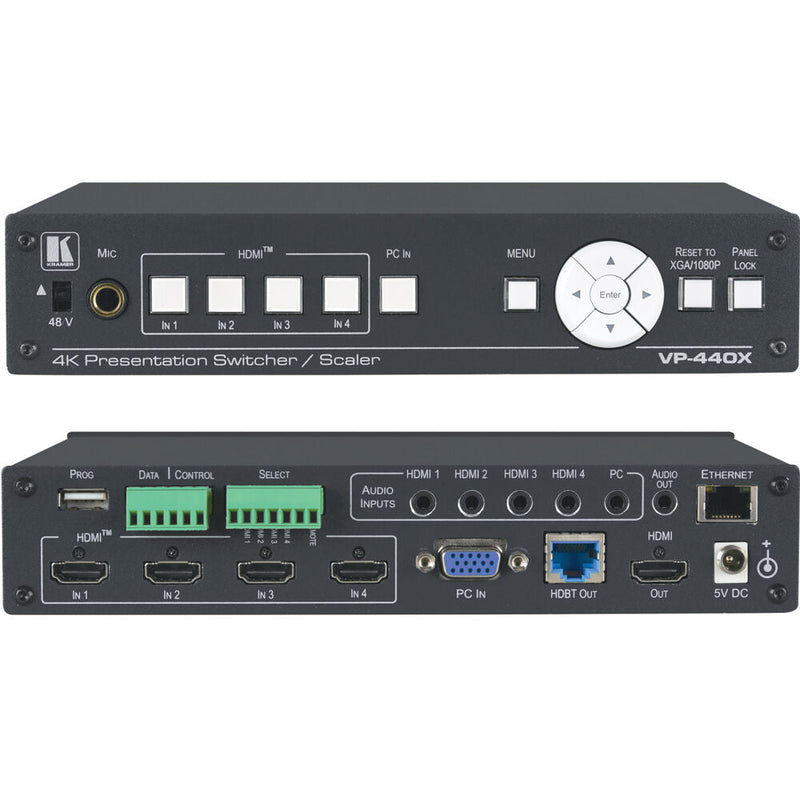

The Kramer VP-440X is a high-performance 18G 4K HDR presentation switcher and scaler designed for professional AV environments that require smooth source switching, flexible connectivity, and robust signal extension. Featuring four HDMI inputs, one VGA input, and simultaneous HDMI + HDBaseT outputs, it delivers seamless video upscaling, downscaling, and cross-scaling up to 4K@60Hz (4:4:4).
Engineered for modern collaboration spaces, the VP-440X integrates powerful audio processing with dedicated analog audio inputs, microphone support, mixing, EQ, and ducking. With HDBaseT extension up to 40m at 4K and 70m at 1080p, plus bidirectional RS-232, Ethernet control, and contact-closure interfaces, it provides a complete, installation-ready switching and scaling solution for classrooms, meeting rooms, auditoriums, and corporate AV systems.
| Category | Details |
|---|---|
| Inputs | 4 HDMI (female), 1 VGA (15-pin HD), 5 stereo analog audio (3.5mm), 1 microphone (6.3mm) |
| Outputs | 1 HDMI (female), 1 HDBaseT (RJ-45), 1 stereo analog audio (3.5mm) |
| Ports | Ethernet (RJ-45), DATA RS-232 (3-pin), CTRL RS-232 (3-pin), 6 contact-closure switches, USB-A (firmware) |
| Max Video Resolution | 4K@60Hz (4:4:4), 18Gbps |
| Standards | HDCP 1.4 & 2.2, HDR10 |
| Supported Input Resolutions (HDMI/VGA) | 480i–4K@60Hz, multiple PC resolutions up to 1920×1200 and 2048×1080 |
| Output Resolutions (HDMI) | Up to 4K@60Hz (4:4:4) |
| Output Resolutions (HDBaseT) | 4K@24/25/30Hz (4:4:4), 4K@50/60Hz (4:2:0) |
| Switching Time | 3 seconds |
| Video Latency | 1–2 frames |
| HDBaseT Extension Range | 40m @ 4K60 4:2:0, 70m @ 1080p |
| Power | 5V DC, 4A; consumption: 18–19W |
| Enclosure | Aluminum, convection-cooled |
| Operating Conditions | 0°C to +40°C; 10–90% non-condensing humidity |
| Dimensions (W×D×H) | 21.46 × 16.30 × 4.36 cm (8.45" × 6.42" × 1.72") |
| Weight | 1.1kg (2.4lbs) |
| Accessories Included | Power adapter, rubber feet |
