Description

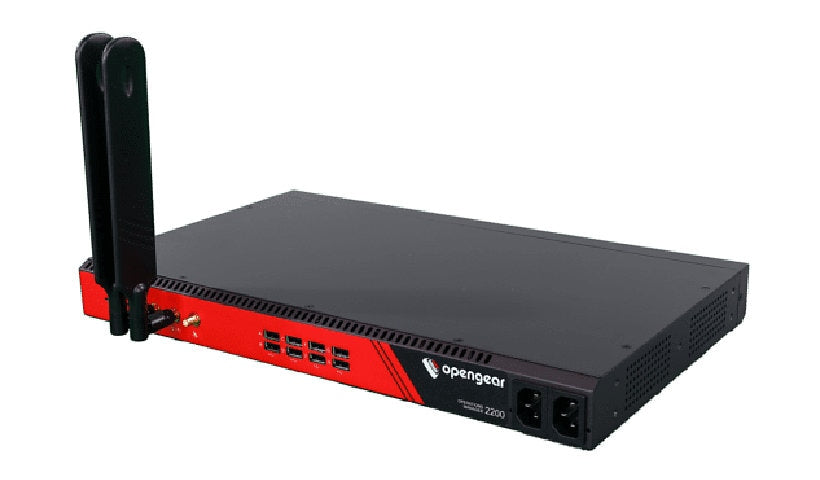

The Opengear OM2232-L Console Server delivers secure, resilient, and efficient out-of-band management for modern IT infrastructure. Built with an AMD GX-412TC processor, 8GB DDR3 RAM, and a reliable 64GB SSD, it ensures fast performance for demanding network tasks.
With 32 serial ports, dual 10GBase-T uplinks, USB 3.0, and LTE Advanced Pro connectivity, this console server provides versatile access and redundancy across enterprise and data center environments. Its dual hot-swappable power supplies safeguard continuous operation, while advanced authentication (Kerberos, RADIUS, TACACS+) strengthens network security.
Supporting Zero-Touch Provisioning (ZTP), Docker containers, and TPM 2.0 secure boot, the OM2232-L simplifies deployment and enables next-gen applications. Compact and rack-mountable in 1U, it is designed for environments where space, reliability, and compliance are critical. With extended temperature tolerance and 4-year warranty support, this console server is built to last in demanding IT environments.
| Category | Details |
|---|---|
| Brand | Opengear |
| Product Line | OM2200 Series |
| Model | OM2232-L-C14 |
| Manufacturer | Opengear |
| Form Factor | 1U Rack-Mountable |
| Processor | AMD GX-412TC, 1.4 GHz |
| Memory | 8 GB DDR3 SDRAM |
| Storage | 64 GB SSD (M.2, SATA-600) |
| Serial Ports | 32 x RS-232 (RJ-45) |
| Other Interfaces | 2 x 10GBase-T/SFP+ RJ-45, 2 x 1000Base-T/SFP, 2 x USB 3.0, 8 x USB 2.0, 1 x console (RJ-45), 1 x micro-USB (console), 1 x modem RJ-11 |
| Network Standards | Ethernet, Fast Ethernet, Gigabit Ethernet, LTE Advanced Pro, OpenVPN, IPSec |
| Authentication | Kerberos, RADIUS, TACACS+ |
| Security | TPM 2.0, Firewall Protection |
| Special Features | Zero-Touch Provisioning, Docker Support, Passive Cooling |
| Cellular Bands | UMTS/HSPA+ B1/B2/B4/B5/B6/B8/B9/B19, LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B18/B19/B20/B26/B28/B29/B30/B32/B41/B42/B43/B46/B48/B66 |
| Power | Dual Internal Power Supplies (C14 connectors) |
| Operating Temp. | 41°F – 122°F (5°C – 50°C) |
| Humidity | 5% – 90% |
| Dimensions (W x D x H) | 17.3" x 10.2" x 1.8" |
| Weight | 7.72 lbs |
| Color | Black/Red |
| Compliance | EN 55032:2015 Class A, EN 61000 standards |
| Included Items | Rack Mount Kit, 2x Power Cables (C14), 2x Cellular Antennas, Antenna Extender, 1x DB-9 to RJ-45 Adapter, Network Cable (6 ft) |
| Warranty | 4-Year Limited Warranty with Technical Support |
