Description

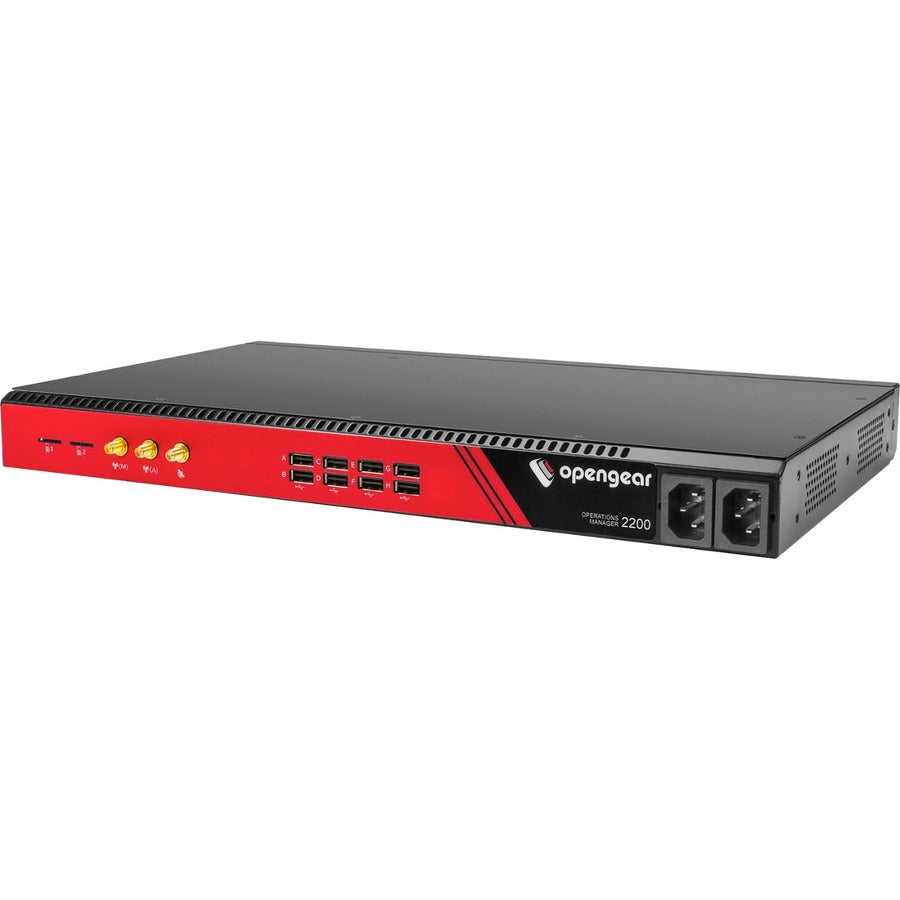

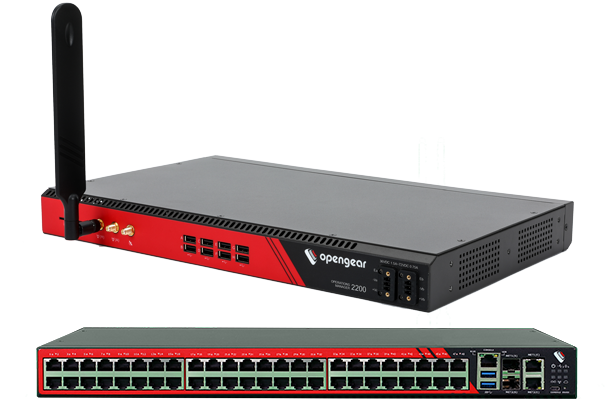

The Opengear OM2248-L Console Server delivers resilient and secure out-of-band management for large enterprise networks and data centers. Featuring 48 serial ports, 8GB DDR3 RAM, and 64GB storage, this 1U rackmount appliance ensures streamlined device connectivity and efficient configuration management.
Powered by an AMD GX-412TC Quad-core processor (1.4GHz) and equipped with LTE/HSPA+ cellular failover, the OM2248-L provides continuous availability even when primary networks go down. Enterprise-grade security features like TPM 2.0 secure boot, advanced authentication methods (RADIUS, TACACS+, LDAP, Kerberos, Active Directory), and firewall protection keep your infrastructure safe.
Designed for space-saving rack deployments, this model includes dual power supplies, proactive monitoring with SNMP, and Docker support for running automation tools. The OM2248-L enables IT teams to remotely remediate, configure, and manage network equipment with maximum reliability and minimal downtime.
| Category | Details |
|---|---|
| Brand | Opengear |
| Product Line | Opengear OM2200 Series |
| Model | OM2248-L-C14 |
| Device Type | Console Server |
| Form Factor | 1U Rack-mountable |
| Processor | AMD GX-412TC, Quad-core, 1.4GHz |
| Memory | 8GB DDR3 SDRAM |
| Storage | 64GB Flash |
| Ports | 48 x RS-232 (RJ-45) |
| Expansion Slots | 2 x Mini SIM card slots (free) |
| Networking | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, LTE/HSPA+ |
| Protocols | IPSec, OpenVPN |
| Remote Management | SNMP, Smart Out-of-Band, Docker support |
| Security Features | TPM 2.0 Secure Boot, AAA, Firewall, Active Directory, RADIUS, TACACS+, LDAP |
| Interfaces Provided | 1 x 1000Base-T RJ-45, 1 x Console RJ-45, 2 x SMA Antenna, 48 x RS-232 RJ-45 |
| Power | Dual Power Supplies (2 installed, 2 supported) |
| Operating Temp. | 41°F to 122°F (5°C to 50°C) |
| Operating Humidity | 5% – 90% |
| MTBF | 100,000 hours |
| Dimensions (W x D x H) | 17.3 x 10.2 x 1.8 in (1U) |
| Weight | 7.72 lbs |
| Color | Black/Red |
| Included Items | Rack mount kit, 2x C13–C14 power cords, DB-9 to RJ-45 adapter, 6ft patch cable |
| Certifications | FCC, IC, PTCRB, GCF, NCC, EN 55032 Class A, IEC/EN60950-1, others |
| Warranty | 4-Year Limited Warranty with Technical Support |
