Description

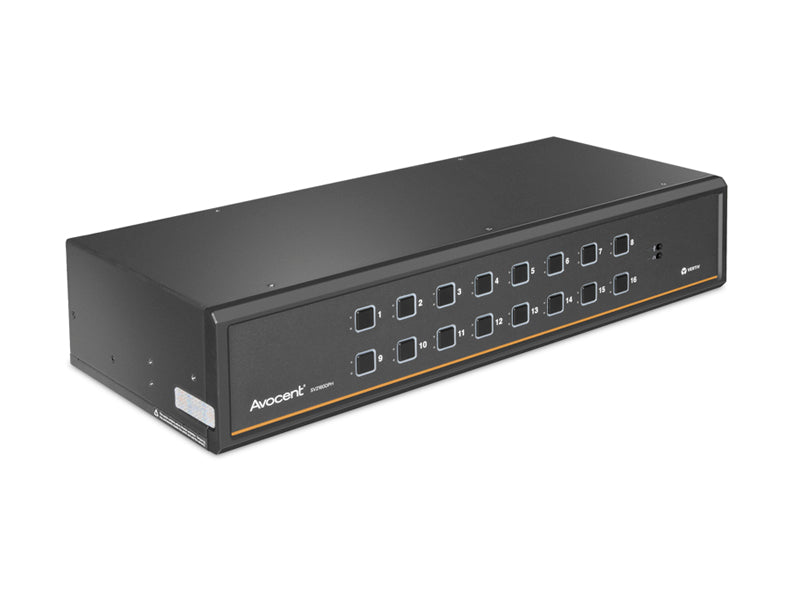

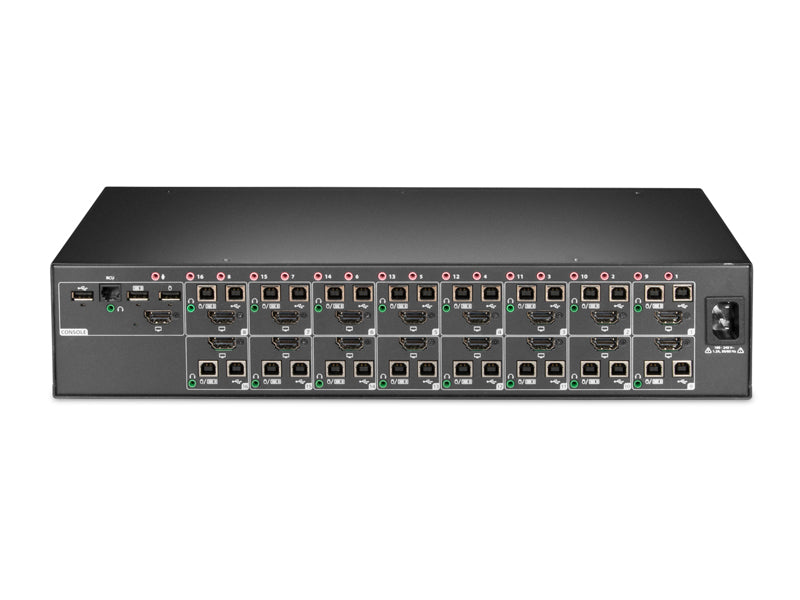

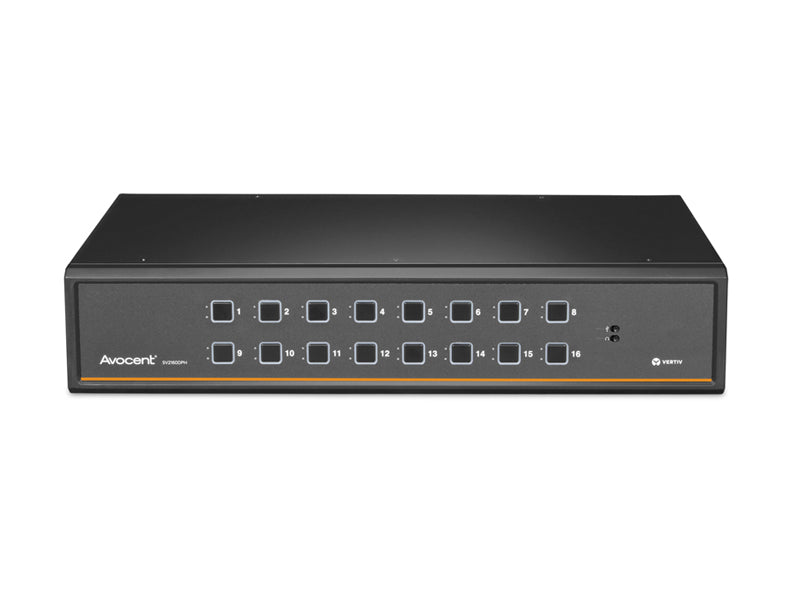

The Vertiv Avocent SV2160DPH SwitchView Desktop KVM Switch delivers fast, reliable control of up to 16 computers using a single keyboard, monitor, and mouse. Designed for secure and efficient desktop environments, this KVM supports multiple video formats (DisplayPort, HDMI) via universal connectors, offering seamless integration with ultra HD multimedia systems.
Key features include Cursor Navigation Switching (CNS) for fluid transitions between systems, managed copy-paste functionality across connected computers, and support for independent audio. With USB 3.0 accessory ports, users can easily transfer data across devices. Ideal for TAA-compliant workplaces, the SV2160DPH simplifies IT administration with zero-delay switching and a compact 1U rack-mountable form factor.
| Specification | Details |
|---|---|
| Brand | Vertiv AVOCENT |
| Series / Product Line | SwitchView 200 Series |
| Model Number | SV2160DPH-400 |
| Form Factor | Desktop / Rack-Mountable (1U) |
| Ports | 16 Ports |
| Video Support | DisplayPort, HDMI |
| Max Resolution | Up to UHD 4K |
| Users Supported (Local/Remote) | 1 Local / 0 Remote |
| USB Ports | 3 x USB |
| Audio | Independent audio switching supported |
| Power Input | 100–240 VAC |
| Compliance | TAA Compliant, RoHS |
| Warranty | 2-Year Limited Warranty |
| Product Dimensions (H x W x D) | 3.5" x 17.2" x 8.8" |
| Weight | Approx. 10.80 lbs |
| Included in Box | SV2160DPH Switch, Power Cord |
| Product Condition | New and Factory Fresh |
| Extended Warranty | Optional |
| Shipping Weight | 1 lb (listed shipping weight) |
