Description

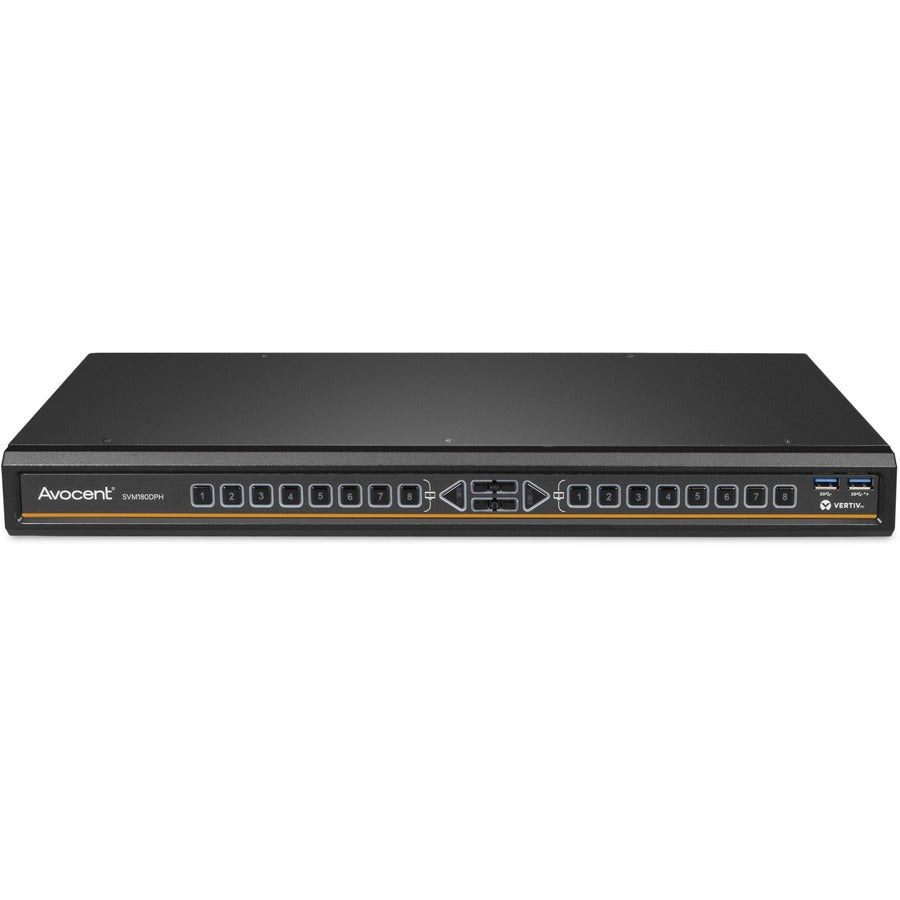

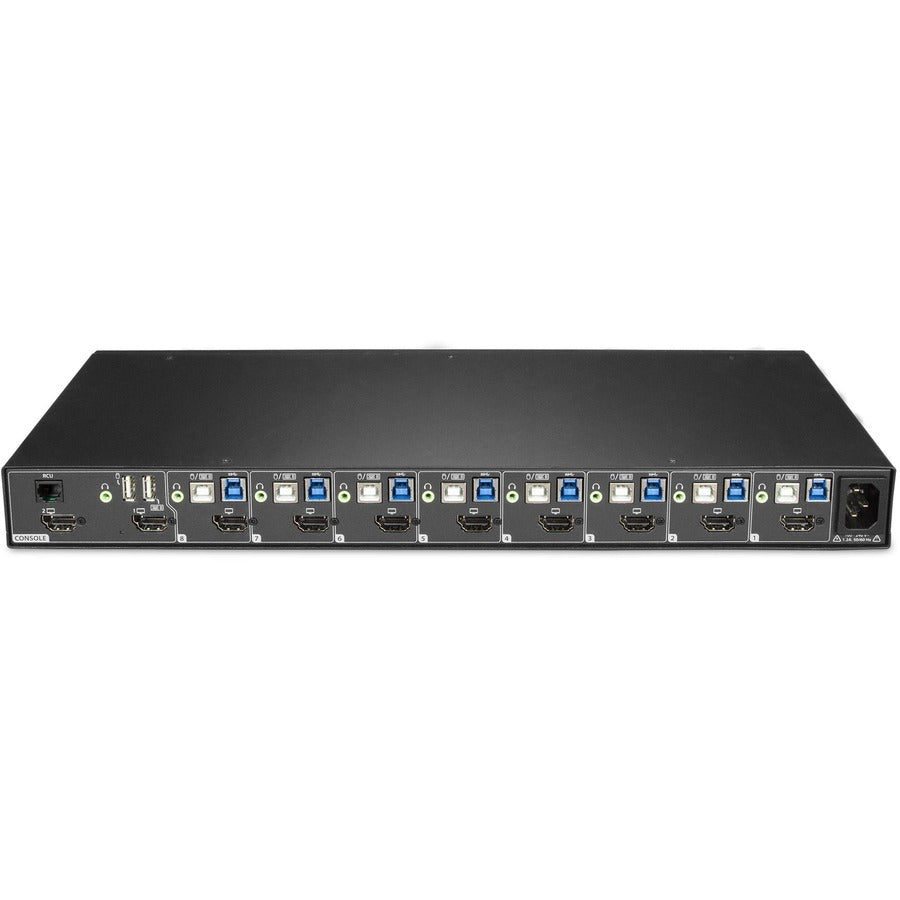

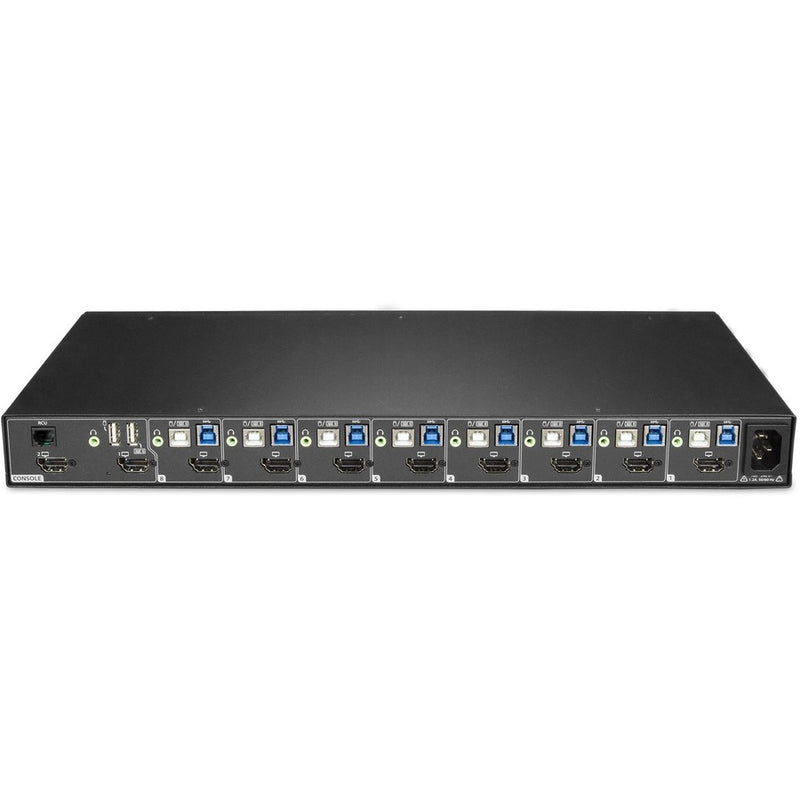

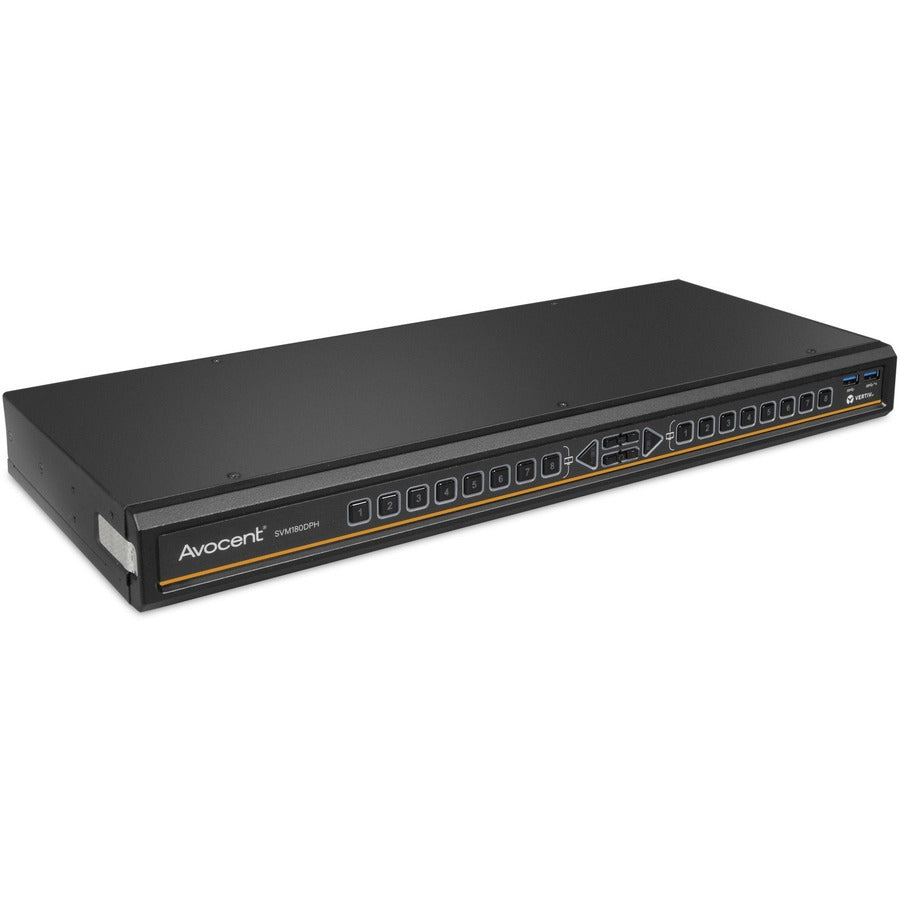

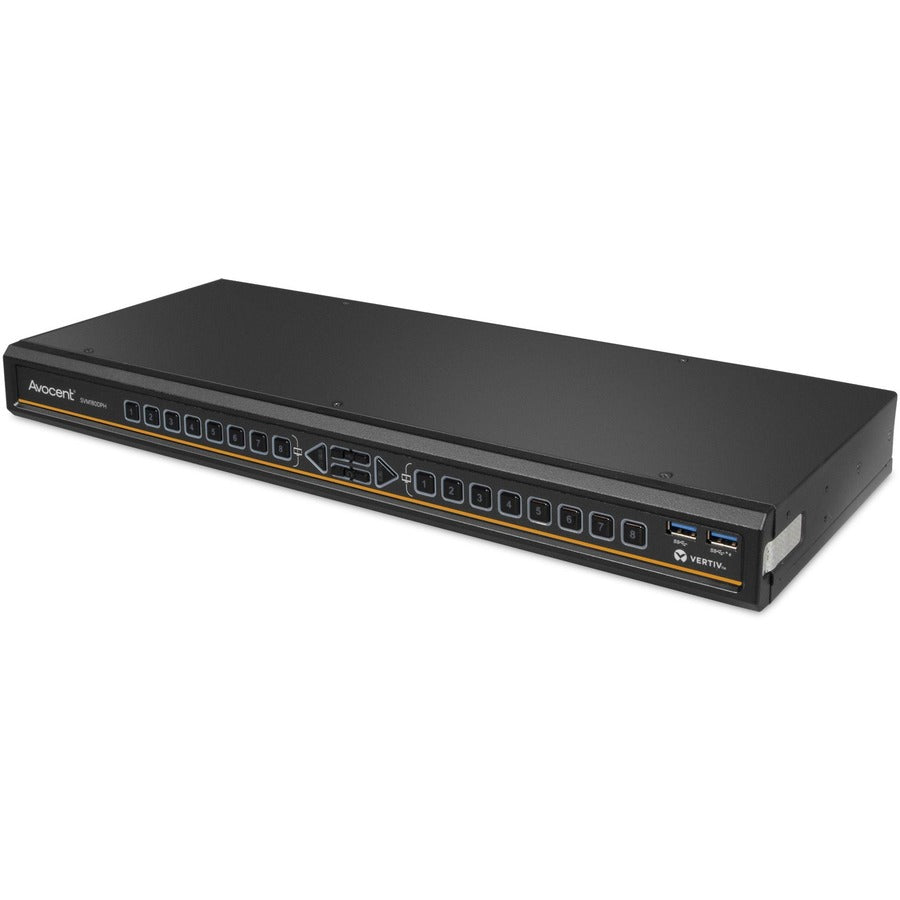

The Vertiv Avocent SwitchView SVM180DPH-400 Desktop Matrix KVM Switch delivers fast, seamless control of up to eight computers using a single keyboard, monitor, and mouse. Featuring Cursor Navigation Switching (CNS), this 8-port desktop matrix switch enables smooth cursor movement between systems and simplifies user interaction in multi-system environments.
Equipped with universal video connectors, it supports DisplayPort, HDMI, and DVI-D interfaces, allowing users to mix and match display types without needing multiple cable variations. With support for up to UHD 4K resolution, it’s ideal for applications requiring visual precision.
The managed copy-and-paste feature enables text and file sharing between connected systems, while multiple USB 3.0 ports allow simultaneous control of peripherals. Built to meet TAA compliance and designed for zero-delay switching, it offers dependable performance for secure and high-efficiency workspaces.
| Key Specs | Details |
|---|---|
| Brand | Vertiv AVOCENT |
| Series | SwitchView 100 |
| Model | SVM180DPH-400 |
| Product Type | Desktop Matrix KVM Switch |
| Number of Computers Supported | 8 |
| Number of Users Supported | 1 Local |
| Video Interface Support | DisplayPort, HDMI (Universal Video Connector) |
| Max Resolution | Up to UHD 4K |
| USB Ports | 4 x USB (for peripheral and switching use) |
| DisplayPorts | 2 |
| HDMI Ports | 2 |
| Power Input Voltage | 100–240V AC |
| Form Factor | Desktop, Rack-Mountable (1U) |
| Dimensions (H x W x D) | 1.7" x 17.3" x 7.3" |
| Weight | 5.4 lbs |
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| Warranty | 2-Year Limited Factory Warranty |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 1 lb |
| Extended Warranty Option | Available |
| Environmentally Friendly | Yes |
