Description

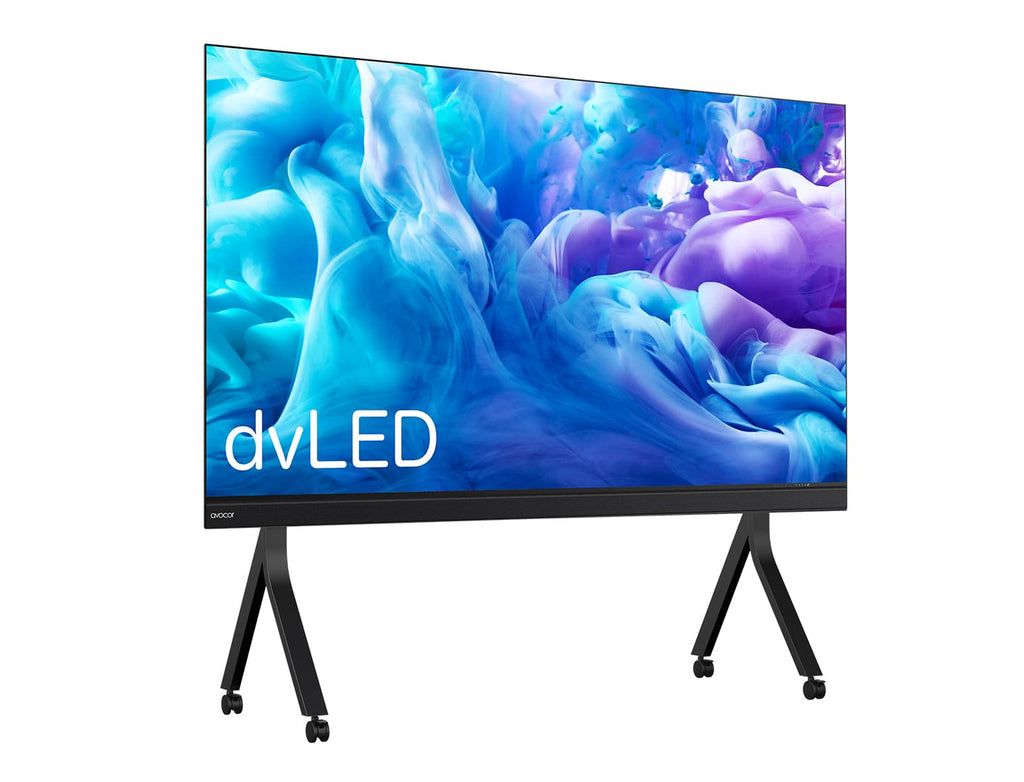

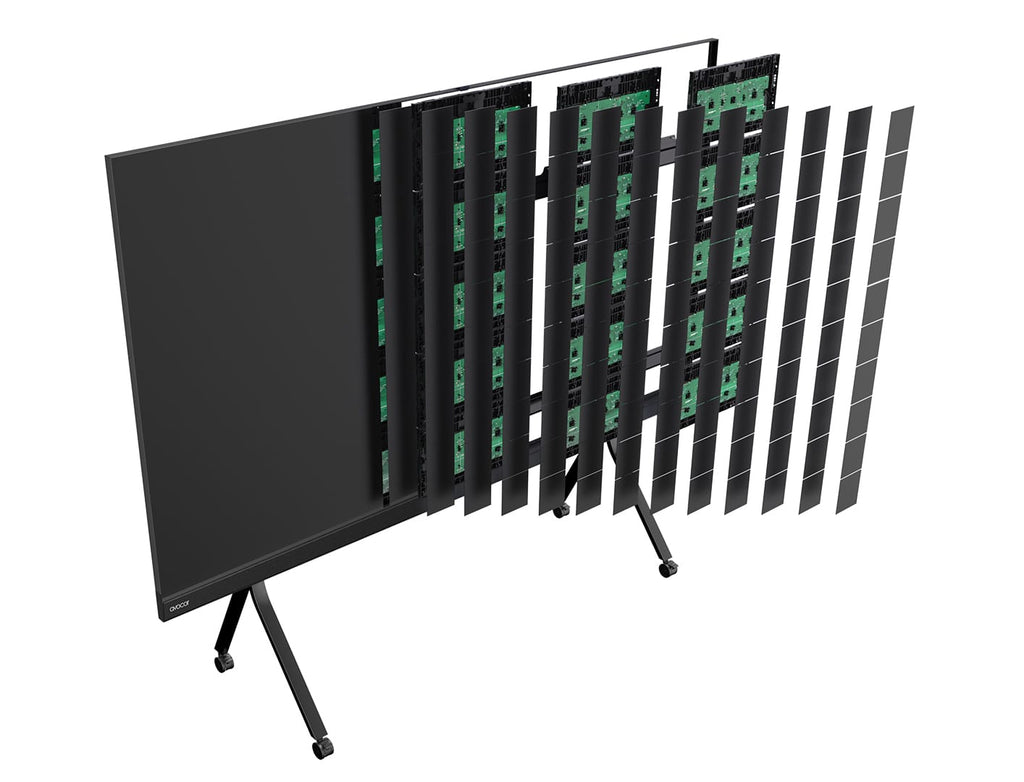

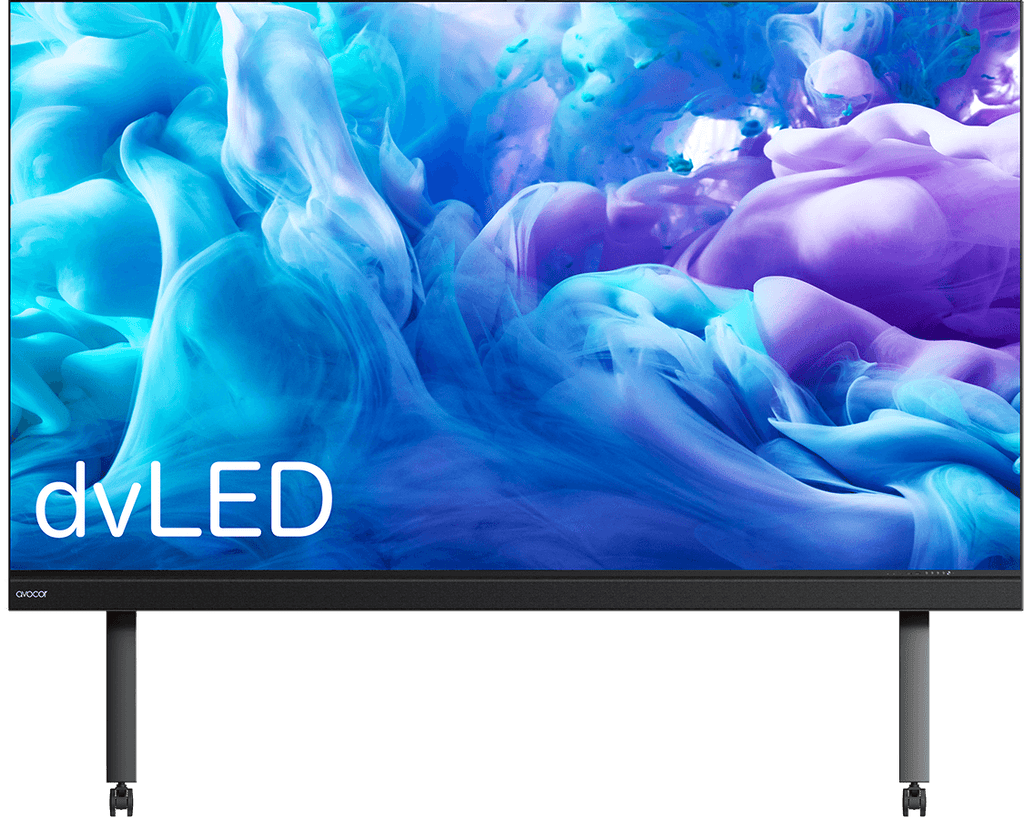

The Avocor AVX-1320 is a premium 132" All-in-One dvLED video wall designed to captivate in corporate, retail, and education environments. With its sleek ultra-wide format, 1.27mm fine pixel pitch, and 2400 × 1080 Full HD resolution, it delivers stunningly sharp and vibrant visuals. The tiled wall design ensures easy installation, while the lightweight die-cast magnesium cabinets and front service access simplify maintenance.
Featuring up to 500 cd/m² brightness, 6500:1 contrast ratio, and a wide 170° viewing angle, the AVX-1320 provides consistently clear and dynamic images even in bright spaces. Integrated 2 × 30W speakers, multiple HDMI and USB connectivity options, and built-in Wi-Fi make it a complete solution for impactful presentations and digital signage. With a lifetime of over 100,000 hours, this display is built for reliability and long-term performance.
Ideal for boardrooms, lecture halls, retail showrooms, and event venues, the AVX-1320 transforms any space into an engaging, professional experience.
| Category | Specification |
|---|---|
| Display Size | 132" |
| Pixel Pitch | 1.27mm |
| Resolution | 2400 × 1080 (Full HD) |
| Cabinets per Screen | 5 × 4 (20) |
| Dimensions (W × H × D) | 3064 × 1489 × 31 mm (120.6" × 58.6" × 1.2") |
| Screen Weight (Net) | 108 kg / 238 lbs |
| Recommended Viewing Distance | >2.5m |
| Cabinet Material | Die-cast Magnesium |
| Service Access | Front |
| Installation Options | Wall mount, optional mobile stand |
| Max Brightness | Up to 500 cd/m² |
| Contrast Ratio | 6500:1 |
| Viewing Angle | 170° (H/V) |
| Brightness Uniformity | 98% |
| Processing Depth | 16-bit |
| Connectivity – Front | 1 × USB-C (no PD), 1 × USB-A 3.0, 1 × USB-A 2.0 |
| Connectivity – Bottom | 1 × HDMI 2.0 (HDCP 2.2), 1 × 3.5mm Aux |
| Internal Inputs | 2 × HDMI 2.0 (HDCP 2.2) |
| Control | RS-232, LAN (RJ45) |
| Audio Output | Optical (SPDIF) |
| Speakers | 2 × 30W forward facing |
| Wi-Fi | Yes |
| Max Power Consumption | 1.84 kW |
| Average Power Use | 0.63 kW |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Standby Power | ≤0.5W |
| Refresh Rate | 3840 Hz |
| Lifetime | ≥100,000 hours (half brightness) |
| Operating Temp. | 10°C – 40°C |
| Operating Humidity | 10%–80% RH (non-condensing) |
| In the Box | Remote control, removal tool, wall mount, power cords (NA, UK, EU, AU), spare LED modules |
