Description

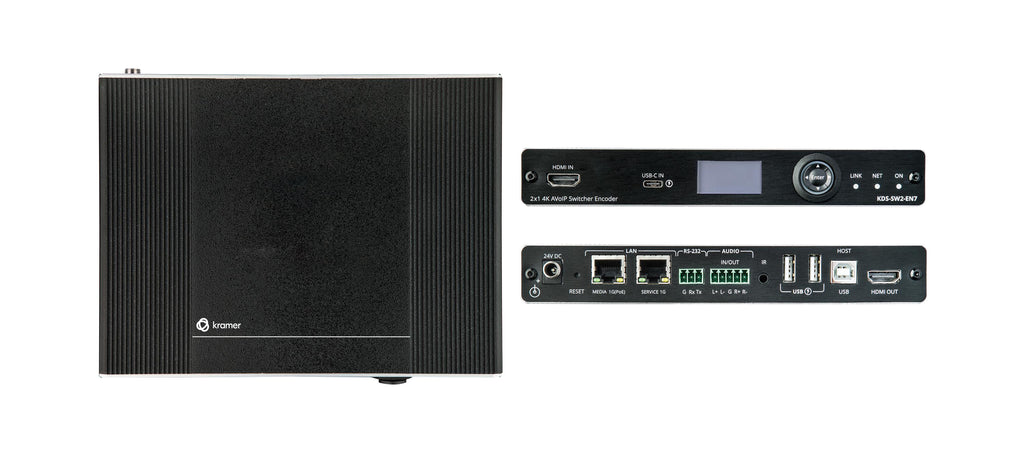

The Kramer KDS-SW2-EN7 is a high-performance 4K AVoIP auto-switch encoder designed for scalable, enterprise-grade AV distribution. With HDMI and USB-C inputs, laptop charging capabilities, and powerful KVM/KM integration, it delivers a streamlined and intuitive user experience in demanding environments such as control rooms, command centers, education facilities, and corporate networks.
Engineered for large-scale deployments, the KDS-SW2-EN7 supports up to 999 channels, ultra-fast 1-second switching, and visually lossless 4K@30 4:4:4 encoding, ensuring exceptional video fidelity with minimal latency. Its robust feature set includes an LCD configuration screen, advanced security protocols, comprehensive API control, and seamless compatibility with Kramer Control, Netgear M4250 AVoIP switches, and KDS-USB2 peripherals.
Built to power modern AV workflows, this encoder combines efficiency, scalability, and secure performance, making it an ideal solution for any professional AVoIP ecosystem.
| Category | Details |
|---|---|
| Inputs | 1 HDMI (female), 1 USB-C with charging |
| Output | 1 HDMI (female) |
| Ports | 2 Ethernet (RJ-45), Balanced Audio (5-pin terminal block), RS-232 (3-pin), IR (3.5mm TRS), USB Host (USB-B), 2 USB Device (USB-A) |
| USB Features | Integrated 2-layer USB hubs (when paired with KDS-DEC7) |
| Network | Multicast UDP, IGMP snooping non-blocking L2, Unicast UDP |
| Bitrate | Peak 850 Mbps; 4K avg 350 Mbps; 1080p avg 250 Mbps |
| Video Compression | Visually lossless proprietary codec; JPEG2K-based proprietary stream |
| Max Input/Output Resolution | 4K@30Hz 4:4:4 |
| HDR Support | HDR10 up to 4K30 4:2:2 12-bit |
| Latency | 33 ms end-to-end |
| Switching Time | 1 second |
| Scaler | Yes |
| Supported Video Resolutions | 4096×2160@30, 3840×2160@60, 1920×1080@60, 1280×720@60, and many more |
| Audio Formats | LPCM up to 7.1/24-bit/192kHz, Dolby Atmos/TrueHD/Digital Plus/5.1/EX/Surround, DTS-HD MA/ES/Discrete 6.1/5.1 |
| Security | HTTPS, 802.1x, OWASP-10, AES-128 encrypted AV streaming |
| User Interface | LINK/NET/ON LEDs, front LCD display, web UI, P3K API, restart/reset button |
| Power | PoE 37–57V; Typical 7.14W; Full USB load 12.42W; Full load w/ USB-C charging 75.75W; Optional 24V DC/5A PSU |
| Environmental | Operating: 0–45°C; Storage: –20–70°C; Humidity: 10–90% non-condensing |
| Dimensions (W × D × H) | 18.90 × 14.50 × 2.76 cm (7.44" × 5.71" × 1.09") |
| Weight | Product: 0.7 kg (1.5 lbs) • Shipping: 0.9 kg (2.1 lbs) |
| Shipping Size | 31.20 × 18.00 × 7.60 cm (12.28" × 7.09" × 2.99") |
