Description

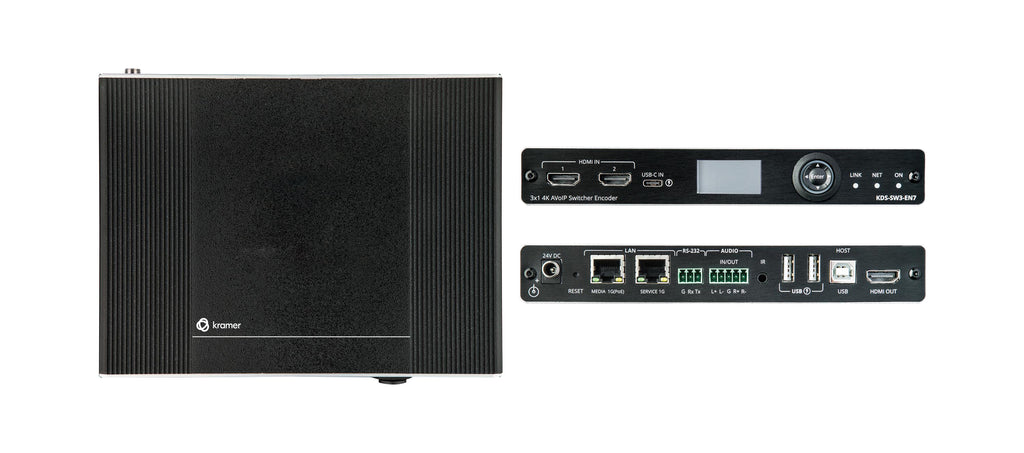

The Kramer KDS-SW3-EN7 is an advanced 4K AVoIP encoder switcher engineered for high-performance streaming, ultra-fast source switching, and seamless AV transport over standard 1GbE networks. Built for modern AV infrastructures, it supports unicast and multicast streaming, Dante digital audio, USB/KVM, and comprehensive control options, making it ideal for corporate, education, command centers, digital signage, and professional AV deployments.
Featuring instant 1-second switching, visually lossless 4K streaming, and 33ms end-to-end latency, the KDS-SW3-EN7 delivers high-quality video performance while ensuring smooth user interaction. The unit offers flexible audio embedding/de-embedding for both analog and Dante digital audio, plus USB-C and HDMI source options. With PoE capability, front-panel LCD navigation, secure HTTPS operation, and plug-and-play compatibility with Netgear M4250 switches and Kramer Control, this encoder simplifies integration without compromising capability.
| Category | Details |
|---|---|
| Inputs | 2 HDMI (female), 1 USB-C |
| Outputs | 1 HDMI (female) |
| Ports | 2× RJ-45 Ethernet, Balanced Audio (5-pin), RS-232 (3-pin), IR (3.5mm), USB-B Host, 2× USB-A Device |
| Network | 1GbE; Unicast & Multicast (UDP, IGMP snooping) |
| Bitrate | Peak 850Mbps; 4K avg 350Mbps; 1080p avg 250Mbps |
| Video Compression | Visually lossless proprietary codec |
| Max Input/Output Resolution | 4K@30Hz (4:4:4) |
| Max End-to-End Resolution | 4K@30Hz (4:4:4) |
| Latency | 33 ms |
| Switching Time | 1 second |
| Scaler | Yes |
| Supported Resolutions | 4096×2160@30Hz, 3840×2160@60Hz, 1920×1080@60Hz, 1280×720@60Hz, and many more |
| Audio Formats | LPCM up to 7.1/24-bit/192kHz, Dolby Atmos/TrueHD/Digital formats, DTS-HD/DTS 5.1 |
| Dante Digital Audio | 2-in or 2-out mono channels |
| Security | HTTPS, 802.1x, AES-128 encrypted AV streaming |
| Control Options | Embedded web UI, P3K API, front-panel buttons, LCD display |
| Power | PoE (37–57V); optional PSU: 24V DC 5A |
| Typical Power Consumption | 9.21W; AV+USB 14.58W; Full load (USB-C charging) 77.93W |
| Environmental | Operating: 0–45°C; Storage: –20–70°C; Humidity: 10–90% non-condensing |
| Regulatory Compliance | CE, FCC, RoHS, WEEE |
| Enclosure | Aluminum, convection-cooled |
| Product Dimensions | 18.90 × 14.50 × 2.76 cm (7.44" × 5.71" × 1.09") |
| Product Weight | 0.7 kg (1.5 lbs) |
| Shipping Dimensions / Weight | 31.20 × 18.00 × 7.60 cm; 0.9 kg (2.1 lbs) |
