Description

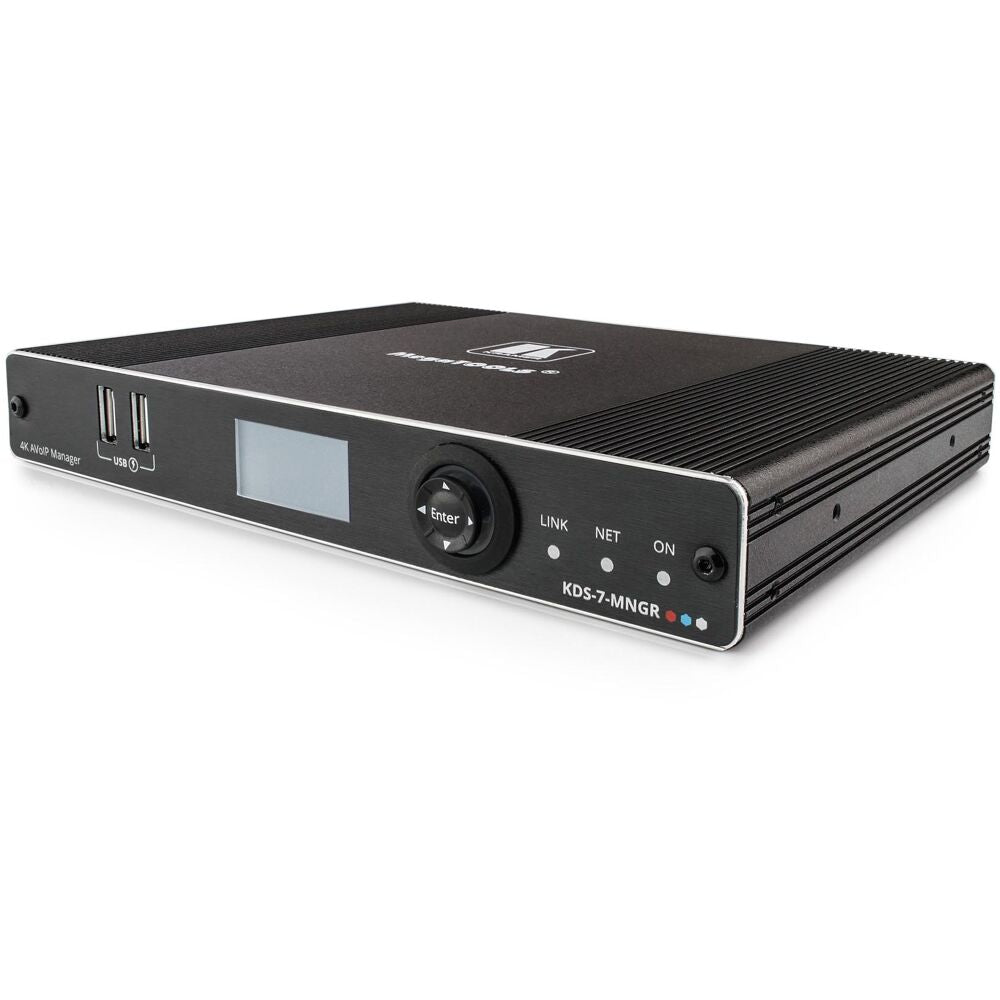

The Kramer KDS-7-MNGR is a dedicated AVoIP management appliance engineered to simplify, streamline, and secure KDS-7 series deployments across shared or isolated network environments. Once installed on the same LAN as KDS-7 encoders and decoders, the unit automatically discovers all devices and provides a clear, centralized interface for configuring routing, video walls, KVM functionality, device groups, presets, and more.
Designed for scalability, the KDS-7-MNGR supports management of up to 120 encoder/decoder units, making it ideal for enterprise, education, command-and-control, and multi-display signage applications. Its built-in web interface and local HDMI output with USB keyboard/mouse support ensure fast access for administrators. Robust enterprise-grade security—featuring HTTPS/TLS and 802.1x—ensures protected operation across IT-sensitive networks.
With seamless integration into Netgear M4250 AVoIP switches, Kramer Control, KDS-USB2, and other ecosystem components, the KDS-7-MNGR accelerates planning, configuration, and daily operations while remaining cost-effective and plug-and-play from day one.
| Category | Specification |
|---|---|
| Outputs | 1 HDMI (female) |
| Ports | 1 Ethernet (RJ45); 2 USB-B |

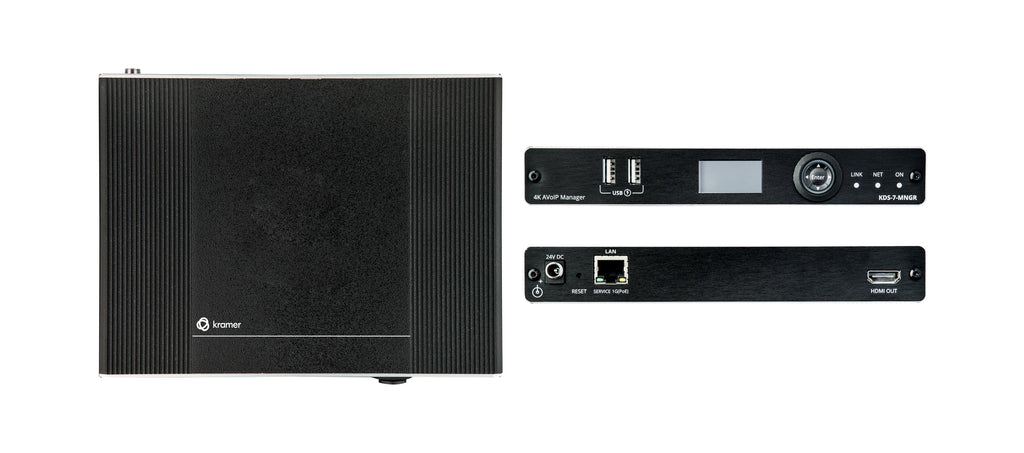

| User Interface | LINK, NET, ON LEDs; front-panel LCD Display |
| Controls | Front navigation button; embedded web UI; P3K API via Ethernet |
| Rear Panel | Restart & factory reset buttons |
| Power | PoE 37V–57V; Optional 24V DC 5A supply |
| Typical Power Consumption | 2.33W |
| AV + USB Power Consumption | 7.70W |
| Operating Temperature | 0°C to +45°C (32°F to +113°F), 10–90% non-condensing |
| Storage Temperature | –20°C to +70°C (–4°F to +158°F), 10–90% non-condensing |
| Regulatory Compliance | Safety: CE, FCC; Environmental: RoHS, WEEE |
| Enclosure | Mega Tool Deep, Aluminum; convection cooled |
| Product Dimensions (W x D x H) | 18.90 × 14.50 × 2.76 cm (7.44" × 5.71" × 1.09") |
| Product Weight | 0.7 kg (1.5 lbs) approx |
| Shipping Dimensions | 31.20 × 18.00 × 7.60 cm (12.28" × 7.09" × 2.99") |
| Shipping Weight | 0.9 kg (2.1 lbs) approx |
| Available Configurations | KDS-7-MNGR; KDS-7-MNGR-AA (TAA compliant) |
