Description
The Shure Axient Digital AD4D-DC Dual-Channel Wireless Receiver is engineered for mission-critical audio environments where reliability, flexibility, and pristine sound quality are non-negotiable. Designed for professional touring, broadcast, and large-scale productions, this receiver delivers transparent digital audio with ultra-low latency and exceptional RF performance even in congested spectrum conditions.
Equipped with a DC power module, the AD4D-DC enables redundant power configurations and remote deployment scenarios, ensuring uninterrupted operation in demanding setups. Its true digital diversity architecture enhances signal stability and minimizes dropouts, while wide tuning capability maximizes spectrum efficiency across complex RF environments.
Advanced networking and control features integrate seamlessly with Shure Wireless Workbench and ShurePlus Channels, providing real-time monitoring, frequency coordination, and system management. With AES3, AES67, and Dante audio networking support, the AD4D-DC ensures flexible signal routing and compatibility with modern AV infrastructures.
Built for scalability and precision, the AD4D-DC is fully compatible with all Axient Digital transmitters, making it a powerful foundation for high-performance wireless audio systems.
| Specification | Details |
|---|---|
| Receiver Type | Dual-Channel Digital Wireless Receiver |
| Frequency Range | 470β636 MHz (Band A) |
| RF Tuning Range | Up to 184 MHz (region dependent) |
| Diversity Type | True Digital Diversity per Channel |
| Audio Output | XLR (Balanced), 1/4" (Balanced), AES3 Digital |
| Network Audio | Dante, AES67 |
| Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | Up to 130 dB (digital output) |
| Total Harmonic Distortion | <0.01% |
| Latency | As low as 2.08 ms |
| Gain Adjustment Range | -18 dB to +42 dB |
| Networking | 10/100/1000 Mbps Ethernet |
| Control Software | Wireless Workbench, ShurePlus Channels |
| RF Input | BNC, 50 Ξ© |
| Cascade Output | BNC for additional receiver linking |

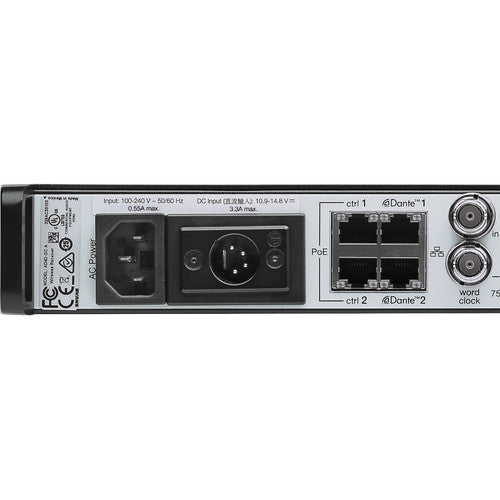

| DC Power Input | 10.9β14.8 V DC |
| Max DC Input Current | 3.3 A |
| Power Protection | Overvoltage, undervoltage, reverse polarity |
| Dimensions (H x W x D) | 1.7 x 19.0 x 13.1 in |
| Weight | 10.1 lb |
| Construction | Steel and extruded aluminum housing |
| Operating Temperature | -18Β°C to 50Β°C |
| Compatibility | All Shure Axient Digital transmitters |
