Description

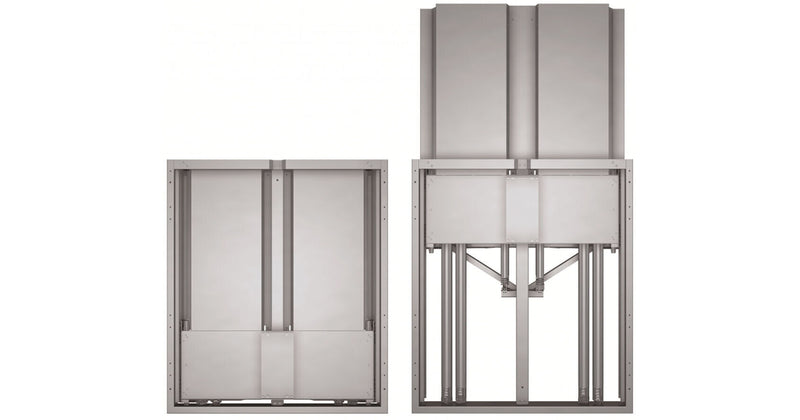

The BalanceBox 650 is a manually height-adjustable wall mount system designed for effortless vertical movement of large interactive displays and touchscreens up to 86 inches. Using a patented spring-balance mechanism, the mount enables smooth, counterbalanced motion—no motor or power is required.
This model includes the Universal VESA Bracket (200 × 200 mm to 800 × 600 mm) and supports display assemblies weighing 148 lbs to 279 lbs (67 – 127 kg), making it ideal for education, corporate, and collaborative environments. The steel frame and powder-coated covers ensure long-term durability and a clean, professional look.
Key Features & Benefits
-
Effortless manual height adjustment—no electricity required
-
Supports large 86" interactive or commercial displays
-
Smooth, balanced motion with patented spring system
-
Powder-coated steel frame for strength and corrosion resistance
-
Includes wall frame, application frame covers, and VESA mount set
-
CE and UL-recognized design for safety and reliability
| Specification | Details |
|---|---|
| Product Name | BalanceBox 650 Height Adjustable Wall Mount + VESA Set |
| Model / SKU | QBB650-130 |
| Manufacturer Part No. | 484A08 + 481A70 |
| Display Compatibility | Up to 86 in interactive or commercial displays |
| Supported Weight Range | 148 – 279 lbs (67 – 127 kg) |
| Adjustment Type | Manual spring balance height adjustment |
| Adjustment Range | 25.6 in (650 mm) travel distance |
| Material | Steel frame and covers (painted RAL 7037 gray) |
| Finish | Powder-coated, corrosion-resistant |
| Certifications | CE / UL (UL-EN-ISO 60950 recognized) |

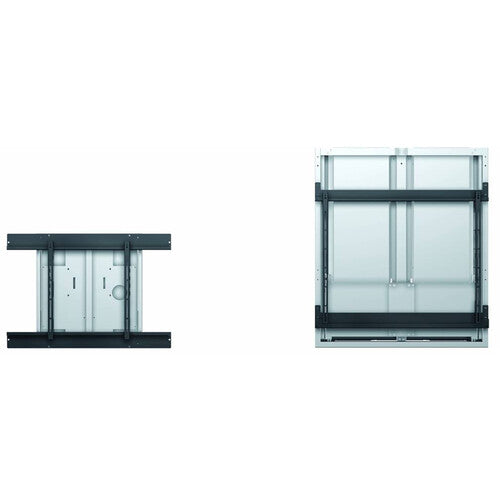

| Mounting Interface | Universal VESA 200 × 200 mm – 800 × 600 mm |
| Product Dimensions (H × W × D) | 1058.5 × 924.5 × 160.5 mm (41.7 × 36.4 × 6.3 in) |
| Shipping Dimensions (H × W × D) | 1155 × 1005 × 240 mm (45.5 × 39.6 × 9.4 in) |
| Product Weight | 58 kg (127.6 lbs) |
| Shipping Weight | 75 kg (165 lbs) |
| Color | Gray (RAL 7037) |
| Included Components | Wall frame, application frame cover, mounting bracket, fasteners, multilingual manual, VESA set |
| Mounting Hardware Required | 10 mm fasteners & wall plugs (not included) |
| Ideal Use Cases | Education, corporate meeting rooms, interactive workspaces |
