Description

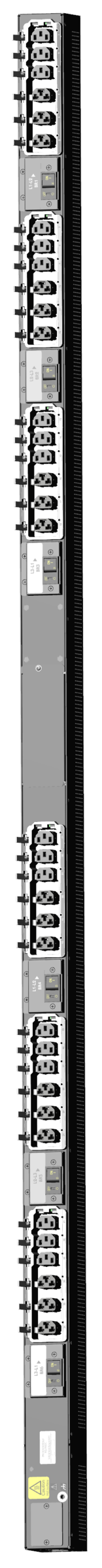

The Server Technology® Basic C3B36RL-DFJE0AT2 PDU delivers reliable and secure power distribution for modern data center environments. Featuring HDOT Cx outlets, this unit supports both C14 and C20 plugs, making it a versatile solution for mixed IT infrastructures. The RamLock™ self-locking mechanism ensures secure plug retention, preventing accidental disconnections.
Designed with branch circuit protection compliant with UL and IEC 62368-1, the PDU offers six 20A trip circuit breakers for maximum safety. Built to withstand high temperatures up to 60 °C, it ensures reliable performance in demanding environments. Flexible mounting options, multiple color-coded circuit designations, and optional smart accessories make this PDU a robust, future-ready choice for power management.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | Basic PDU |
| Model / SKU | C3B36RL-DFJE0AT2 |
| Input Voltage | 208 V |
| Frequency | 50/60 Hz |
| Input Plug Type | CS8365 3P+G 50A |
| Input Current (Rated) | 40 A |
| Input Current (Max) | 50 A |
| Power Capacity | 14.4 kW |
| Outlets | (18) IEC 60320 C13, (18) HDOT Cx hybrid C13/C19 |
| Branch Circuit Protection | 6x UL 489 Compliant 20A Circuit Breakers |
| Dimensions (HxWxD) | 70.0 in x 2.2 in x 2.5 in (1778 mm x 56 mm x 64 mm) |
| Operating Temp. | 0 °C to 60 °C (32 °F to 140 °F) |
| Storage Temp. | -30 °C to 80 °C (-22 °F to 176 °F) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1 (cTUVus Mark) |
| Warranty | 2-Year Limited Parts & Labor (Extended options available) |
| Mounting Options | Standard button mounts; optional brackets available |
| Color Options | Black, White, Red, Green, Blue, Yellow |
| Quiescent Power Draw | < 10W (all configurations) |
| Optional Accessories | Smart sensors, Wi-Fi/KVM dongles, Asset Management strips, Smart Locks |
